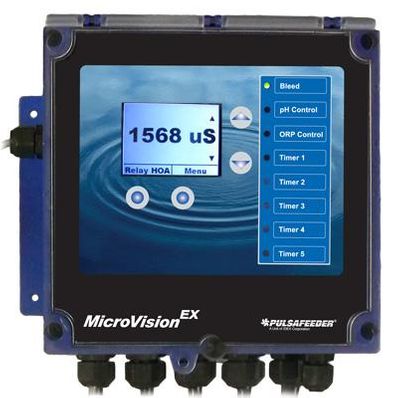

Quantrol MicroVision EX Cooling Tower Controller, Toroidal Probe, Standard Panel, Conductivity Control, 3 Timers Includes controller, shelves, in/out ball valves, y-strainer, inj tees, rails - no pumps - MVECXXXPD-XXX-XXX

MVECXXXPD-XXX-XXX MicroVision EX Cooling Tower Controller, Toroidal Probe, Standard Panel, Conductivity Control, 3 Timers Includes controller, shelves, in/out ball valves, y-strainer, inj tees, rails - no pumps by Quantrol

MicroVision ^EX is a microprocessor-based conductivity, pH, and ORP controller, with the features and functions you need for accurate monitoring and control of cooling tower water that won't break your budget!

Features

• Toroidal conductivity sensor.
• One-point calibration.
• Large easy to read color display.
• Lockable front cover.
• Multiple level security codes.
• Up to 10 digital inputs.
• Optional 4-20 mA analog outputs and inputs.
• Dry contact alarm output.
• Battery backup.
• Optional Make-up conductivity control with a toroidal sensor.
• USB data logging is standard: Up to 2 years of data logging, Upload/Download program settings.
• Upgrades to the Operating System.
• Optional Ethernet interface.

Operating Benefits

• Easy installation.
• Easy programming based on MicroVision simplicity.
• Toroidal conductivity probe.
• No need to recalibrate conductivity probe.
• Reduced potential for fouling.
• Two year warranty.
• Wide control range: 0 - 9,999 μS/cm.
• Compact size saves space and reduces freight cost.

Controls

Bleed

• Solenoid valves, or motorized ball valves

pH and ORP Control

• Pumps, solenoid valves, or motorized ball valves

Up to 6 Selectable Timer Relays

• Limit timer
• Percent timer
• % post bleed with limit timer
• Water meter pulse timer
• Biocide control timer, with prebleed, lockout, and conductivity minimum
• 4-20mA input, pH, or ORP set point control
• Alarm output

Aftermarket

• Solenoids
• Motorized Ball Valves
• Water Meters
• Corrosion Coupon Racks
• Metering Pumps (PULSAtron, XP Series)
