mPower Electronics MP400HS Kit (Head Hardware/Soldier Firmware), 4-gas (LEL/O2-LF/CO/HCN) - MPAHS-82A60T-040AO
Item #:
MP-MPAHS-82A60T-040AO
Brand:
mPower Electronics
Share this product:
MPAHS-82A60T-040AO MP400HS Kit (Head Hardware/Soldier Firmware), 4-gas (LEL/O2-LF/CO/HCN) by mPower Electronics

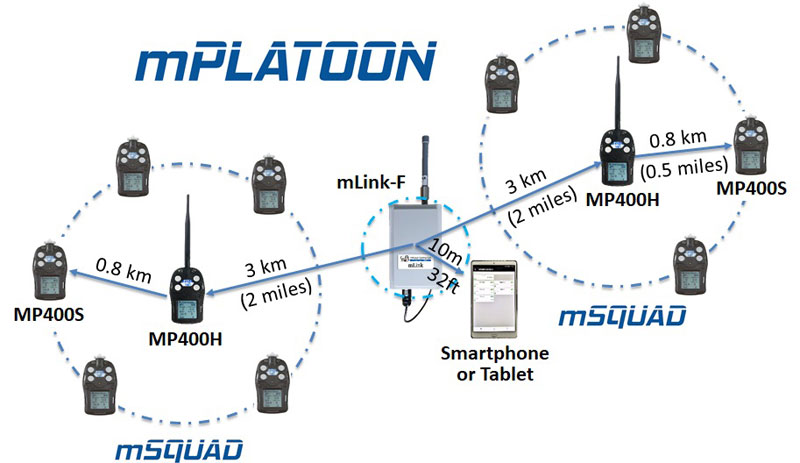

Each mPower MP400H or MP400HS Multi-Gas Monitor communicates to the command station via 915 MHz radio. MP400S communicates via its host MP400H.
Features, Functions and Benefits
- Intrinsically safe (Class I, Division 1)
- Up to 5 gas measurements in each monitor
- Selection of 20+ gas sensors
- Programmable custom location identifiers
- Displays gas alarm notification, Man-Down alarm and Panic Alarm on monitors and mPower RT software.
- Magnetic mount option for quick deployment.
- Light-weight (1 lb) for easy portability or hand-held operation
- IP
Size | 5.7 x 3.3 x 1.7 in (140 x 84 x 42 mm) w/o Antenna |
Weight | 15.5 oz (435 g) |
Sampling | Diffusion (MP400H & MP400HS); Pump (MP400S) |
Battery | Rechargeable Li-ion pack, typical run time: • 1 Day – Using NDIR LEL sensor • 2 Days – Using EC sensors only |
Direct Readout | • Real-time gas concentrations; Battery status • STEL, TWA, peak and minimum values |
Display | 128 x 128 graphical LCD, 1.77 x 1.73 in (45 x 44 mm), with LED backlight for enhanced readability. |
Calibration | Manual calibration. MonoDock option allows auto-mated calibration on individual POLI units |
Frequency | ISM License-free band (902-928 MHz) |
RF | 2.5 dBi Antenna; 20 dBm Peak power |
Wireless Comm | Poll gas concentration readings from Software on Android phone or tablet via mLink-P |
Alarms | Push Notification via mLink-P, plus local audible (95 dB @ 30 cm) and visual (flashing LEDs) alarms |
Direct Comm and Charging | USB cable for charging, download, configuration and upgrades on PC or 100-240V AC charger. |
Temperature | -4° to 122°F (-20° to 50°C) |
Humidity | 0% to 95% Relative humidity (non-condensing) |
IP Rating | IP-67 (IP-65 for MP400S) |
EMC/RFI | EMC directive: 2014/30/EU |
Warranty | • 2 Years on instruments; 1 year on exotic sensors • 2 Years on sensors for pellistor LEL, and O2, CO, H2S, SO2, HCN, NO, NO2, and PH3 EC sensors |
Sensor | Range |
Resolution |
PID | 0-2000 ppm |
0.1 ppm |
Oxygen (O2) | Lead Woo: 0-30%Vol Lead-Free: 0-30%Vol |
Lead Woo: 0.1%Vol Lead-Free: 0.1%Vol |
Combustibles (LEL%) High Resolution version | 0-100%LEL 0-100%LEL |
1%LEL 0.1%LEL |
NDIR Methane (Vol%) Dual-Range version | 0-100%Vol 0-100%Vol |
1%Vol 1%LEL |
CO2 (Carbon Dioxide) | 0-50000 ppm |
100 ppm |
CO (Carbon Monoxide) | 0-1000 ppm |
1 ppm |
H2S (Hydrogen Sulfide) | 0-100 ppm 0-1000 ppm |
0.1 ppm 1 ppm |
CO + H2S | CO: 0-500 ppm H2S: 0-200 ppm |
CO: 1 ppm H2S: 0.1 ppm |
SO2 + H2S | SO2: 0-20 ppm H2S: 0-100 ppm |
SO2: 0.1 ppm H2S: 0.1 ppm |
NH3 (Ammonia) | 0-100 ppm 0-500 ppm |
1 ppm 1 ppm |
Cl2 (Chlorine) | 0-50 ppm |
0.1 ppm |
ClO2 ( Chlorine Dioxide) | 0-1 ppm |
0.01 ppm |
H2 (Hydrogen) | 0-1000 ppm |
1 ppm |
HCl (Hydrogen Chloride) | 0-15 ppm |
0.1 ppm |
HCN (Hydrogen Cyanide) | 0-100 ppm |
0.1 ppm |
NO (Nitric Oxide) | 0-250 ppm |
1 ppm |
NO2 (Nitrogen Dioxide) | 0-20 ppm |
0.1 ppm |
PH3 (Phosphine) | 0-20 ppm 0-1000 ppm |
0.01 ppm 1 ppm |
SO2 (Sulfur Dioxide) | 0-20 ppm 0-100 ppm |
0.1 ppm 0.1 ppm |
ETO (Ethylene Oxide) | 0-100 ppm |
0.1 ppm |
CH3SH (Methyl Mercaptan) | 0-10 ppm |
0.1 ppm |
THT (Tetrahydrothiophene) | 0-40 ppm |
0.1 ppm |
