mPower Electronics UNI 321 Maintenance-Free Single Gas Detector, MP102 (2 Years), O2, Measuring Range: 30% ppm, Resolution: 0.1% ppm - M015-0003-000
Item #:
MP-M015-0003-000
Brand:
mPower Electronics
Share this product:
M015-0003-000 UNI 321 Maintenance-Free Single Gas Detector, MP102 (2 Years), O2, Measuring Range: 30% ppm, Resolution: 0.1% ppm by mPower Electronics

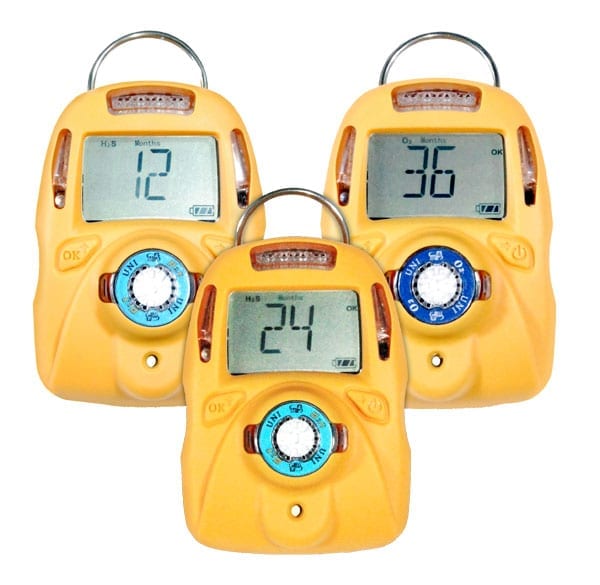

The UNI 321 is a disposable or maintenance-free version of UNI single gas detector. It detects hydrogen sulfide (H2S) or carbon monoxide (CO) in a selection of models with operating lives of 24 months (MP102) or 36 months (MP103). The detectors have large LCDs providing maximum readability in the field. Six bright red LEDs allow for quick alarm notification. Constructed of strong and durable material, the UNI 321 is designed to be comfortable, yet drop-resistant. The UNI detectors can easily be bump tested and calibrated using the CaliCase System.
Features, Functions and Benefits
- Simple GO, NO-GO!
- No Maintenance needed for life of instrument (except when used under extreme conditions)
- Low cost of ownership
- Large Display shows remaining operating time or alarm condition (For concentration display use UNI MP100)
- Durable Housing
- Solid stainless-steel Alligator Clip
- 50% larger single-cell Battery
- Daily functional Self-Test
- 50 Event Datalogging
- Docking Station for calibration and event download
- UL Classification Class 123, Groups ABCDEFG
Size | 3.46 x 2.44 x 1.3 in |
Weight | 4.4 oz (125 g) |
Response time (t90) | 15 seconds |
Display | Shows remaining operating time or alarm condition (No concentration readout) |
Alarm type | • High & Low alarms • Over range alarm • Low battery alarm |
Alarm signal | • 95 dB @ 30 cm • Bright red LEDs • Built in vibrator |
Calibration | Manual zero (CaliCase/MP300T1 allows 2-point calibration, zero and span) |
Event log | Up to 50 alarm events |
Temperature | -4°F to 122°F (-20°C to 50°C) |
Humidity | 5 to 95% relative humidity (non-condensing) |
IP rating | IP-67 |
EMI/RFI | EMC directive: 2014/30/EU |
Operating life | • 2 years for MP102 • 3 years for MP103 |
