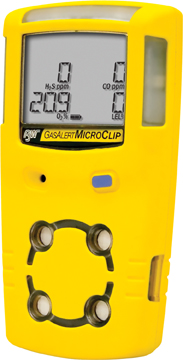

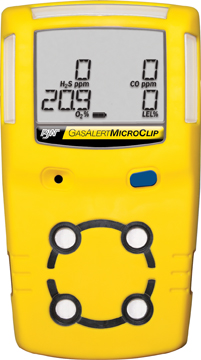

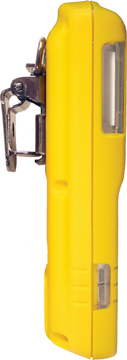

BW Technologies GasAlertMicroClip 3 Gas Detector O2, H2S, CO Yellow
Item #:
MC-X0HM-Y-NA-00
Brand:
BW Technologies
Share this product:
MC-X0HM-Y-NA-00 GasAlertMicroClip 3 Gas Detector O2, H2S, CO Yellow by BW Technologies
The slim and compact GasAlertMicroClip provides affordable protection from atmospheric hazards. With simple onebutton operation, this multi-gas detector offers ultimate ease of use and signifi cantly reduces time spent training the user. The GasAlertMicroClip is fully compatible with BW's MicroDock II automatic test and calibration system.
- Multi-gas versatility with one-button simplicity
- Incredibly thin and lightweight, making it comfortable to wear
- Extraordinarily low cost of ownership
Standard features of BW products:
- Continuous LCD shows real-time gas concentrations
- Compact and lightweight design makes it comfortable to wear
- Water-resistant
- Simple automatic calibration procedure; compatible with BW MicroDock II automatic test and calibration station
- Full function self-test of sensor, battery status, circuit integrity and audible/visual alarms on start up
- Bright wide-angled visual alarm bars
- Built-in concussion-proof boot
Additional GasAlertMicroClip features:
- Tamper-proof, one button operation
- Compatible with the Sampler motorized remote sampling pump
- Equipped with internal vibrating alarm for high noise areas
- Powered by a lithium polymer battery
- Multi-language support in English, French, German, Spanish and Portuguese
- Conveniently manage your fleet using Soft Tools
Part Number: MCX0HMYNA00
| Size | 4.2 x 2.4 x 1.1 in. / 10.8 x 6.0 x 2.7 cm |
| Weight | 5.7 oz. / 160 g |
| Temperature | -4 to +136°F / -20 to +58°C |
| Humidity | 0% - 95% RH (non-condensing) |
| Alarms | - Visual, vibrating, audible (95dB) - Low, High, STEL, TWA, OL (over limit) |
| Tests | Audible/visual alarms on activation, sensors, battery and circuitry (continuous) |
| Pump | Compatible with the Sampler motorized sampling pump |
| Typical battery life | 12 hours (typical); recharges in less than 3 hours |
| User options | Confidence beep, Set STEL interval, Sensor on/off, Latching alarms, Safe display mode, Stealth mode, Calibration lock, Auto zero on start up, O2 auto calibration on start up, Set bump test interval, Combustible gas measurement (% LEL or % by volume methane), User-settable calibration gas level, Force bump test when overdue, Force calibration when overdue, Low alarm acknowledge, Language choices (5), Set custom start up message |
| Warranty | Full 2 year warranty including all sensors |
| Gas | Measuring Range | Resolution |
| H2S | 0-100 ppm | 1 ppm |
| CO | 0-500 ppm | 1 ppm |
| O2 | 0-30.0% | 0.1% |
| Combustible gases | 0-100% LEL 0-5.0% v/v |
1% 0.1% |
