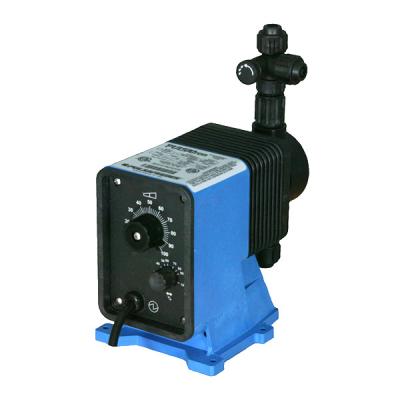

Quantrol PULSAtron Series C Plus Metering Pump, PVC Liquid Ends, 12 GPD @ 80 PSI (KOPkit # K3VTC1) - LD03SA-VTC1-XXX

LD03SA-VTC1-XXX PULSAtron Series C Plus Metering Pump, PVC Liquid Ends, 12 GPD @ 80 PSI (KOPkit # K3VTC1) by Quantrol

The Pulsatron Series C Plus offers manual function control over stroke length and stroke rate as standard with the option to select external pace for automatic control. The primary difference between the Series A Plus and Series C Plus is the pressure rating.

Four distinct models are available, having pressure capabilities of 80 PSIG (5.6 BAR), and flow capacities up to 30 GPD (4.7 lph), with a turndown ratio of 100:1. Metering performance is reproducible to within ± 3% of maximum capacity.

Features

• Manual Control by on-line adjustable stroke rate and stroke length.
• Highly Reliable timing circuit.
• Circuit Protection against voltage and current upsets.
• Solenoid Protection by thermal overload with autoreset.
• Water Resistant, for outdoor and indoor applications.
• Internally Dampened To Reduce Noise.
• Guided Ball Check Valve Systems, to reduce back flow and enhance outstanding priming characteristics.
• Few Moving Parts and Wall Mountable.
• Safe & Easy Priming with durable leak-free bleed valve assembly (standard).
• Optional Control: External pace with auto/manual selection.

Operating Benefits

• Reliable metering performance.
• Rated "hot" for continuous duty.
• High viscosity capability.
• Leak-free, sealless, liquid end.
