Tracer Gas Hardware (ANSI/ASHRAE Standard 110 1995)

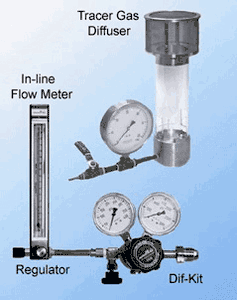

Dif-Kit (Includes Ejector and Gauge Assembly) by Kanomax

The Kanomax tracer gas diffuser is for use in performing the tracer gas test in accordance with ANSI/ASHRAE Standard 110-1995. The diffuser is made to the design and specifications of Standard drawing #110-83M.

The diffuser is placed in the fume hood and sulfur hexafloride gas is injected at at supply pressure of 30 psig. The internal critical orifice ensures a flow rate of 4 liters per minute. Other orifice sizes can be inserted.

Features:

• The ANSI/ASHRAE 110 test is a method of testing the performance of laboratory fume hoods.Kanomax Dif-Kit tracer gas hardware is ideal for use in performing the Tracer Gas test in accordance with ANSI/ASHRAE Standard 110-1995.
• Diffuser is made to the design and specifications of Standard drawing #110-83M
• The internal critical orifice ensures a flow rate of 4 liters per minute. Other orifice sizes can be inserted
• Test-Mannequin and the vapor analyzer for the tracer gas test are available
• Face velocity measurement data can be stored and downloaded with Anemometer
• Dif-Kit includes tracer gas diffuser, nozzle assembly, in-line flow meter, tank regulator, and 20 ft of tubing

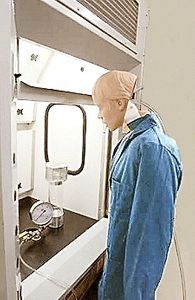

Kanomax Ejector

Kanomax Gauge Assembly

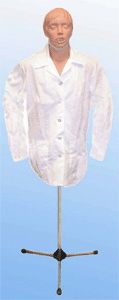

Kanomax Manikin Kit includes Lab coat, and Stand

AL900 Portable Fog Machine by Kanomax

The Flow Visualization and velocity procedure test standard (ANSI/ASHRAE 110-1995 section 6) is a visualization test used to determine hood ability to contain vapors. A visible smoke is introduced in a manner that is consistent in a way the hood is typically used. See ANSI/ASHRAE 110-1995 section 6 for a complete description of testing procedures.

VPR-ANLYZR Vapor Analyzer by Kanomax

The Vapor Analyzer is factory calibrated for Sulfur Hexafluoride(SF6). Response time is less than 10 seconds to 90% response with a stable maximum concentration in less than 30 seconds.

VPR-ANLYZR Vapor Analyzer, International Version by Kanomax

The Vapor Analyzer is factory calibrated for Sulfur Hexafluoride(SF6). Response time is less than 10 seconds to 90% response with a stable maximum concentration in less than 30 seconds.

Kanomax Critical Orifice Plates for Specific Gases (SF6, FM200, NO2)
