CorDEX IW2000 Smart IR Window 2" (45mm)
Item #:
IW2000
Brand:
CorDEX
Share this product:

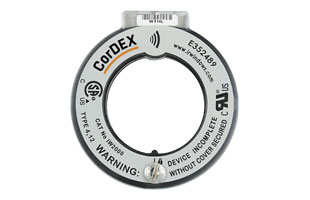

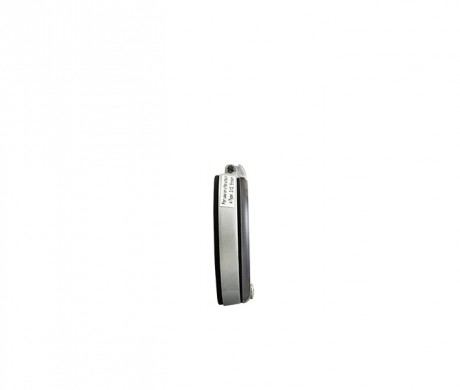

IW2000 Smart IR Window 2" (45mm) by CorDEX
The IW Series is the latest generation of SMART IR Windows from CorDEX Instruments. The IW Series infrared window operates with any thermal imager, helping take electrical inspection and predictive maintenance to a new level of safety, efficiency and accuracy.
The IW Series is manufactured from industrial grade materials designed to withstand electrical arcs and certified by Underwritten Laboratories (UL) to follow the very latest IR window standards. Install the certified, IW Series SMART IR Windows to help comply with NFPA70E electrical safety guidelines and reduce the need to wear large and bulky PPE.
Through intelligent design and special features the IW Series reduces the time it takes to perform inspections. With the ¼ turn locking system and spring loaded cover it reduces your time per inspection. The IW Series crystal lens is also protected with HYDROGARD™ advanced formula to stop environmental moisture damage allowing the windows to be used both indoor and outdoor.
Features:
- The IW Series are fully certified and tested to the following standards: UL50, UL50V, UL1558
- Manufactured from industrial grade materials proven to withstand electric arcs
- Efficient 1/4 turn locking system
- Intelligent multiple identification system for each individual window
- Arc flash tested against a 50kA short circuit for 1 second at 11kV
Optic / Crystal Data | |
Crystal Insert Diameter | 50mm (2in) |
Viewing aperture diameter | 45mm (1.8in) |
Viewing aperture area | 1591mm² (2.5in²) |
Thickness | 2mm (0.08in) |
HydroGARDTM Coating | Yes |
Shortwave IR capable | Yes |
Midwave IR capable | Yes |
Longwave IR capable | Yes |
Ultraviolet (UV) capable | Yes |
Visual capable | Yes |
Fusion capable | Yes |
Certification | |
Underwriters laboratories (UL) recognised | Yes |
UL50 | Type 4/12 |
UL746C, UL94, UL50V, UL1558 | Yes |
Sira IP65 | Yes |
General Specifications | |
Maximum Temperature | Gaskets: 250°C (482°F) Body: 659°C (1218°F) Optic: 1400°C (2552°F) |
Gaskets | Low smoke and fume (LSF) compliant silicone |
NEMA rating | Type 4/12 (UL Third Party Certified) |
Vibration rating | IEC60068-2-6 |
Humidity rating | IEC60068-2-3 |
Warranty | Lifetime replacement against manufacturing defects |
