Hanna pH & TDS Continuous Indicator with LCD, pH/TDS probes, 12VDC EU Plug, buffers - HI981404N-02

Item #:
HI981404N-02
Brand:
Hanna Instruments
Hanna pH & TDS Continuous Indicator with LCD, pH/TDS probes, 12VDC EU Plug, buffers - HI981404N-02
$207.00
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Hanna pH & TDS Continuous Indicator with LCD, pH/TDS probes, 12VDC EU Plug, buffers - HI981404N-02

Hanna pH & TDS Continuous Indicator with LCD, pH/TDS probes, 12VDC EU Plug, buffers - HI981404N-02

$207.00

Discontinued


HI981404N-02 pH & TDS Continuous Indicator with LCD, pH/TDS probes, 12VDC US Plug, buffers by Hanna Instruments

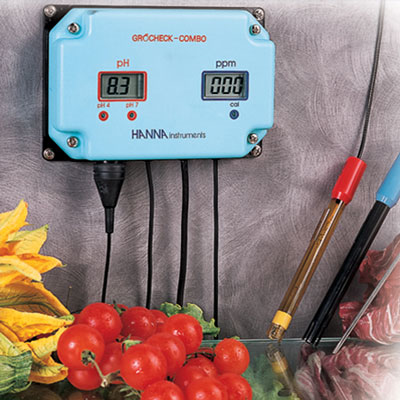

HI 981404N-02 is ideal for agricultural, horticultural and hydroponics applications where pH and TDS levels need to be continuously monitored for optimal plant growth. This instrument continuously monitors and displays the values of a solution on an easy to read set of LCD's.

The HI 1286 gel filled pH electrode is replaceable and the BNC connector is protected behind a waterproof sleeve. The unique design of the electrode guarantees greater clogging resistance in fertilizer solutions with high concentrations of phosphate, nitrate, etc. TDS measurements are performed using the 4-4-2 conversion factor of 0.7 so you do not need to convert the readings.

This model is equipped with a grounding bar to ensure highly accurate pH readings and longer electrode life.

The HI 981404N-01 is compact and easy to install and use making it ideal for all continuous monitoring applications.

  • Two parameters with a single instrument
  • Advanced electrode technology
  • Simple operation and maintenance
  • Supplied complete and ready to use

Order Information:

HI 981404N-01 (115V) and HI 981404N-02 (230V) are supplied complete with HI 1286 pH electrode, HI 7634 TDS probe, HI 1283 grounding bar, calibration solutions, screwdriver for calibration, 12 VDC adapter and instructions.

pH Range 0.0 to 14.0 pH
TDS Range 0 to 1990 mg/L (ppm)
pH Resolution 0.1 pH
TDS Resolution 10 mg/L (ppm)
pH Accuracy @ 20°C ±0.2 pH
TDS Accuracy @ 20°C ±2% F.S.
pH Calibration manual at one or two points
TDS Calibration manual at one point
Temperature Compensation automatic from 5 to 50°C (41 to 122°F) (TDS only)
TDS Conversion Factor 0.7 ppm = 1 µS/cm
Probes HI 1286 interchangeable pH electrode (included), HI 7634 TDS probe (fixed), HI 1283 grounding bar with 2 m (6.6’) cable (included)
Power Supply 12 VDC adapter (included)
Environment 0 to 50°C (32 to 122°F), RH 95%
Dimensions 165 x 110 x 35 mm (6.5 x 4.3 x 1.3”)
Weight 300 g (10.6 oz.)
