Hanna pH and mV Precision Simulator - HI931001
Item #:
HI931001
Brand:
Hanna Instruments
Share this product:

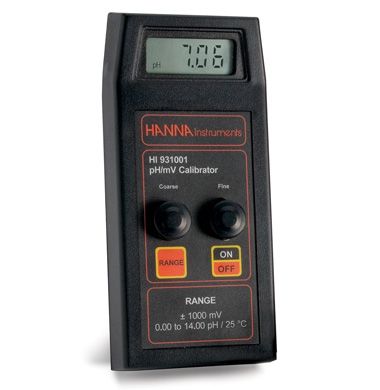

HI931001 pH and mV Precision Simulator by Hanna Instruments
Sometimes it is difficult to recognize whether a particular malfunction is due to the meter or the electrode. By simply connecting HI 931001 to your meter's input socket and turning the dials, pH readings can be simulated from 0 to 14 pH in 0.01 steps. The output signals all correspond to pH values at 25°C and your pH meter should be able to check the span of your pH meter.
For the mV range, HI 931001 can simulate output from -1000 to +1000 mV in 1 mV steps.
- Simulate output to discover malfunctions
- Simulate temperature
- Provided with universal BNC connector
Order Information:
HI 931001 is supplied with HI 7858/1 BNC/BNC coaxial cable
pH Range | 0.00 to 14.00 pH |
ORP Range | -1000 to 1000 |
pH Resolution | 0.01 pH |
ORP Resolution | 1 mV |
pH Accuracy @ 20°C | ±0.01 pH |
ORP Accuracy @ 20°C | ±1 mV |
Temperature Compensation | all output values are simulated at 25°C |
Battery Type / Life | 9V / approximately 500 hours of use |
Environment | 0 to 50°C (32 to 122°F); RH max 95% |
Dimensions | 185 x 82 x 53 mm (7.3 x 3.2 x 2.1’’) |
Weight | 320 g (11.3 oz.) |
