Hanna Mini Level Controller with Overflow Alarm, 115V - HI7873/115

Item #:

HI7873-115

Brand:

Hanna Instruments

Hanna Mini Level Controller with Overflow Alarm, 115V - HI7873/115

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

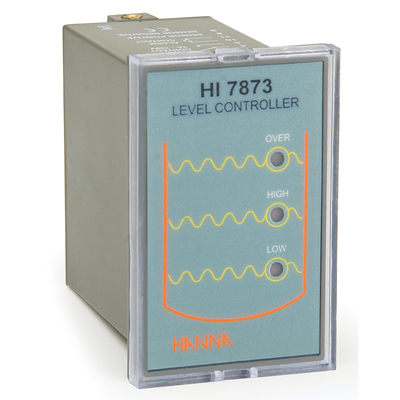

HI7873/115 Mini Level Controller with Overflow Alarm, 115V by Hanna Instruments

HI 7873 mini level controller is for liquid level control over distances of up to 100 m (330�). This instrument is highly compact and will fit in tight spaces. HI 7873 includes an overflow alarm, and is connected to a 2-wire transmitter (HI 7874), which is ideal for level monitoring in remote applications.

A complete liquid level measuring system requires:

A controller (HI 7871 or HI 7873)
A bar holder with amplifier circuitry (HI 7874)
A package of measuring bars (HI 731324)
An undecal connector (HI 7164)

Order Information:

HI 7873/115 (115V) is supplied with mounting brackets and instructions.
HI 7873/220 (220V) is supplied with mounting brackets and instructions.

Specifications

Transmission	max. 100 meters (330 feet)
Electrical Connection	HI 7164 undecal connector (not included)
Level Adjustment	high, low and overflow
Level Indication	high, low and overflow
Sensor Bars	4 (not included) (HI 731324 pack of 5 pcs)
Transmitter	HI 7874 (not included)
Output Contact	2 relay (2A/250 Vac, 30 Vdc)
Power Supply	110/115 Vac; 50/60 Hz
Environment	0 to 50°C (32 to 122°F); RH max 85% non condensing
Dimensions	79 x 49 x 95 mm (3.1 x 1.9 x 3.7’’)
Weight	250 g (8.8 oz.)

Datasheets & User Manuals
