Handheld Algiz 10XR 10-inch Windows Tablet, 8GB/128GB, Intel Elkheart, 5G Generic EM9191 - 10XR-RF1-0G0
Item #:
HH-10XR-RF1-0G0
Brand:
Handheld
Share this product:

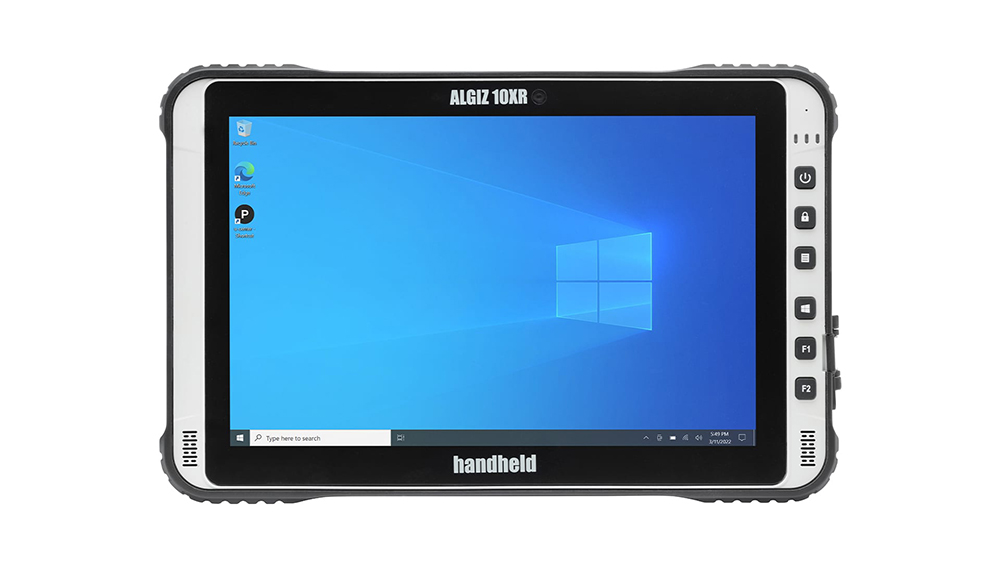

10XR-RF1-0G0 Algiz 10XR 10-inch Windows Tablet, 8GB/128GB, Intel Elkheart, 5G Generic EM9191 by Handheld
Advances in technology are great – especially when they have practical uses for the people using them. The new Algiz 10XR rugged Windows tablet harnesses the power of today's technology to deliver significant improvements for rugged mobile computing. It breaks new ground in tech, so you can break new ground in your work.
This is a big step up
We're not adding some fancy function you'll never use, or an incrementally tiny improvement; we're delivering advances you'll notice and appreciate every day. Like up to two times better graphics and measurably faster performance. It is a smaller, lighter, 10-inch Windows tablet that achieves more even while taking up less space. The Algiz 10XR's Intel Elkhart Lake platform really packs a punch.
The technology to be truly versatile
The possible applications for the Algiz 10XR rugged Windows tablet are nearly endless. We've included a dedicated u-blox receiver and chipset, and long-lasting, hot-swappable batteries. Future-proof 5G communication can handle live video streams and bandwidth-heavy tasks like mapping. An amazingly bright screen features glove/rain mode so it's ready to go when the weather gets harsh. There are three separate USB-C ports, and optional integrated NFC.
Designed for any mobile or vehicle-mounted application
Public transport or waste management, GIS or mining; ambulances or logistics and yard work; a hundred different mobile or vehiclemounted applications – the Algiz 10XR rugged Windows tablet was designed for modulization and customization. The u-blox functionality offers untethered dead reckoning (UDR) by blending GNSS signals and inertial sensors to provide accurate positioning performance under even weak GNSS conditions.
Ready to go beyond the basics
Wait – there's more. There's an integrated barcode scanner option for asset tracking, plus a broad ecosystem of accessories like carry cases, pole mounts and more. The Algiz 10XR rugged Windows tablet is designed to go above and beyond, out in the field. It has a vehicle dock with antenna pass-through for both GPS and Wi-Fi – providing optimal signal quality at all times. Plus, the Algiz 10XR has a unique "backpack" configuration to allow for customized, proprietary add-ons.
Don't forget what "ultra-rugged" means
With Handheld rugged computers like the Algiz 10XR, you can stop asking "Is it OK to…?" Work in extreme heat or in dusty spaces, or go jouncing down a dirt track in a pickup truck. The IP65 rating means it's "hurricane-proof” impervious to dust and driving rain, able to withstand drops and vibrations, and far beyond the capability and lifespan of a consumer device – and therefore a more sustainable choice for your work.
Dimensions | 282 mm x 182 mm x 26 mm (11.1" x 7.1" x 1") |
Weight | 1250 g (2.7 lbs) |
Processor | Intel Elkhart lake Atom® x6413E 1.50 GHz (3.00 GHz boost) 64-bit quad-core |
Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
RAM and Storage | 8 GB / 128 GB |
Operating System | Windows® 10 Enterprise LTSC (64bit) |
Display | 10.1" capacitive multi-touch (10 points) 1920×1200 pixels Sunlight readable, 850 Nits Glove/rain mode Chemically strengthened glass |
Buttons | Front: Power, touch mode, menu, home, F1, F2 |
Battery | Standard: 11.55V 3520 mAh (40.66 Wh) Hot-swappable Extended: 10.8V 6700mAh (72.4 Wh) Hot-swappable |
Ports | 5.5mm DC-in barrel power jack 1 x USB C 3.0 Support charging and display port 1 x USB C 3.0 output 5V/3A 1 x USB A 3.0 Docking connector 1x micro SDXC 1x micro SIM |
Communication | Cellular (WWAN): 5G, 4G/LTE Sierra Wireless EM9191 Wireless LAN: 2.4 GHz + 5 GHz 802.11ac, a/b/g/n PAN: BT V5.0 Audio: Front-facing stereo speaker Microphone |
Positioning | Dedicated GNSS u-blox NEO-M8U receiver GPS/GLONASS/Galileo/BeiDou, SBAS |
Cameras | Rear: 12 megapixel with autofocus and flash Front: 5 megapixel |
Sensors | 9-axis sensor (Gyro, Accelerometer, magnetometer) Light sensor to automatically adjust backlight |
Environment | Operating: -20°C to 60°C (-4°F to 140°F) MIL-STD-810G, Method 501.5/502.5 Procedures ll,lll Storage: -40°C to 70°C (-40°F to 158°F) MIL-STD-810G, Method 501.5/502.5 Procedure l Drop / Shock: 26 drops from 1.2 m (4 ft) MIL-STD-810G, Method 516.6 Procedure IV Vibration: MIL-STD-810G, Method 514.6 Procedure I Sand / Dust: IP65, IEC 60529 Water: IP65, IEC 60529 Humidity: MIL-STD-810G, Method 507.5 Procedure II Altitude: 4572 m (15.000 ft.) MIL-STD-810G, Method 500.5 Procedure I |
Additional Security | TPM v2.0 |
