GfG G888 Multi-gas Atmospheric Monitor, 5 year O2 (lead free), 3 year cc LEL, CO, H2S with ISM 915 MHz RF wireless, includes smart Charging/calibration cap and cable - G888C-13-01-02-00-00-01

Item #:
G888C-13-01-02-00-00-01
Brand:
GfG
$1,705.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
GfG G888 Multi-gas Atmospheric Monitor, 5 year O2 (lead free), 3 year cc LEL, CO, H2S with ISM 915 MHz RF wireless, includes smart Charging/calibration cap and cable - G888C-13-01-02-00-00-01

GfG G888 Multi-gas Atmospheric Monitor, 5 year O2 (lead free), 3 year cc LEL, CO, H2S with ISM 915 MHz RF...

$1,705.00

G888C-13-01-02-00-00-01 G888 Multi-gas Atmospheric Monitor, 5 year O2 (lead free), 3 year cc LEL, CO, H2S with ISM 915 MHz RF wireless, includes smart Charging/calibration cap and cable by GfG

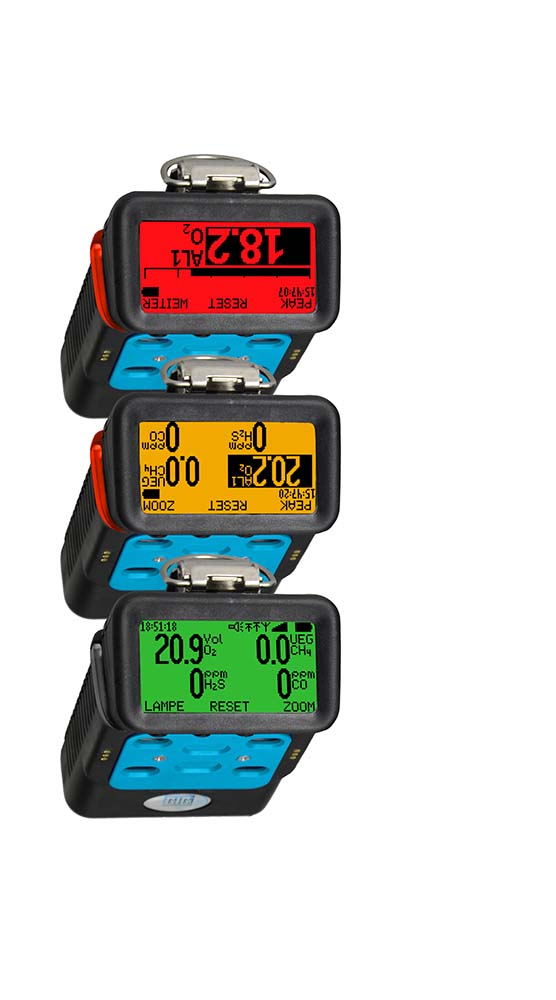

The development of the Microtector III G888 focused on the requirements of a modern multi-gas detection instrument for use in personal protection. The result is a multi-gas warning device that is safe, robust and practical and has proven itself in daily working conditions.

Advantages

Safety through quality and functionality

Equipped with high-quality, precise and durable sensors that can be individually adapted to your requirements. Multitude of gas-combinations can be identified to ensure maximum safety of employees.

The well thought-out design of the housing and the menu navigation eases the operation of the multi-gas warning device under difficult conditions. This device features a rotating display, easily turning 180 degrees with just one click. For working in poorly lit conditions, the device conveniently features an explosion-protected LED light.

Designed for difficult working conditions

Sometimes there is a need to work in challenging environments; the Microtector III G888 is equipped to withstand such challenges. Ex zone 1 certified, the Microtector III G888 is dusttight and water-resistant in accordance to the IP 67 protection class. The rubberized polycarbonate housing makes the detector shock-resistant and will keep your device safe in case of a fall. It is also comfortable to wear, weighing only 275g.

Suitable for long operating times

Depending on the sensor equipment and configuration, the Microtector III G888 has an operating time of up to 65 hours.

Remote monitoring keeps employees safe

If the G888 with the radio module is used, teams can be monitored centrally via the portable GfG-Link or using a computer and an USB dongle. Information regarding the measured gas concentrations, alarm levels and the status of the man-down alarm will then be available in real time.

Be prepared for an emergency

In the event of an emergency it is always good to be prepared. The Microtector III G888 is able to simulate an alarm of any gas concentration, in order to train and prepare for a variety of emergency situations.

Maintenance and documentation

The test and docking stations for the Microtector III G888 not only allow location-independent, daily bump tests and regular functional checks, as well as the complete documentation.

G888 - the team player

The Microtector III G888 offers optimum individual protection for everyone working in hazardous and/or enclosed areas. When measuring releases of gas or searching for a gas leak, it is recommended to use the Polytectors III G999 from GfG, which has a built-in pump. The advantage: both devices can be remotely monitored by a computer or GfG-Link.

Measuring principle: Electrochemical (EC): for toxic gases and oxygen
Heat treatment (WT): for flammable gases and vapors (up to 100% LEL)
Infrared (IR): for flammable gases and vapors and carbon dioxide
Sample gas supply: Through diffusion opening
Display: Illuminated LCD full graphic display, automatic size adjustment for optimum reading, display of battery capacity, gas concentration as current value and peak value
Alerting: Depending on gas type 3 or 2 instantaneous value and 2 exposure value alarms, battery alarm with visual and audible signal as well as display, color of display depending on alarm status (orange/red) Horn: 103 dB(A) (can be reduced to 90 dB(A))
Zero point and sensitivity adjustment: Manually or automatically with adjustment program if necessary test gas supply using "SMART CAP" with 0.5...0.6 slpm
Radio: Optional 868 MHz for EU; range approximately 700 m (free field)
Optional 915 MHz for USA; range approximately 300 m (free field)
Power supply: NiMH rechargeable battery module; 2.6 V 2100 mAh; rechargeable
Operating time: Without a radio:
ca. 13h (EC+WTPS+IR)
ca. 21h (EC+WTPS)
ca. 65h (EC)
ca. 13h (EC+WTPS+IR)
ca. 21h (EC+WTPS)
ca. 65h (EC)
ca. 23h (EC+IR)
ca. 23h (EC+IR)
With radio:
ca. 10h (EC+WTPS+IR)
ca. 14h (EC+WTPS)
ca. 26h (EC)
ca. 15h (EC+IR)
Climatic conditions: For the operation: -20...+50°C 5...95 % r.h. 70...130 kPa
For storage: -25...+55°C 5...95 % r.h. 70...130 kPa (recommended 0...+30°C)
Case Material: Rubberized polycarbonate
Dimensions: 68 x 100 x 39 mm (W x H x D)
Weight: up to 275 g (depending on sensor equipment)
Protection class: IP67
Approvals / Tests Intrinsic safety:
c-CSA-us
Class I, Division 1, Groups A, B, C, and D T3
Ex ia IIC T3
Class I, Zone 0 AEx ia IIC T3
Ex db eb ia IIC T3/T4 Gb (NiMH=T3) -20 ≤ Ta ≤ +45 / +50 °C
08.1934905X
Standards:
IEC 60079-0:2011 (Ed.6)
IEC 60079-7:2015 (Ed.5)
IEC 60079-1:2014 (Ed.7)
IEC 60079-11:2011 (Ed.6)
CSA C22.2 No. 152-M1984
UL 913
ANSI / ISA-12.13.01-2000
EMI / RFI Resistance: EMC Directive 89 / 336 / EEC
Electromagnetic compatibility:
DIN EN 50270:2015: Interference emission: Type class I; Interference immunity: Type class II
