Fieldpiece Digital Megohm Meter - SMG5
Item #:
FP-SMG5
Brand:
Fieldpiece
Share this product:

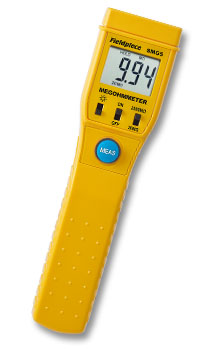

SMG5 Digital Megohm Meter by Fieldpiece
The Fieldpiece Digital Megohm Meter, model SMG5, is a compact standalone meter designed for checking HVAC compressor insulation. The SMG5 provides a 1000V voltage source, monitors current, and displays the resistance between the test points. Maximum current output is <1mA. It can be used to determine the condition of insulation from winding to ground in a motor, compressor, or transformer. Includes a case, alligator clip lead tip and leads with removable tips.
To test resistance, a DMM supplies low voltage (<1V) to the test points and is capable of delivering only a few milliamps. It's not a high enough voltage to detect high resistance problems that might indicate moisture and other contaminants and it's not enough current to measure lower values of resistance.
- Predict compressor failure
- 1000VDC stresses insulation to measure up to 2000Mohms
- Backlit LCD display
- Auto-off to extend battery life
- Case, alligator clip, leads with removable tips
Includes
- Megohm Meter – SMG5
- (2) Probe Tips
- (1) Ground Lead with Detachable Tip
- (1) Alligator Probe Tip
- Carrying Case
- (4) AAA Batteries (installed)
- Operator's Manual
| General Specification | |
| Display | 3 1/2 digit liquid crystal display (LCD) with maximum reading of 1999. |
| Overrange | (OL) or (-OL) is displayed. |
| Measurement rate | 2.5 times per second, nominal. |
| Operating Environment | 0°C to 40°C at < 70% relative humidity. |
| Storage Temperature | -20°C to 60°C, 0 to 80% R.H. with battery removed from meter. |
| Auto power off | 15 seconds approx. |
| Standby consume current | <10μA |
| Battery | 4 pcs 1.5V (AAA size) UM-4 R03. |
| Battery Life | 4 hours (continuity) typical with alkaline battery (@ 20ΜΩ range test 10ΜΩ resistor). |
| Dimensions | 170mm(H) x 44mm(W) x 40mm(D). |
| Weight | 160g including batteries |
| ELECTRICAL | |
| Range | 20ΜΩ,2000ΜΩ |
| Resolution | 10KΩ on 20ΜΩ range. 1ΜΩ on 2000ΜΩ range. |
| Accuracy | 20ΜΩ range: ±(2%rdg + 2dgts) 2000ΜΩ range: <500ΜΩ ±(4%rdg + 2dgts) >500ΜΩ ±(5%rdg + 2dgts) |
| Rated voltage | DC-DC converter to 1000VDC |
| Accuracy temperature | 23°C ± 5°C less than 70%RH |
| Temperature Coefficient | 0.1X (specified accuracy)/°C (<18°C or >28°C) |
