Fieldpiece Swivel Meter-Wireless - SC660
Item #:
FP-SC660
Brand:
Fieldpiece
Share this product:

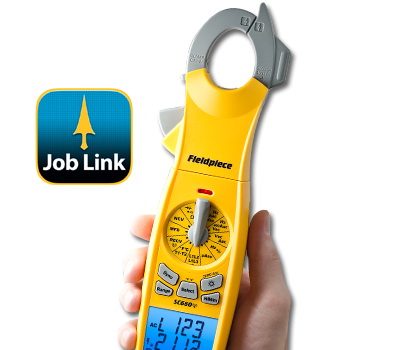

SC660 Swivel Meter-Wireless by Fieldpiece
The new SC460 and SC660 wireless clamp meters team up with the Job Link system to provide even more in-depth testing, diagnostics and reports.
Clamp readings are wirelessly sent to the Job Link System via the long range JL2 Transmitter. Email reports and store them in the cloud for future reference.
Plus, now you can document both power and system efficiency (SEER and EER) in Job Link with the wireless clamps and wireless psychrometer.
- 3-Phase Rotation Testing with Two Leads
- Record Motor Start up with Inrush Current
- Non-contact Voltage and One Handed Testing
- Backlit Display
- Strong Magnetic Hanger
- Swivel-head, Lead Storage, and Jaw Light (SC660)
- DC Amps (SC660)
- Dual Temp for Delta-T Calculations (SC660)
| Function | Range |
Best Accuracy/Best Resolution |
| Wireless | 1 to 75ft |
|
| Volts AC | 600 |
1.2%±10 / 0.0001 |
| Amps AC | 400 |
2.0%±10 / 0.01 |
| Volts DC | 600 |
0.5%±5 / 0.0001 |
| Amps DC | 400 |
2.0%±10 / 0.01 |
| Ohms | 50M |
1.0%±5 / 0.01 |
| Microfarads | 10000 |
3%±5 / 0.00001 |
| Hz (clamp) | 10 to 400 |
0.1%±5 / 0.1 |
| Hz (leads) | 10 to 1M |
0.1%±5 / 0.01 |
| Duty Cycle % | 5 to 95 |
2%±10 / 0.1 |
| °F | -58°F to 2372°F |
±1°F* / 0.1 |
| Phase Rot. | 80±5 to 600VAC |
1.5%±10 / 0.1 |
| Battery | 9V, 100 hrs Typical Alkaline (no backlight or wireless) |
|
