FLIR VP40 Non-Contact Voltage Detector and Flashlight, 90-1000VAC
Item #:
FL-VP40
Brand:
FLIR
Share this product:

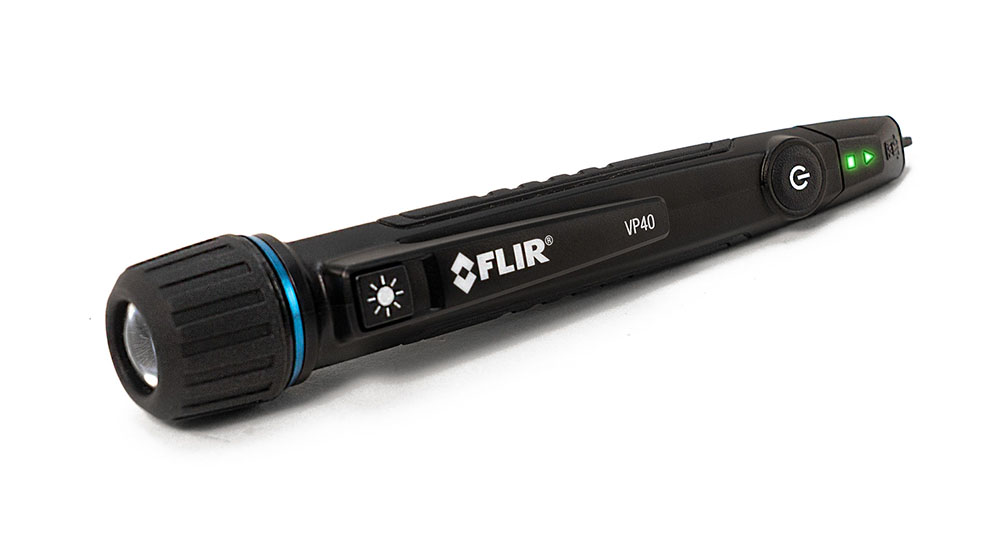

VP40 Non-Contact Voltage Detector and Flashlight, 90-1000VAC by FLIR
The FLIR VP40 is a high-quality non-contact AC voltage detector (NCV) and flashlight that offers high-end features, making it the best value product in its category. The reliable, durable detector includes a bright flashlight, a vibration feedback alarm, and a CAT IV safety rating. Use it to identify live and neutral wires in sockets and junction boxes, and to trace live and neutral wires without contact. The VP40 is the right choice for field-troubleshooting and verification of electrical installations within residential, commercial, and industrial buildings.
RUGGED AND RELIABLE

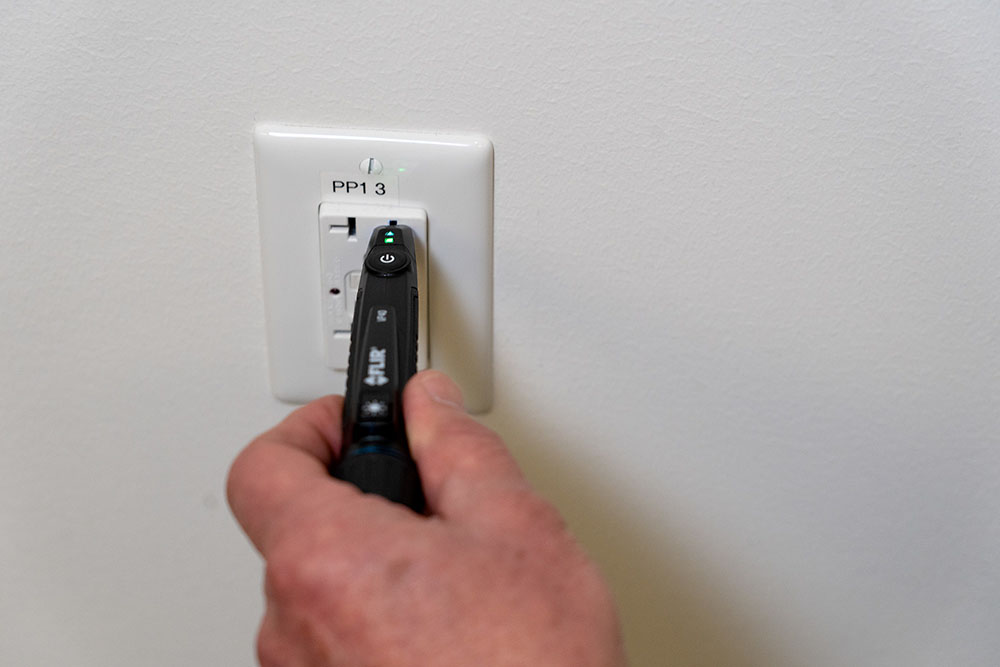

- Detect voltage in the latest safety outlets

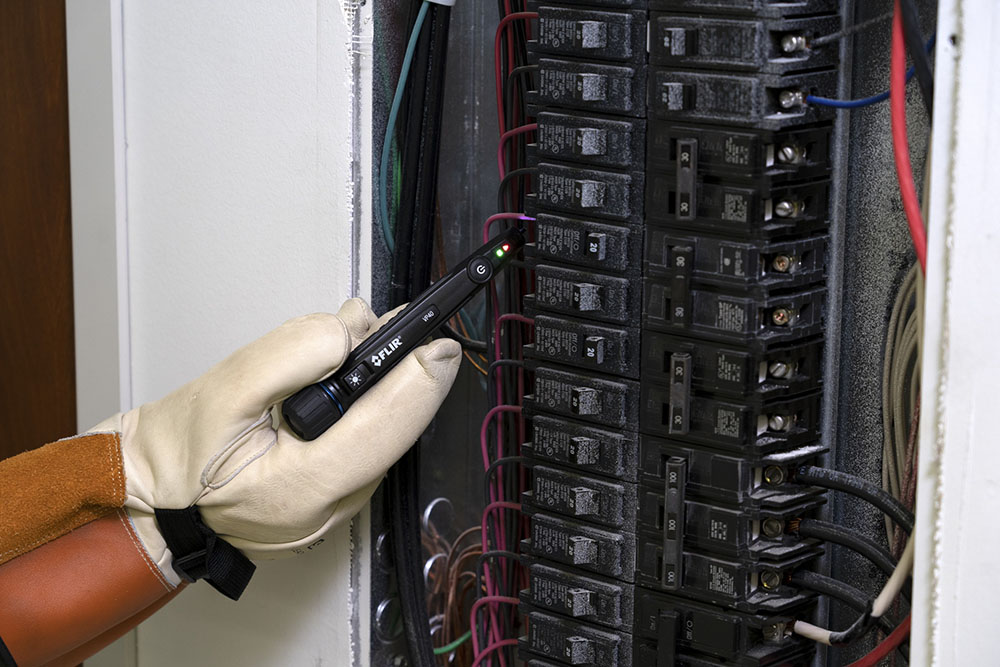

- Detect voltage in electrical systems in large industrial facilities and residential low-voltage installations
- Never miss voltage presence with the tactile vibration and LED alarms – even in dark or noisy areas
- Durable to withstand a 3 m drop
EASY TO USE
- Avoid touching live wires with NCV technology
- Reduce risk of dropping the VP40 with double molded slip-resistant grip and an anti-roll case
- Place the sensor closer to electrical sources with the low-profile probe tip
TROUBLESHOOT QUICKLY

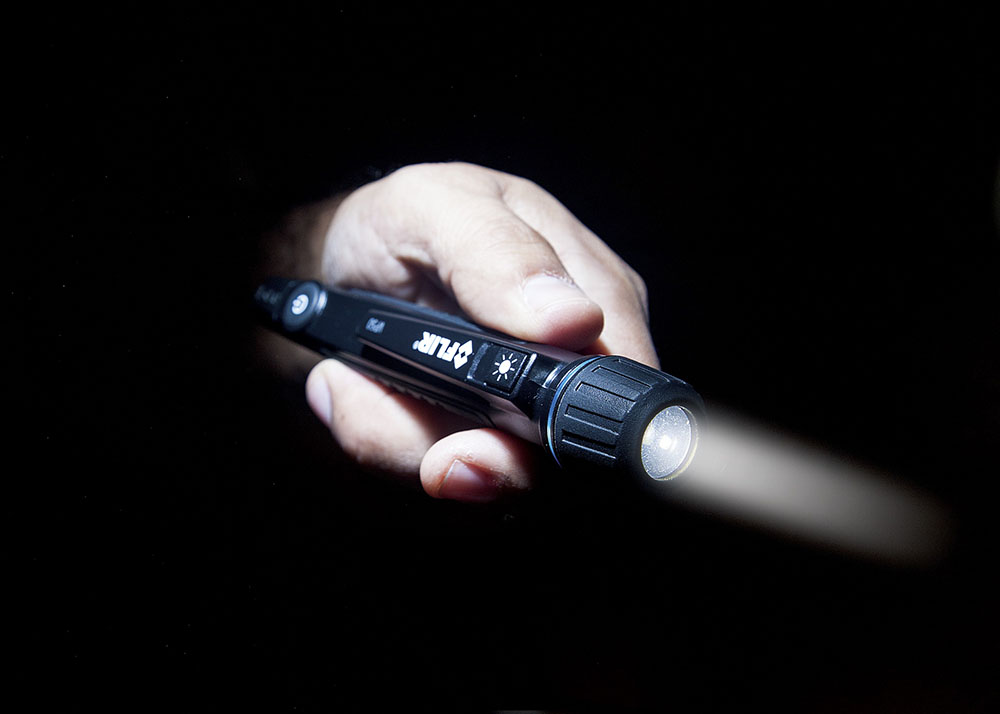

- Execute tasks efficiently with the bright flashlight and tip light to see target area
- Eliminate interruption from a dead battery with the low-battery indication feature
- Maximize battery life with the 'auto power off' feature
Measurement | |
AC Voltage Range (default, solid green light) | 90 to 1000 V AC |
AC Excitation Voltage / Distance | 90 V AC minimum / 1 cm (0.4 in) |
Frequency Range | 45 to 65 Hz |
High-Sensitivity Mode (solid amber light) | 24 to 1000 V AC |
Meter Data | |
Flashlight | Yes |
Tip Light | Yes |
Category Rating | CAT IV-1000 V |
Warranty | Limited 3-year |
General Information | |
Certifications | UL, cUL, RCM |
Power System | |
Power Requirements | 2 × AAA alkaline batteries |
Battery Life | ~7 hours continuous (flashlight off) |
Low Battery Voltage | Status LED flashes amber color |
Auto Power Off | After 3 minutes of inactivity |
Environmental Data | |
Drop Test | 3 m (9.8 ft) |
Operating Ambient Temperatures | 0 to 60°C (-32 to 140°F) |
Storage Temperature | -40 to 90°C (-40 to 194°F) |
Physical Data | |
Weight | 0.20 kg (0.44 lb), including batteries |
Dimensions (H × W × L) | 29 × 26 × 156 mm (1.1 × 1.0 × 6.1 in) |
