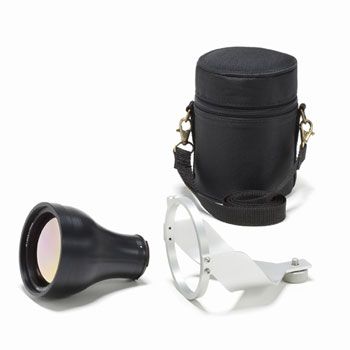

FLIR 6° Lens with Case and Mounting Support - T197408

T197408 6° Lens with Case and Mounting Support by FLIR

A narrow FOV lens like this is used when you need to keep a safe distance from the object you're monitoring, yet still see it clearly. Extreme heat or the need for an added degree of safety when working around energized components can create this situation.

Features

• Field of view: (FOV) 6° × 4.5°
• Minimum focus distance: 4 m (13.11 ft.)
• Focal length: 76 mm (3.0 in.)
• Spatial resolution (IFOV): 0.53 mrad/0.33 mrad
• F-number: 1.3
• Number of lenses: 3 (3 asph)
• MTF @ 70% of FOV: Normal requirements (52%)
• Distortion: 3%
• Weight: Lens: 0.328 kg (0.723 lb.)
• Support: 0.099 kg (0.218 lb.)
• Size (L × D): 106 × 89 mm (4.17 × 3.48 in.)
• Mounting support for T/B-200/400 IR cameras
