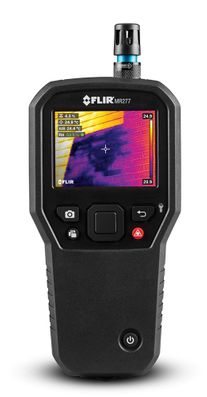

FLIR MR277 Building Inspection System with Moisture Psychrometer & MSX IR Camera
Item #:
FL-MR277
Brand:
FLIR
Share this product:

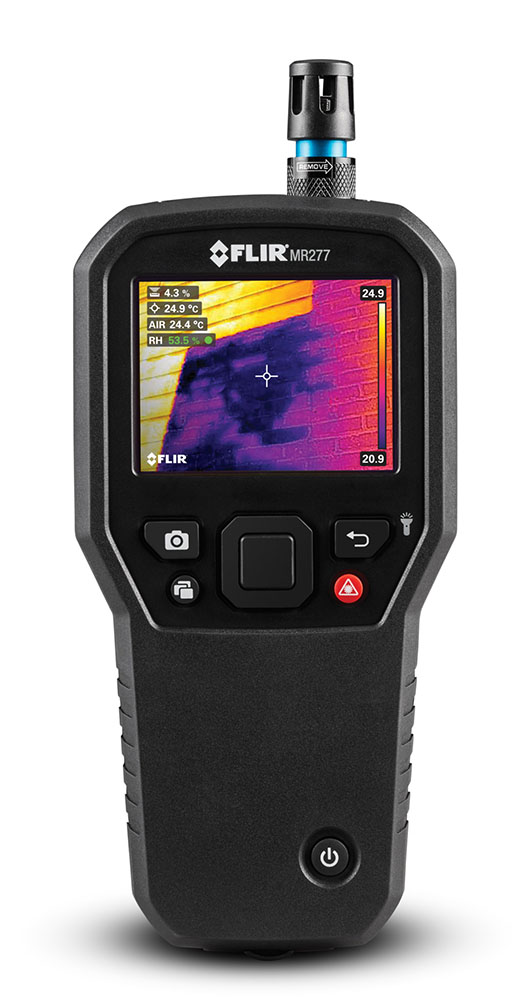

MR277 Building Inspection System with Moisture Psychrometer & MSX IR Camera by FLIR
The FLIR MR277 is an accurate, easy-to-use, all-in-one tool for quickly locating moisture and building envelope issues. This professional moisture meter combines the advantages of Infrared Guided Measurement (IGM™) with FLIR Multi-Spectral Dynamic Imaging (MSX®) and advanced environmental sensors to help you locate, identify, and document problems. The integrated pinless moisture sensor provides fast, non-invasive readings which you can then confirm with the external pin probe. Features such as the built-in hygrometer and the field-replaceable temperature/relative-humidity sensor expedite troubleshooting, while METERLiNK® allows you to connect to mobile devices and upload data to the FLIR Tools® app for reporting.
LOCATE BUILDING PROBLEMS FASTER
- Clearly see areas of concern with a high-performance 160 × 120 thermal imaging sensor
- Quickly find suspected problems with IGM technology
- Easily identify both the context and the issue with MSX, which embosses visual details on full thermal images
- Target the exact source of problems with the integrated laser pointer
DIAGNOSE EFFICIENTLY AND ACCURATELY
- Quickly scan for moisture with the integrated non-invasive pinless sensor
- Capture exact measurements with an external pin probe (included) and wide range of optional moisture probes
- Reduce downtime with field-replaceable temperature/humidity sensor
- Calculated parameters based on multi-sensor input: grains per pound or grams per kilogram, vapor pressure, and dew point
DO MORE IN LESS TIME
- Create a single file documenting comprehensive thermal and visual imagery with hygrometer readings and laser location
- Download images and data wirelessly or using the included USB cable
- Analyze images and quickly generate reports with free FLIR Tools software
- Easy to use with intuitive interface
| Thermal imaging | |
| Thermal image resolution | 160 × 120 (19,200 pixels) |
| Spectral response | 8 μm to 14 μm |
| Field of view (W × H) | 55° × 43° |
| Sensitivity | <70 mK |
| Object temperature range | 0°C to 100°C (32°F to 212°F) |
| Image update speed frequency | 9 Hz |
| Image modes and displays | |
| Thermal image palettes | Iron, Rainbow, Arctic, White-hot, Black-hot |
| MSX® | Adds visual details to full resolution thermal image |
| Image modes | Thermal, visual, MSX® |
| Internal memory | 8 GB |
| Image gallery | Yes |
| Display type | QVGA (320 × 240 pixels) 2.8 in. color TFT graphical display |
| Moisture measurements | |
| Pin moisture range | 7% to 100% |
| Pin moisture accuracy | ±1.5%, 7 to 30% Reference only: 30 to 100% |
| Pin moisture groups | 11 material groups |
| Pinless moisture range and accuracy | 0 to 100; relative |
| Pinless measurement depth | Max of 19 mm (0.75 in) |
| Measurement resolution | 0.1 |
| Response time pinless mode | 100 ms |
| Response time pin mode | 750 ms |
| Environmental measurements | |
| Relative humidity range | 0% to 100% RH |
| Relative humidity basic accuracy | ±2.5% |
| Relative humidity detailed accuracy | ±4.7% (0% to 10% RH), ±2.5% (10% to 90% RH), ±4.7% (90% to 100% RH) |
| Air temperature range | 0°C to 50°C (32°F to 122°F) |
| Air temperature accuracy | ±0.6°C (±1.1°F) |
| Dew point | -30°C to 50°C (-22°F to 122°F) |
| Dew point basic accuracy | ±1.0°C (±1.8°F) |
| Vapor pressure | 0 to 12.0 kPa |
| Vapor pressure basic accuracy | ±0.05 kPa |
| Mixing ratio range | 0 to 80.0 g/kg (0 to 560 GPP) |
| Mixing ratio basic accuracy | 0.25 g/kg (±2 GPP) |
| General information | |
| Saved image file format | Radiometric jpeg |
| Stored image capacity | 15,000 Images |
| Digital camera | 2 MP |
| Digital camera field of view (FOV) | 83° (70.5° HFOV × 56° VFOV) |
| Language options | 22 |
| Laser type | Visible class 2, single laser pointer to center of thermal image |
| Power system | |
| Continuous run time | 16 hours maximum |
| Typical usage | 4 work weeks |
| Auto power off | Programmable: off, 1, 5, or 20 minutes |
| Battery | Rechargeable 4.2 V, 5400 mAh LiPo |
| Certifications | |
| Certification standards | EN 61326 (EMC), EN 60825-1 Class 2 (laser), IEC61010-1 |
| Agency approvals | CE, FCC Class B, RCM |
| Environmental and physical data | |
| Operating temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage temperature | -20°C to 45°C (-4°F to 113°F) |
| Operating humidity | 5% to 95% |
| Storage humidity | 90% relative humidity (no condensation) |
| Drop test | 2 m (6.6 ft) |
| Weight: | 406 g (14.3 oz) |
| Size (L × W × H) | 16 × 8.5 × 4.4 cm (6.2 × 3.3 × 1.7 in) |
| Shipping information | |
| Packaging contents | FLIR MR277, FLIR MR13 Replaceable Temperature and Relative Humidity Sensor, FLIR MR02 Standard Moisture Pin Probe, quick start guide, international USB charger, USB cable, and lanyard |
