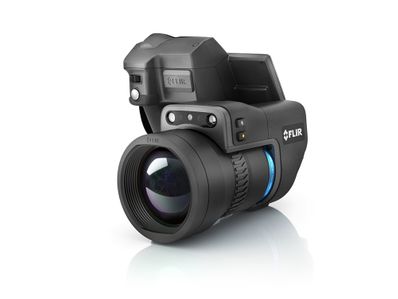

FLIR T1010 IR Camera 1024 x 768 Resolution/30Hz with 45° Lens with FLIR Thermal Studio Pro - 12 Month Subscription - 72502-0503
Item #:
FL-72502-0503
Brand:
FLIR
Share this product:
72502-0503 T1010 IR Camera 1024 × 768 Resolution/30Hz with 45° Lens with FLIR Thermal Studio Pro - 12 Month Subscription by FLIR
The FLIR T1010 and T1020 offer remarkable temperature measurement range, up to 3.1 MP resolution, and a modern, intuitive graphical user interface (GUI) that will streamline your workday. Features such as MSX® and 1-Touch Level/Span enhance image quality and contrast, so you can interpret images on-screen and make crucial decisions in the field. When paired with FLIR OSX™ Precision HDIR optics, these true HD cameras measure temperature with the highest accuracy and deliver stunning image quality. For the sharpest images, the truest temperatures, and the most flexibility, T1K cameras are the tool of choice for the thermography expert.
Outstanding Image Clarity
- Get the best resolution of any FLIR hand-held camera with the T1K's 1024 × 768 detector
- Detect subtle temperature differences, down to <0.01°C, that may signal an electrical or mechanical problem
- Record smooth, low-noise images that are easy to interpret with FLIR Vision Processing™, featuring MSX, UltraMax®, and proprietary adaptive filtering algorithms
Exceptional Measurement Performance
- Pinpoint small temperature anomolies from farther away with FLIR's highfidelity OSX Precision HDIR lenses
- Enhance measurement accuracy with UltraMax, which improves the distance to spot-size ratio
- Monitor electrical and mechanical systems with a variety of temperature conditions thanks to measurement ranges up to 2000°C (3632°F)
Designed for the Expert User
- Navigate screens and set up work folders easily with intuitive, rapid-response GUI
- Adjust images and improve measurements in the camera with features such as 1-Touch Level/Span
- Capture full-resolution, full-frame radiometric video for comprehensive analysis
- Analyze thermal images and report findings easily with included FLIR Tools+ software
Specifications | T1010 |
IR Resolution | 1024 × 768 (786,432 pixels) |
UltraMax® | 3.14 Mpixels |
Thermal Sensitivity/NETD | <25 mK @ 30°C (86°F) |
Field of View (FOV) | 45° × 34° (21 mm lens), 28° × 21° (36 mm lens), 12° × 9° (83 mm lens) |
F-Number | f/1.2 |
Lens Identification | Automatic |
Image Frequency | 30 Hz |
Focus | One-shot, manual |
Digital Zoom | 1-8x continuous |
Detector Data | |
Detector Type and Pitch | Uncooled microbolometer, 17 μm |
Spectral Range | 7.5 – 14.0 μm |
Image Presentation and Modes | |
Display | 4.3', 800 × 480 pixel capacitive touch screen with auto-orientation |
Viewfinder | - |
Digital Camera | 5 MP with built-in LED |
Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava, |
Image Modes | Infrared, visual, MSX |
Picture-in-Picture | - |
Time-lapse (Infrared) | - |
Measurement and Analysis | |
Object Temperature Range | -40°C to 150°C (-40°F to 302°F), 0°C to 650°C (32°F to 1200°F) |
Accuracy | ±2°C (±3.6°F) or ±2% of reading at 25°C (77°F) |
Alarms | - |
Measurement function alarm | - |
Compass, GPS | - |
METERLiNK® | - |
Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
Spotmeter | 1 |
Area | 1 box with max/min/avg |
Laser Pointer | Dedicated button |
Data Storage and Streaming | |
Storage Media | Removable SD card |
Image File Format | Standard JPEG with measurement data included |
Radiometric IR Video Recording | - |
Non-Radiometric IR or Visual Video | H.264 to memory card |
Radiometric IR Video Streaming | Yes, over USB |
Non-Radiometric IR Video Streaming | H.264 over USB |
Video Out | - |
Additional Data | |
Battery Type | Rechargeable Li-ion battery |
Battery Operating Time | Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical use |
Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
Shock/Vibration/Encapsulation; Safety | 25 g / IEC 60068-2-29, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1 |
Tripot Mounting | UNC ¼"-20 |
Weight/Dimensions w/o Lens | 2.1 kg (4.6 lbs), 16.7 × 20.5 × 18.8 cm (6.6 × 8.0 × 7.4 in) |
Box Contents | |
Infrared camera with lens, battery (2 ea) battery charger, neck strap, hard transport case, lens cap, power supplies, SD card, cables (Std A to Micro-B USB, HDMI to HDMI), FLIR Tools+, printed documentation |
