FLIR AX8 Sensor - 71201-0101
Item #:
FL-71201-0101
Brand:
FLIR
Share this product:

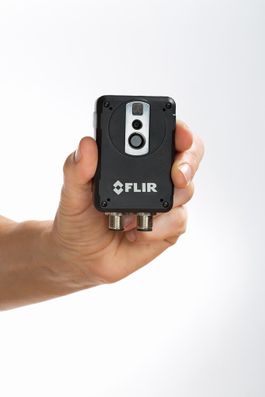

71201-0101 AX8 Sensor by FLIR
Gain an entirely new view of your vessel's mechanical system with the new FLIR AX8 thermal monitoring camera. Combining thermal and visible cameras in a small, affordable package, the AX8 integrates with Raymarine multifunction displays (MFDs) and sends audible and visual alerts when the temperature of machine parts rise above preset thresholds. Keep a watchful eye on such critical equipment as engines, exhaust manifolds, and shaft bearings and spot problems before they leave you stranded on the water. And FLIR's exclusive MSX® imaging blends visible and thermal images for more detailed imagery that is easier to understand.
Spot Potential problems before they happen
- State-of-the-art thermal monitoring of engines and onboard machinery
- Powered by Lepton, FLIR’s most advanced micro thermal camera
- Exclusive Multi-Spectral Dynamic Imaging (MSX®) for easy-to-understand thermal imagery
On Board Thermal Alarming and Visual Analysis
- Stream live thermal video of exhaust manifolds, propeller shafts, electrical panels, and other machinery
- Program specific areas to generate automated spot alarms when temperatures exceed pre-set thresholds
- Evaluate ongoing temperature trends
- Help avoid costly repairs and unwanted breakdowns
Raymarine Integration
- View thermal, visible, and MSX video imagery on Raymarine LightHouse II™ MFDs
- Continuous thermal monitoring with audible and visual alarms across the Raymarine network
- Connect up to eight AX8 cameras using Ethernet
- View and record thermal video and snapshots from any Raymarine display on the network
- Easy setup and alarm programming with a PC and web browser
Imaging & Optical Data | |
IR resolution | 80 x 60 pixels |
Thermal sensitivity/NETD | < 0.10°C @ +30°C (+86°F) / 100 mK |
Field of view (FOV) | 48° x 37° |
Focus | Fixed |
Detector data | |
Detector type | Focal Plane Array (FPA), uncooled microbolometer |
Spectral range | 7.5-13 μm |
Visual camera | |
Built-in digital camera | 640 x 480 |
Digital camera, FOV | Adapts to the IR lens |
Sensitivity | Minimum 10 Lux without illuminator |
Measurement | |
Object temperature range | -10°C to +150°C (14°F to 302°F) |
Accuracy | ±2°C (±3.6°F) or ±2% of reading (+10 to +100C@+10 to +35 amb) |
Measurement analysis | |
Spotmeter | 6 |
Area | 6 boxes with max./min./average |
Automatic hot/ cold detection | Max/Min temp. value and position shown within box |
Measurement presets | Yes |
Atmospheric transmission correction | Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
Optics transmission correction | Automatic, based on signals from internal sensors |
Emissivity correction | Variable from 0.01 to 1.0 |
Reflected apparent temperature correction | Automatic, based on input of reflected temperature |
External optics/ windows correction | Automatic, based on input of optics/window transmission and temperature |
Measurement corrections | Global object parameters |
Alarm | |
Alarm functions | Automatic alarms on any selected measurement function. A maximum of 5 alarms can be set |
Alarm output | Digital Out, store image, file sending (ftp), email (SMTP), notification |
Set-up | |
Color palettes | Color palettes (BW, BW inv, Iron, Rain) |
Set-up commands | Date/time, Temperature °C/°F |
Web interface | Yes |
Storage of images | |
Storage media | Built-in memory for image storage |
Image storage mode | IR, visual, MSX |
File formats | JPEG+FFF |
Ethernet | |
Ethernet | Control, result and image |
Ethernet, type | 100 Mbps |
Ethernet, standard | IEEE 802.3 |
Ethernet, connector type | M12 8-pin X-coded |
Ethernet, video streaming | Yes |
Ethernet, power | Power over Ethernet, PoE IEEE 802.3af class 0. |
Ethernet, protocols | Ethernet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour) |
Image streaming | |
Image streaming formats | Motion JPEG, MPEG, H.264 |
Image streaming resolution | 640 x 480 |
Image modes | Thermal, Visual, MSX (IR-image with enhanced detail presentation) |
Automatic image adjustment | Continuous |
Power system | |
External power operation | 12/24VDC, 2 W continuously/ 3.1 W absolute max |
External power, connector | M12 8-pin A-coded (Shared with digital I/O) |
Voltage Allowed range | 10.8-30VDC |
Environmental data | |
Operating temp. range | 0°C to +50°C (32°F to +122°F) |
Storage temp. range | -40°C to +70°C (-40°F to +158°F) IEC 68-2-1 and IEC 68-2-2 |
Humidity (operating and storage) | IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)/ 2 cycles |
EMC | EN 61000-6-2:2001 (Immunity) EN 61000-6-3:2001 (Emission) FCC 47 CFR Part 15 Class B (Emission) |
Encapsulation | IP67 (IEC 60529) |
Bump | 25 g (IEC 60068-2-29) |
Vibration | 2 g (IEC 60068-2-6) |
Physical data | |
Camera size (L x W x H) | 54 x 25 x 79 mm (2.1 x 1 x 3.1 in.) w/o connectors 54 x 25 x 95 mm (2.1 x 1 x 3.7 in.) w/ connectors |
Shipping information | |
Packaging | Infrared camera with lens, printed documentation, user documentation CD-ROM |
