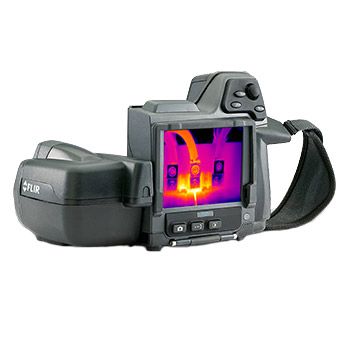

FLIR T440 IR Camera with Standard and 15° Lens (15°, f=30mm), Case - 62103-1301-KIT-15
Item #:
FL-62103-1301-KIT-15
Brand:
FLIR
Share this product:
62103-1301-KIT-15 T440 IR Camera with Standard and 15° Lens (15°, f=30mm), Case by FLIR
Features
- Superior Thermal Imaging: Sharp thermal resolution at 76,800 pixels for solid accuracy from farther away
- MSX® Enhancement: Multi-Spectral Dynamic Imaging adds visible spectrum definition to IR images in real time for excellent thermal detail to help you instantly recognize the problem locations
- Field of View (FOV) Match: Now you have the option to automatically match the visible camera field of view to the IR FOV for better documentation
- Compass: Adds camera pointing direction to every image for additional location documentation
- Wi-Fi Connectivity: Send images and data to smart phones and tablets (ie. iPhone®, iPad®, iPod touch® , or Android™) to share images and critical information quickly using FLIR Tools Mobile app
- Accurate Temperature Measurements: Accuracy calibrated within ± 2°C or ± 2% of reading
- High Temperature Range: measuring up to 2192°F (1200°C) targeting electrical and industrial applications (T440 model)
- Scalable P-i-P and Fused Thermal Images: Blend thermal with visible light images on-screen; includes picture-in-picture window sizing
- Multiple Measurements: Add up to 5 box areas and 5 moveable spots using the touchscreen to gather more detailed information
- METERLiNK®: Wirelessly transmit vital diagnostic data from clamp and moisture meters directly to the camera for annotating thermal images to further support findings.
- Annotation: Add voice comments via Bluetooth headset and text notes from the touchscreen keypad; New! T440 has image sketch feature to draw circles and pointers on IR/Visual stored images
- InstantReport: Create PDF document directly from the camera
Includes
- SD Memory Card
- 100-260V AC adaptor/charger
- Two Li-Ion rechargeable batteries
- 2-bay battery charger
- Power supply (with multi-plugs)
- FLIR Tools software
- USB cable
- Video cable
- Sun shield
- Bluetooth® headset
- Lens cap
- Neckstrap
- Hard case
| Features | FLIR T420 | FLIR T440 |
| Temperature range | -4°F to 1202°F (-20°C to 650°C) | -4°F to 2192°F (-20°C to 1200°C) |
| Zoom | 4X Continuous | 8X Continuous |
| LCD Image Sketch | — | Draw on stored images right on touchscreen |
| Multi-Spectral Dynamic Imaging (MSX) | IR image with enhanced detail presentation | IR image with enhanced detail presentation |
| Measurement Presets | — | Presets for standard measurements |
| Profile Measurement Analysis | — | Shows a live graph of temperatures across a line on the image |
| Common Features | ||
| Frame Rate | 60Hz | |
| Field of view/Minimum focus distance/FOV Match | 25° x 19° / 1.31ft (0.4m) / Field of View Match where Digital Image FOV adapts to the IR lens | |
| Focus | Manual/Automatic | |
| Thermal sensitivity (N.E.T.D) | <0.045°C at 30°C | |
| Detector Type - Focal plane array (FPA) uncooled microbolometer | 320 x 240 pixels | |
| Spectral range | 7.5 to 13µm | |
| Compass | Adds camera pointing direction to each image | |
| Display | Built-in touch-screen 3.5" color LCD | |
| Image modes | Thermal/Visual/Fused thermal image/P-i-P/MSX (Resizable and movable) and Thumbnail Gallery | |
| Image Storage | 1000 radiometric JPEG images (SD card memory) | |
| Image annotation | Voice (60 sec); text comments, Sketch, image markers on IR | |
| Periodic image storage | 7 seconds to 24 hours (IR) and 14 seconds to 24 hours(IR and visual) | |
| Lens | 25° (optional 6°, 15°, 45°, 90°, Close up 100, 50µm lenses available) | |
| Video Lamp | Bright LED lamp | |
| Laser Classification/Type | Class 2/Semiconductor AlGalnP Diode Laser: 1mW/635nm (red) | |
| Set-up controls | Mode selector, color palettes, configure info to be shown in image, local adaptation of units, language, date and time formats, and image gallery | |
| Measurement modes | 5 Spotmeters, 5 Box areas, Isotherm, Auto hot/cold spot, Delta T | |
| Measurement correction | Reflected ambient temperature & emissivity correction | |
| Video Recording in Camera and Video Streaming | Non-radiometric IR-video recording (MPEG-4 to memory card), Radiometric IR-video streaming (Full dynamic to PC using USB or Wi-Fi), and Non-radiometric IR-video streaming (MPEG-4 using Wi-Fi and uncompressed colorized video using USB) | |
| Instant Report | Create a Thermographic Inspection report directly in the camera | |
| Battery Type/operating time | Li-lon/ >4 hours, Display shows battery status | |
| Charging system | In camera AC adapter/2 bay charging system | |
| Shock / Vibration | 25G, IEC 60068-2-29 / 2G, IEC 60068-2-6 | |
| Dimensions/Weight | 4.2x7.9x4.9" (106x201x125mm)/1.94lbs (0.88kg), including battery | |
| 2-5-10 Warranty | When the camera is registered within 60 days: 2 years on Parts/Labor for the Camera; 5 years of Coverage on Batteries; 10 years of Protection on the IR Detector | |
