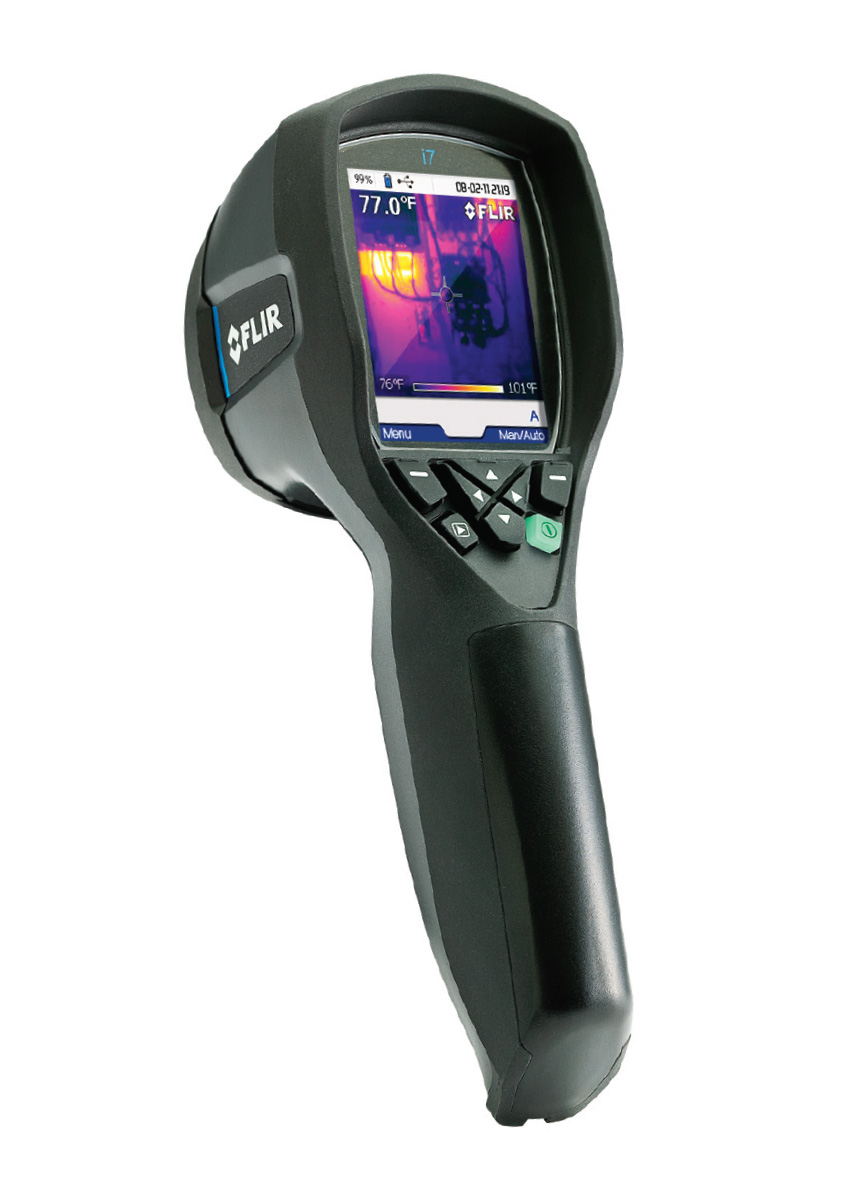

FLIR i7 IR Camera 140 x 140 Resolution/9Hz - 60101-0301
Item #:
FL-60101-0301
Brand:
FLIR
Share this product:
60101-0301 FLIR i7 IR Camera 140 x 140 Resolution/9Hz by FLIR
More powerful than ever, FLIR's upgraded i-Series improves your infrared camera options with a new line of strong choices to better fit the level of detail your work requires. Featuring the new FLIR i7, now with 36% higher thermal resolution than before and a wider 29° field of view to help you image more clearly and scan more quickly.
All FLIR i-Series infrared cameras help you catch problems immediately, diagnose them correctly, and work far more efficiently. Use the FLIR i3, i5, and i7 to perform energy audits, find moisture damage, spot mechanical wear, check for electrical overloading, justify repairs, and minimize downtime.
Features
- The Entire Scene in Every Shot: Thousands of temperature measurements captured and stored in each thermal image show you the complete picture instantly – something a spot temp gun just can't do.
- Excellent Screen Size & Quality: The high-resolution 2.8" color LCD provides the clarity to help you find potential problems fast – another thing an IR thermometer doesn't offer.
- Data You Can Count On: FLIR's outstanding thermal accuracy (± 2% or 2°C) and broad measurement range (-20°C to 250°C) produce excellent, reliable results
- Easy-to-use, Rugged Design: Light and compact with a focus-free lens for one-handed operation yet tough enough to stow with the rest of your tools and take a 2 meter drop.
- A New Range of Resolutions: Choose the entry level FLIR i3 with 3,600 pixels per image, the FLIR i5 now with 10,000, or the new FLIR i7 that exceeds RESNET resolution standards.
- Fully Radiometric Images: Store up to 5,000 JPEG image files with all your temperature measurements right onto the camera's SD card for future analysis, downloads and reports.
- FLIR Tools & More: Every FLIR i-Series camera includes free PC software for creating customized reports, plenty of memory, and a hard carrying case.
- Unmatched Warranty: FLIR's exclusive Double Diamond protection covers the whole camera for 2 years, the battery for 5, and the detector for 10 full years.
- The Most Affordable Thermal Imaging: One thing that's stayed the same is price; starting at under $1,200 for the i3, FLIR i-Series cameras are the best value out there.
Includes
- 2G miniSD Card with adaptors
- Li-Ion rechargeable battery with 100-240V AC adaptor/charger with EU, UK, US and Australian plugs
- Mini USB cable
- FLIR Tools reporting software
- Built-in manual lens shutter
- Hard case
FEATURES | FLIR i3 |
FLIR i5 |
FLIR i7 |
Thermal sensitivity (N.E.T.D) | <0.15°C at 25°C |
<0.1°C at 25°C |
<0.1°C at 25°C |
Field of view/min focus distance | 12.5° x 12.5°/0.6m (2 ft.) |
21° x 21°/0.6m (2 ft.) |
29° x 29°/0.6m (2 ft.) |
Detector Type - Focal plane array (FPA) uncooled microbolometer | 60 x 60 pixels |
100 x 100 pixels |
140 x 140 pixels |
Measurement modes | Spot |
Spot |
Spot, Area (Max/Min) |
Isotherm | — |
— |
Above/Below |
COMMON FEATURES | |||
Temperature range | -4°F to 482°F (-20°C to 250°C) |
||
Image Storage | 5000 Images (microSD card memory) |
||
Emissivity | Emissivity Table; 0.1 to 1.0 adjustable |
||
Frame Rate | 9Hz |
||
Focus | Focus free |
||
Spectral range | 7.5 to 13µm |
||
Display | Built-in 2.8" color LCD |
||
Image modes | Thermal - Palettes (Iron, Rainbow, and Black/White) |
||
Set-up controls | Date/time, °C/°F, 21 languages |
||
Battery Type/operating time | Li-lon/ >5 hours, Display shows battery status |
||
Charging system | In camera, AC adapter; 3 hours to 90% capacity |
||
Shock/Vibration/Drop / Encapsulation; Safety | 25G, IEC 60068-2-29 / 2G, IEC 60068-2-6 / Drop-proof 2m (6.6ft) IP43; UL, CSA, CE, PSE and CCC |
||
Dimensions/Weight | 8.8x3.1x3.4" (223x79x85mm)/<12.9oz. (365g), including battery |
||
Warranty | 2/5/10 (Camera-2 years, Battery-5 years, Detector-10 years) |
