FLIR IRW InfraRed Window 4" (O.D. 5.01"/127mm) - 19252-100
Item #:
FL-19252-100
Brand:
FLIR
Share this product:

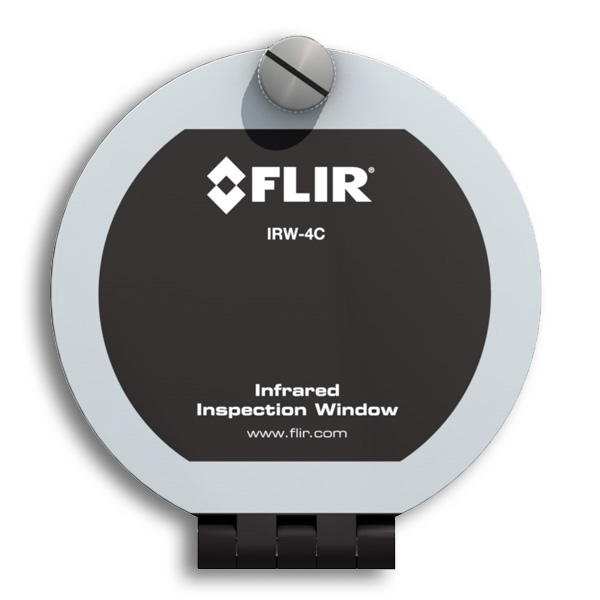

19252-100 IRW InfraRed Window 4" (O.D. 5.01"/127mm) by FLIR
Opening electrical cabinets to perform IR and visual inspections of live components is dangerous work, exposing you to the risk of a hazardous arc ash incident. Out of necessity, it's also a painstaking, time-consuming process.
Now you can put the added safety of new FLIR IR Windows between you and energized equipment to better protect yourself and eliminate the need for opening enclosures. Much easier to install and use than other brands, FLIR IR Windows help you work faster with greater confidence. Perform inspections more efficiently and reduce the threat of arc flash injury significantly so you can get more done and stay in compliance with NFPA 70E requirements.
All FLIR IR Windows feature a secure, permanently-hinged cover that opens easily with one hand, which means there's nothing to remove, drop, mix up, or lose. FLIR's broadband crystal allows cameras to capture visible light pictures as well as thermal images and lets LED and laser illumination pass straight through for clearer visual assessments.
Combine FLIR IR Windows with a FLIR thermal camera that features integrated visible light video, lamps, and a laser pointer, and you'll be set to get the job done single-handedly.
Features
Easy Installation - FLIR IR Windows install quickly and securely using the same design as common conduit connections:
- Only one hole to create for each window
- One simple PIRma-Lock™ ring nut to tighten
- Uses standard US punch tools for hole knockouts
PIRma-Lock™ Reliability - Tried and true locknut technology makes FLIR's locking ring an IR window first:
- Teeth lock tight to the inside of the panel
- Automatically grounds metal components
- No screw holes required that might later strip out

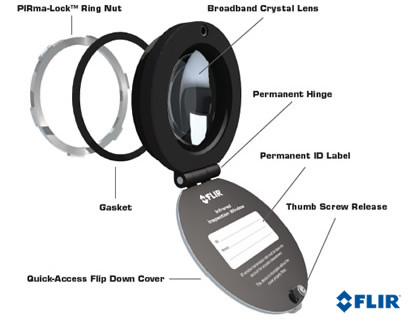

Quick Access Hinged Cover - Simple thumb screw releases the permanently-hinged IR window cover:
- Easy, fl ip-open hatch for faster scans
- Prevents dropping, mix-ups, and loss
- Inside label for permanent identifi cation
Broadband Crystal IR Window - Lens encased in rugged, anodized aluminum frame allows indoor & outdoor scans:
- Transmits short, mid and longwave IR images
- Supports visual inspections and fusion features
- Lets laser pointers and illumination shine through
Greater Productivity and ROI - Significantly reduces inspection time for more efficient assessements within NFPA 70E guidelines:
- Requires only one person instead of three
- Can reduce or eliminate need for cumbersome PPE
- Helps reduce vast majority of arc flash triggers
FLIR Integrity - FLIR backs IRW-Series windows with comprehensive testing and a limited lifetime warranty:
- Meets relevant UL, CSA, IEC, and IEEE standards/ratings
- Tested samples withstood arcs, vibration, and extreme humidity
- Limited Lifetime Warranty against manufacturer defects
General Specifications | FLIR IR Window 2" - IRW-2C |
FLIR IR Window 3" - IRW-3C |
FLIR IR Window 4" - IRW-4C |
NEMA Environment Type | Type 4/12 (outdoor/indoor) |
Type 4/12 (outdoor/indoor) |
Type 4/12 (outdoor/indoor) |
Voltage Range | Any |
Any |
Any |
Automatically Grounded | Yes |
Yes |
Yes |
Maximum Operating Temperature | 500°F/260°C |
500°F/260°C |
500°F/260°C |
Body Material | Anodized Aluminum |
Anodized Aluminum |
Anodized Aluminum |
Gasket Material | Silicone |
Silicone |
Silicone |
Hardware Material | Steel |
Steel |
Steel |
Compatable with All FLIR Cameras | Yes |
Yes |
Yes |
PIRma-Lock Installation System | Yes |
Yes |
Yes |
Cover and Fastener Permanently Attached | Yes |
Yes |
Yes |
Single-hole Installation | Yes |
Yes |
Yes |
Thumb Screw and Safety Screw Included | Yes |
Yes |
Yes |
Broadband IR: Short-, Mid-, & Longwave | Yes |
Yes |
Yes |
Visible Light Spectrum | Yes |
Yes |
Yes |
Picture-in-Picture & Fusion Image Blending | Yes |
Yes |
Yes |
Size Specifications | |||
Overall Height | 85.5mm (3.36") |
107.4mm (4.22") |
136.5mm (5.37") |
Overall Width | 73mm (2.87") |
99mm (3.89") |
127mm (5.01") |
Overall Thickness | 25.5mm (1.00") |
26.86mm (1.05") |
29.25mm (1.15") |
Required Actual Hole Diameter (Nominal) | 60.3mm (2-3/8") |
88.9mm (3-1/2") |
114.3mm (4-1/2") |
Greenlee Punch | 76BB |
739BB |
742BB |
Recommended Panel Thickness | Up to 3.2mm (1/8") |
Up to 3.2mm (1/8") |
Up to 3.2mm (1/8") |
Maximum Panel Thickness | 4.76mm (3/16") |
4.76mm (3/16") |
4.76mm (3/16") |
Optic Speci fications | |||
Optic Material | Calcium Fluoride |
Calcium Fluoride |
Calcium Fluoride |
Optic Diameter | 50mm (1.97") |
75mm (2.95") |
95mm (3.74") |
Viewing Aperture Diameter | 45mm (1.77") |
69mm (2.71") |
89mm (3.50") |
Viewing Aperture Area | 1590mm² (2.46in²) |
3739mm² (5.79in²) |
6221mm² (9.64in²) |
Optic Maximum Temperature | 1355.6°C (2474°F) |
1355.6°C (2474°F) |
1355.6°C (2474°F) |
Ratings & Testing | |||
UL Component Recognition (UL 50V) | Yes |
Yes |
Yes |
UL 50 / NEMA Environment Rating | Type 4/12 |
Type 4/12 |
Type 4/12 |
CSA Certi cation, Product Class 3211 07 | Yes |
Yes |
Yes |
Arc Flash Testing, IEC 62271-200 (KEMA) | 5kV, 63kA for 30 Cycles at 60Hz |
||
IP Rating, IEC 60529 (TUV) | IP67 |
IP67 |
IP67 |
Vibration Testing, IEC 60068-2-6 (TUV) | 100 m/s^2 Vibration Withstand |
||
Humidity Testing, IEC 60068-2-3 (TUV) | Extreme Humidity Withstand |
||
Mechanical Testing, ANSI/IEEE C37.20.2 section A3.6 (TUV) | Impact and Load Resistant Cover |
||
Maximum Pullout Strength | 657 kg (1450 lbs) |
1655 kg (3650 lbs) |
1678 kg (3700 lbs) |
Other | |||
Warranty | Limited Lifetime Warranty Against Manufacturer Defects |
