Extech TM20 Compact Temperature Indicator
Item #:
EXT-TM20
Brand:
Extech
Share this product:

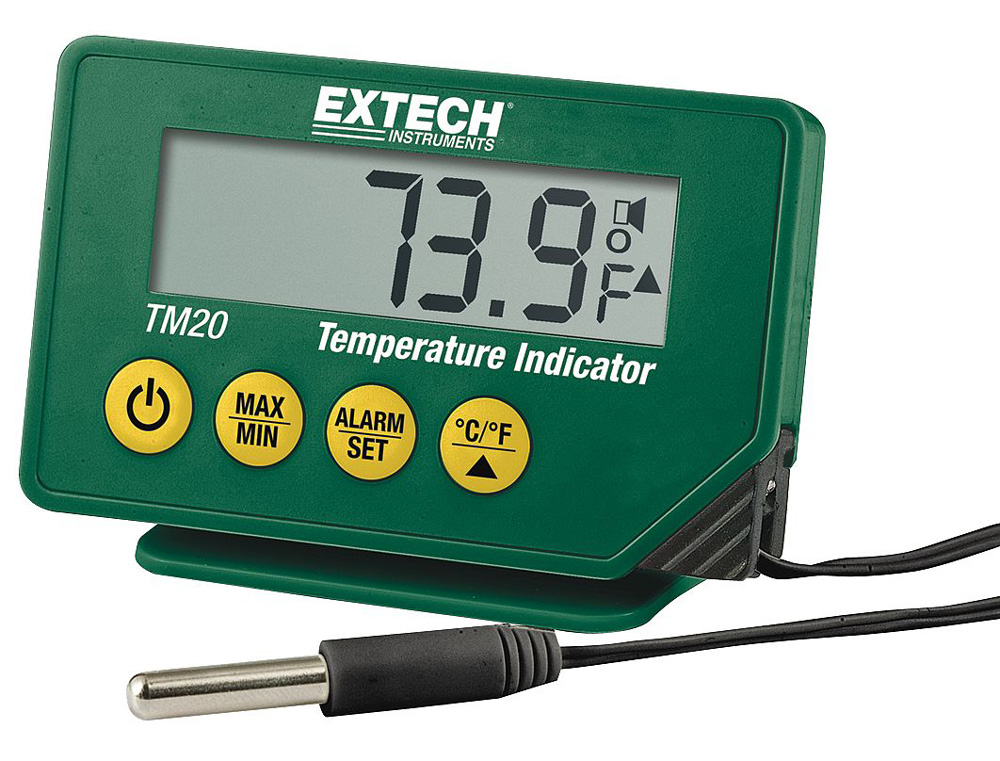

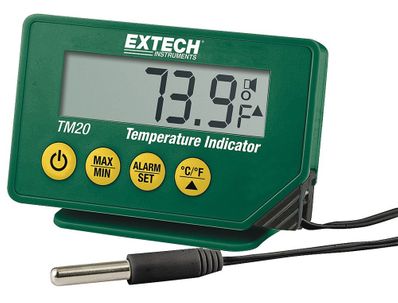

TM20 Compact Temperature Indicator by Extech
Thermometer can be used on desktops with its removable foot stand or can be mounted on wall or metal surfaces with its magnetic back. Choice of model with standard probe or long penetration probe.
Features
- Audible and visual alarm alerts when temperature level is higher or lower than the user programmed High/Low set points
- Fast response sensor measures temperature in liquids, semi-solids, and air
- LCD displays Temperature reading, alarm indicator and high or low alarm icons
- ±1.8°F/1°C basic accuracy with 0.1° max resolution
- Displays Min/Max reading with reset function
- Data Hold freezes current reading on display
- Low battery indication
- Unit has magnetic back and can be mounted on a metal surface, used on a desktop with included foot stand, or wall mounted
- Waterproof housing and sensor designed to meet IP65
- Dimensions: 3.4Lx2.2Hx1.2"D (86Lx57Hx30D mm); Weight: 3.2oz (90g)
- Complete with magentic back, foot stand, temperature sensor, and a CR2032 3V button battery
- Includes 0.78" (20mm) Stainless steel probe with 9.6ft (2.9m) cable
- Sensor measures Temperature from -40°F to 158°F (-40°C to 70°C)
Applications
- Laboratories
- Clean rooms
- Refrigerator
- Freezer
- Shipping vans
- Shipping crates
- Cargo vessels
- Storage areas
- Warehouses
Display | Multi-function LCD |
Measurement range | TM20: -40 to 70°C (-40 to 158°F) TM25: -40 to 200°C (-40 to 392°F) |
Resolution | 0.1°C/°F |
Accuracy | 0.5°C: 0o to 24°C 1.0°C: -20o to -1°C and 25o to 49°C 2.0°C: -40o to -21°C and 50o to 200 °C 0.9°F: 32o to 75°F 1.8°F: -4o to 31°F and 76o to 120°F 3.6°F: -40o to -5°F and 121o to 392°F |
Protection safety rating | IP 65 rating on meter and sensors |
Low battery indication | Battery symbol appears on the LCD |
Power supply | CR2032 3V button battery |
Meter Dimensions | 86(L) x 57(H) x 30(D) mm / 3.4(L) x 2.2(H) x 1.2(D)" |
Cable length | TM20 cable: 209m (9.6 ft.) TM25 cable: 1.5m (5 ft.) |
