Extech USB Temperature Datalogger (Pack of 10) - THD5
Item #:
EXT-THD5
Brand:
Extech
Share this product:

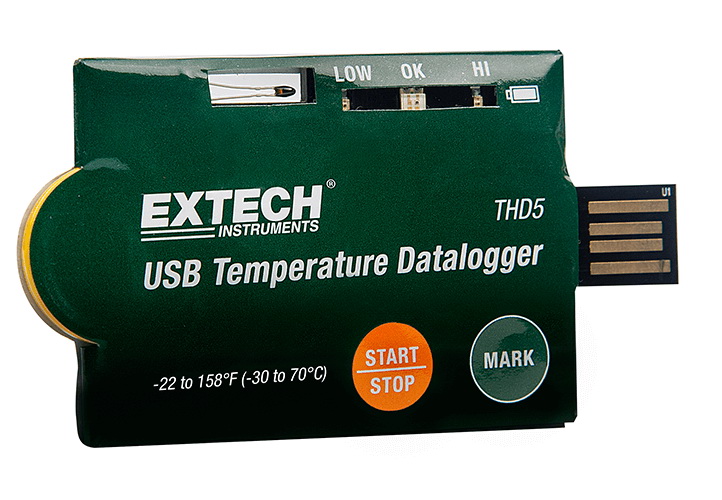

THD5 USB Temperature Datalogger (Pack of 10) by Extech
The THD5 is a set of ten one-time use USB Temperature Dataloggers. Product complete with 10 data logging units (each with a CR2032 button battery and plastic bag).
Features
- Convenient credit card-sized housing with USB 2.0 connector and NTC thermistor for one-time use in datalogging accurate temperature measurements
- Waterproof (IP65) when in sealed plastic bag
- User programmable settings: language, sample rate, start delay time, alarm delay time, high/low alarm range, and security feature
- Status Indication via Red and Green LEDs
- Start button begins continuous datalogging, which continues until memory is full at 8192 readings, or when Stop button is pressed
- Bookmark 8 locations in a data recording log with a press of the Mark button
- Automatically generates a PDF report with data and trending graph when plugged into a PC after datalogging is completed (Adobe® Reader® software is required)
- Long battery life (approx. 1 year)
- Complete with 10 datalogging units; each with a CR2032 button battery and plastic bag
Specifications | Range | Max. Resolution | Basic Accuracy |
Temperature | -22 to 158°F (-30 to 70°C) | 0.1° | ±1.8°F (1°C) |
Datalogging interval | 30sec, 5min, 10mmin, 30min, 60min, 90min, 120min | ||
Start Delay/Alarm Delay Time | 0, 5min, 30min, 45min, 60min, 90min, 120min | ||
Alarm Mode | Single Event, Cumulative, Disable | ||
Languages | English, German, French, Italian, and Spanish | ||
Memory Storage | 8,192 readings | ||
Dimensions/Weight | 3.2 x 1.7 x 0.1 (80 x 43 x 2.5mm)/ 0.4oz (10g) |
