Extech 42265 Temperature Datalogger Kit with PC Interface
Item #:
EXT-42265
Brand:
Extech
Share this product:

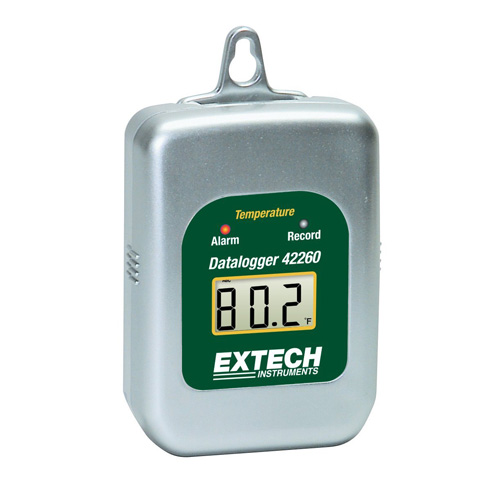

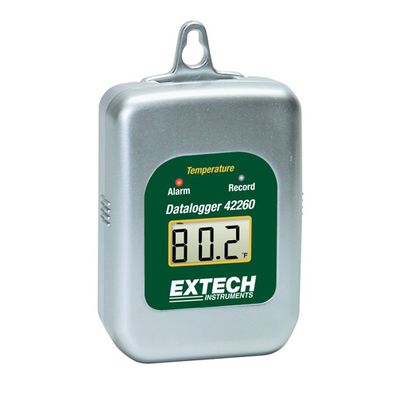

42265 Temperature Datalogger Kit with PC Interface by Extech
Compact, powerful and easy-to-use dataloggers record up to 16,000 readings. Models to choose from: Temperature (42260/42265) or Temperature and Relative Humidity Datalogger (42270/42275). Multiple Dataloggers can be programmed and data downloaded from one single docking station. USB cable and software included to easily download collected data to your PC for further analysis.
Features
- Model 42265 — Temperature Datalogger kit records up to 8000 readings
- Model 42275 — Temperature and Humidity Datalogger kit records up to 16,000 readings
- Use in storage containers, shipping vans, and freezers
- Logs data for days, weeks or months (~1yr battery life)
- Multiple Dataloggers (42260 or 42270) can be programmed and data downloaded from one single docking station
- Programmable sampling rate from 1sec to 2hrs plus Hi/Lo limits with alarm indication
- Program the logger, analyze and store data using Windows® XP, Win 7, Win 8 compatible software
- View temperature (42265) or both humidity and temperature (42275) on LCD display
- Three start methods: Scheduled, immediate, magnetic
- Real time clock stores date & time with data
- Waterproof: 42260 to IP65, Water-resistant: 42270
- Kits include one datalogger, docking station with USB cable, and software
Applications
- Clean rooms
- Freezer
- Shipping crates
- Storage areas
- Refrigerator
- Shipping vans
- Cargo vessels
- Warehouses
Display | 3-digit multi-function LCD |
Front panel status LEDs | Two (2): RECORD and ALARM |
Temperature range | -40 to 185°F (-40 to 85°C) |
Temperature resolution | 0.1o up to 99.9o ; 1°From 100o to 185o |
Temperature accuracy | ±1.2°F (0.6°C) from -4 to 122°F (-20 to 50°C) ±2.4°F (1.2°C) all other ranges |
Humidity range & accuracy | 0.0 to 99.9% Relative Humidity; Accuracy: ± 3% |
Datalogger storage | 16,000 temperature readings (8,000 temperature and 8,000 humidity readings on the 42270) |
Sampling rate | Programmable from 1 second to 12hours |
Power supply | One 3.6V ½ 'AA' lithium battery |
Battery Life | 1 year: 5 second sample rate in sleep mode 3.8 months: 24 hour sample rate in non-sleep mode |
Low battery indicator | Display shows 'LO' |
Cable length | 60’’ (150cm) |
Operating Temperature | 32 to 104°F (0 to 40°C) (docking station) |
Operating Humidity | 10 to 80% RH (docking station) |
Dimensions | 4.9 x 3.6" (124 x 92mm) |
