Extech USB Dual Temperature Datalogger - TH30
Item #:
EXT-TH30
Brand:
Extech
Share this product:

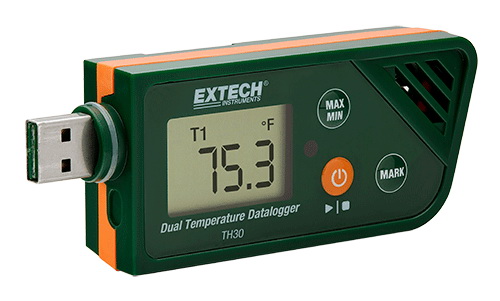

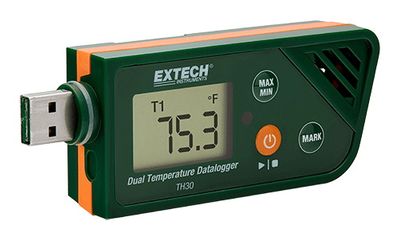

TH30 USB Dual Temperature Datalogger by Extech
Easy-to-use datalogger records T1 (Air Temperature) and T2 (External Probe Temperature - includes TP830 probe) with date/time stamp. The datalogger is designed with a rugged housing and a standard USB connector where stored readings (up to 48,000 data) are conveniently transferred to a PC in PDF or Excel® spreadsheet format when plugged in. Additional features include an 8-location logger bookmark, 6-language options, programmable sampling interval, adjustable alarm, and password-protected security log-in. Large LCD optimizes viewing and the smart LED provides color-coded temperature reading status.
Features
- Compact size housing with built-in NTC thermistor and external temperature probe designed with standard USB connector for easy data downloading to a PC
- 5-digit LCD display with battery life indicator
- User programmable settings: 6 languages, sample rate, start delay time, alarm delay time, high/low alarm range, and security feature
- Status Indication via Red and Green LEDs
- Start button begins continuous datalogging, which continues until memory is full at 48,000 readings (24,000 for each parameter: T1 and T2), or when Stop button is pressed
- Bookmark 8 locations in a data recording log with a press of the Mark button
- Long battery life (approx. 3 months)
- Generates a PDF report or Excel® spreadsheet with data and trending graph when plugged into a PC after datalogging is completed (Adobe® Reader® required)
- Max/Min function
- Includes (2) CR2032 batteries, USB cover (can be used as a stand), TP830 probe, and built-in hanger
Specifications | Range | Max. Resolution | Basic Accuracy |
Temperature (Probe and Air) | -22 to 158°F (-30 to 70°C) | 0.1° | ±1.0°F (±0.5°C) |
Datalogging interval | 30 seconds to 2 hours | ||
Memory | Air Temperature (T1): 24,000 data; External Probe Temperature (T2): 24,000 data | ||
Dimensions/Weight | 4.3x1.6x0.75" (110x40x19mm)/ 1oz (90g) |
