Description

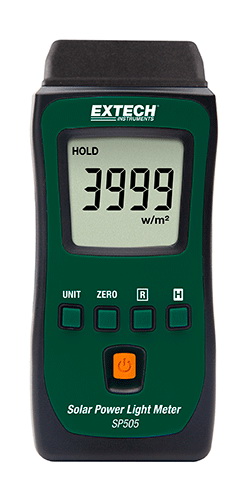

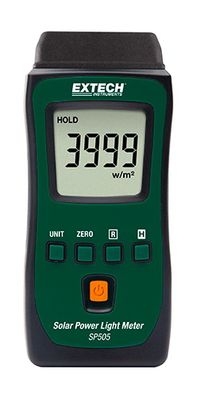

SP505 Pocket Solar Power Meter by Extech

Extech's SP505 measures solar power level from outdoor sunlight to determine the best location of solar panel and solar water heater installations. It is also used indoors by window manufacturers, automotive industry, and remodeling home owners to check the level of solar radiation transmission through various glass thicknesses and degrees of tinting to use for window installations. Convenient pocket-sized meter with built-in precision solar light sensor is easy-to-use wherever you go.

Features

Measure solar power light level in watts per square meter (W/m²) or BTU (ft²*h)
Built-in solar light sensor with precision photo diode
Zero function
Data Hold freezes current reading on display
Tripod mount (optional TR100 Tripod sold separately)
Complete with two AAA batteries and a pouch

Specifications

Specifications	Range	Max. Resolution	Basic Accuracy
Measuring Ranges	3999 W/m²	1 W/m²	±10 W/m²
Measuring Ranges	634 BTU/(ft2 *h)	1 BTU/(ft2 *h)	±3 BTU (ft2 *h) or ±5% whichever is greater
Spectral Response	400 nm to 1100 nm
Dimensions	4.3 x 1.9 x 1" (108 x 48 x 23mm)
Weight	2.8oz (80g)

Datasheets & User Manuals

$159.99
