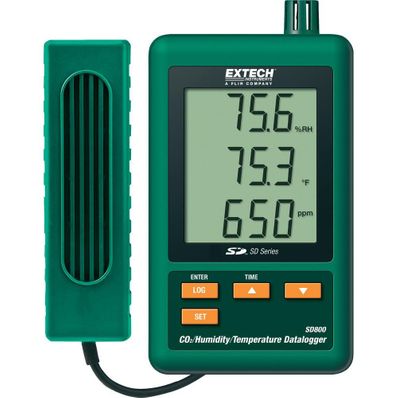

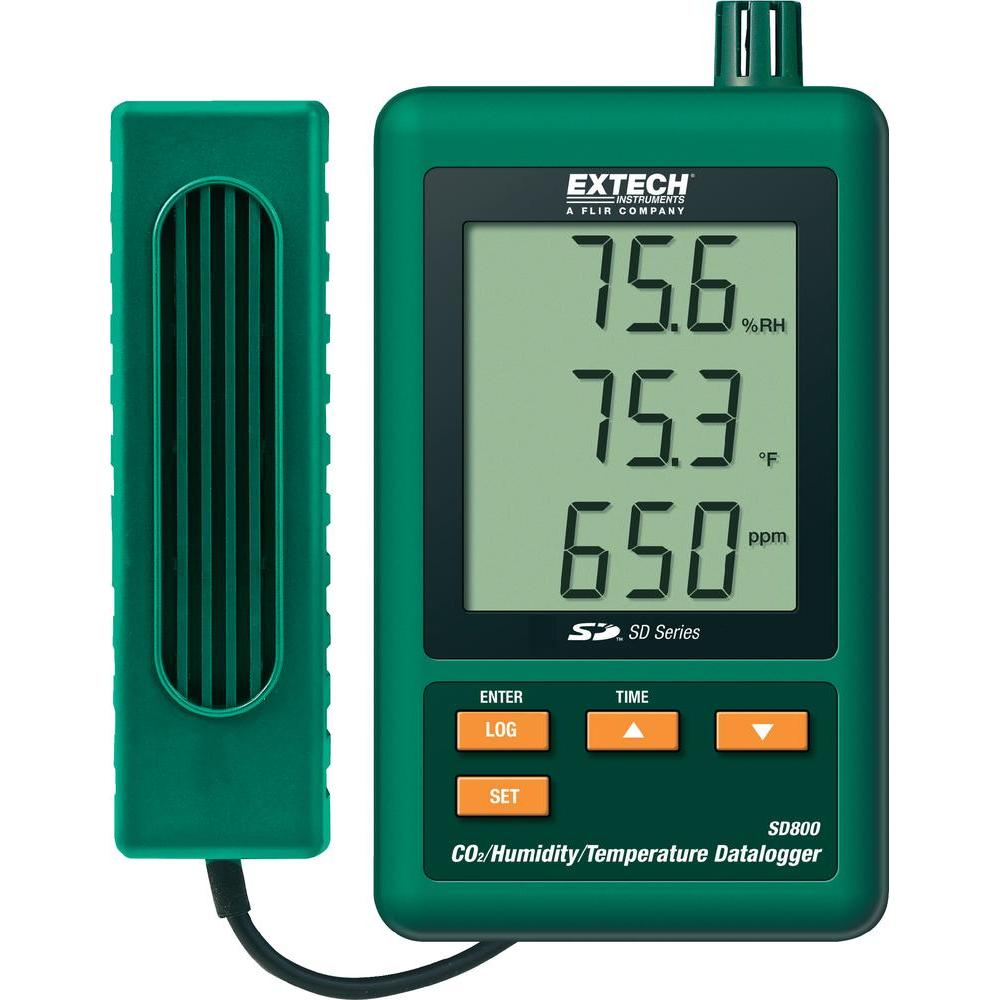

Extech SD800 CO2/Humidity/Temperature Datalogger
Item #:
EXT-SD800
Brand:
Extech
Share this product:
SD800 CO2/Humidity/Temperature Datalogger by Extech
Features
- Checks for Carbon Dioxide (CO2) concentrations
- Maintenance free dual wavelength NDIR (non-dispersive infrared) CO2 sensor
- Triple LCD simultaneously displays CO2, Temperature and Relative Humidity
- Measurement ranges: CO2: 0 to 4,000ppm; Temperature: 32 to 122°F (0 to 50°C); Humidity: 10 to 90%RH
- Datalogger date/time stamps and stores readings on an SD card in Excel® format for easy transfer to a PC
- Selectable data sampling rate: 5, 10, 30, 60, 120, 300, 600 seconds or Auto
- Complete with (6) AAA batteries, 2G SD memory card, Universal AC adaptor, and mounting bracket
Applications
- Monitors air quality in schools, office buildings, greenhouses, hospitals and anywhere that high levels of carbon dioxide are generated
Display | 60 x 50 mm (2.4 x 2.0") LCD |
Measurement sensors | Temperature: Internal sensor Relative Humidity: Precision capacitance type CO2: NDIR |
CO2 Response Time | <2 min to 63% of final reading typical |
Memory Card | SD memory card, 1 GB to 16 GB. |
Datalogger Sampling Time | 5/10/30/60/120/300/600 seconds or Auto. |
Temperature Compensation | Automatic |
Display update rate | Approx. 1 second |
Data Output | RS 232 |
Operating Temperature | 0 to 50°C (32 to 122°F) |
Operating Humidity | Less than 90% RH |
Power Supply | 9V AC adaptor. Six (6) AAA (UM4) 1.5 V batteries for clock backup |
Weight | Meter: 240 g (0.53lbs.). Probe 158g (0.35lb) |
Dimension | Meter: 132 x 80 x 32mm (5.2 x 3.1 x 1.3") Probe: 132 x 38 x 32mm (5.2 x 1.5 x 1.3") |
Range |
Resolution |
Accuracy (of reading) |
|
Temperature |
0.0 to 50.0 °C |
0.1°C |
± 0.8°C |
32.0 to 122.0°F |
0.1°F |
± 1.5°F |
|
Relative Humidity |
10 to 70% |
0.1% |
± 4% RH |
70 to 90% |
± (4% of reading + 1% RH) |
||
CO2 |
≤1000ppm |
1ppm |
± 40ppm |
>1000 to ≤3000ppm: |
± 5% of reading |
||
>3000ppm |
±250ppm typical |
