Extech PRC10 Current Calibrator/Meter
Item #:
EXT-PRC10
Brand:
Extech
Share this product:

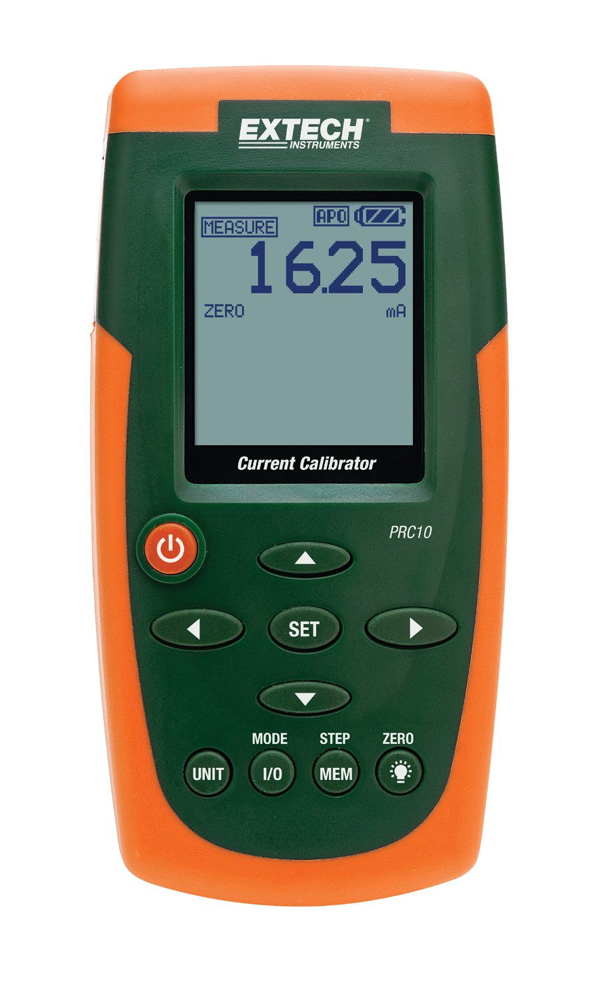

PRC10 Current Calibrator/Meter by Extech
Features
- Palm-sized double molded housing and large dot-matrix digital backlit LCD
- Measures DC process signals
- Standard banana I/O ports
- Large battery bank for extended work cycle
- Up to fi ve user adjustable calibration presets
- External power adapter for continuous work cycle
- 0 to 24mA (-25 to 125%)
- 24V DC power source for 2-wire current loop
Includes
- Test leads
- Alligator clips
- 100V-240V AC Universal Adaptor with 4 plugs
- Six 1.5V AA batteries
- Hard carrying case
| Display | Dot matrix LCD |
| Maximum Load | 1000 ohms @ 24mA |
| Meter Power | 6 AA batteries or AC adaptor |
| Auto Power OFF | Meter automatically powers off after 10 minutes of inactivity |
| Current output capability | 24mADC at 1000 ohms |
| Operating Temperature | 41ºF to 104ºF (5ºC to 40ºC) |
| Storage Temperature | - 4oF to 140oF (-20oC to 60oC) |
| Operating Humidity | Max 80% up to 87ºF (31ºC) decreasing linearly to 50% at 104ºF (40ºC) |
| Storage Humidity | <80% |
| Operating Altitude | 7000ft (2000meters) maximum |
| Dimensions | 159 x 80 x 44 mm (6.3 x 3.2 x 1.7") |
| Weight | 232g (8.2 oz.) without batteries |
Mode |
Function |
Range (Resolution) |
Accuracy (% of reading) |
Measure |
Current |
0 to 50mA (0.01mA) |
± (0.01% + 1 digit) |
Percent (%) |
-25% to +230% (0.1%) |
||
Source |
Current |
0 to 24mA (0.01mA) |
|
Percent (%) |
25% to +125% (0.1%) |
||
Power |
Loop Power |
24 to 30VDC, <50mA |
