Extech MN24-KIT Electrical Test Kit
Item #:
EXT-MN24-KIT
Brand:
Extech
Share this product:

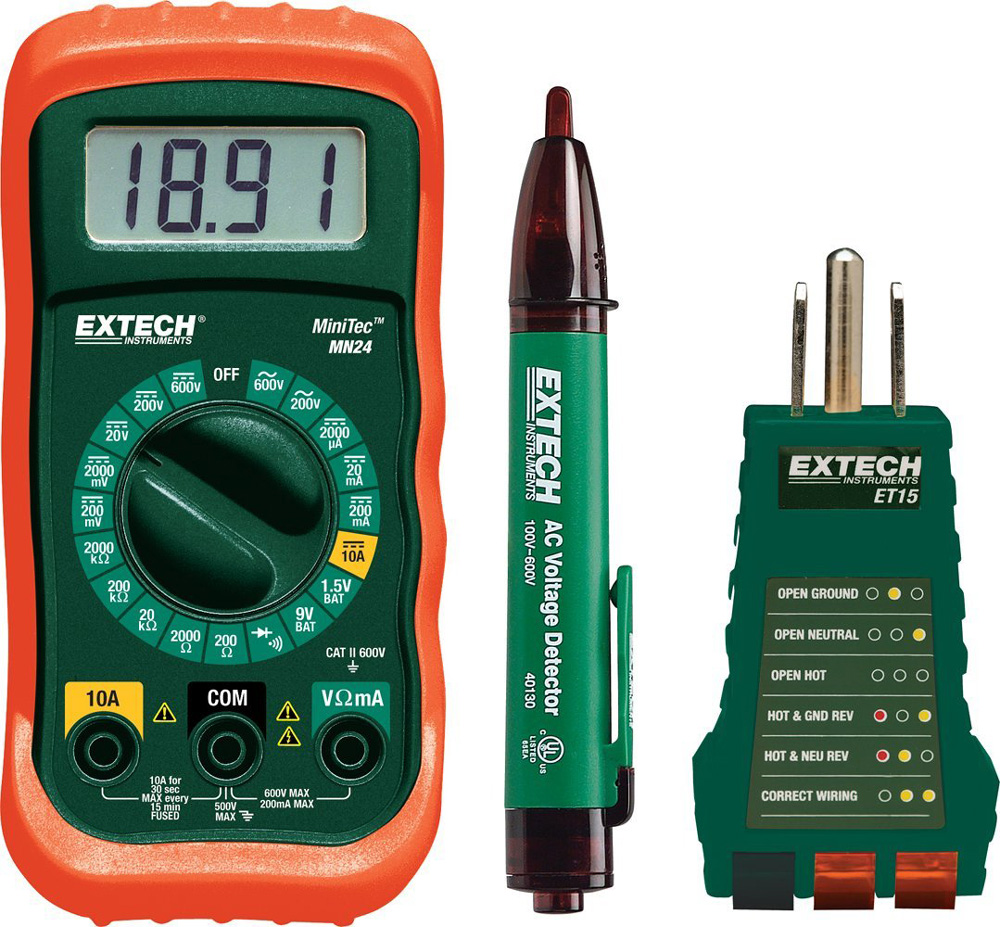

MN24-KIT Electrical Test Kit by Extech
Kit Includes
- MN24 Manual Ranging CAT II-600V MiniTec™ MultiMeter with 7 functions including 1.5V and 9V Battery tests under load
- Model 40130 Non-Contact Voltage Detector detects AC Voltage from 100VAC to 600VAC without touching the source
- Model ET15 Receptacle Tester tests for faulty wiring in 3-wire receptacles and detects five wiring faults
- Supplied in an attractive storage case that provides protection and organization for the meters whenever they are needed
- Dimensions: 9.5x6.8x2.8" (241x173x71mm)
Range |
Basic Accuracy |
|
Display Count |
2000 count |
|
DC Voltage |
600V (0.1mV) |
±0.5% |
AC Voltage |
600V (0.1V) |
±1.5% |
DC Current |
10A (1µA) |
±1.8% |
Resistance |
2MΩ (0.1Ω) |
±0.8% |
Diode/Continuity |
Yes |
|
Dimensions |
4.8x2.4x1.6" (122x61x40mm) |
|
Weight |
9.17oz (260g) |
