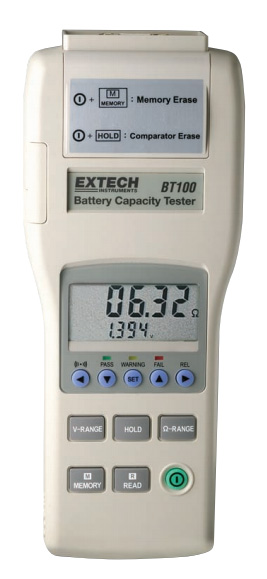

Extech BT100 Battery Capacity Tester

Extech BT100 Battery Capacity Tester

$789.00

Discontinued


BT100 Battery Capacity Tester by Extech

Features

  • On-line testing without disconnecting battery
  • Built-in datalogger manually stores up to 999 sets and 9600 sets for continuous datalogging
  • Simultaneously measures DC Voltage and AC Milliohms
  • Auto power off
  • Includes Windows® 95/98/NT/2000/ME/XP compatible software for downloading readings to a PC
Resistance measurement method Four (4) terminal Kelvin connections
A/D conversion Dual slope
Displays Dual LCD for measurements and programming icons
Three (3) test status LEDs
Datalogger Sampling rate 1 to 255 seconds (interval time between logged readings)
Open-circuit terminal voltage 3.5Vpp max
Input over range "OL" display
Low battery indication Battery symbol is displayed
Test current fault detect "- - - -" display
Auto power off After approximately 30 minutes
Zero (Relative) function Circuit offset voltage is displayed as 0V
Hold function Display freezes
Audible Alarm function Audible alert for Warning and Failure conditions (can be set ON or OFF)
Comparator settings Resistance High/Low limits and Voltage threshold point
Number of comparator configurations 99 sets
Comparator output Test status LEDs for Pass (green), Warning (yellow), and Fail (red) results (audible tone for Warning and Fail conditions)
Manual Datalogging memory 999 sets can be stored in meter's internal memory
Continuous (automatic) Datalogging 9600 sets can be stored in meter's internal memory
Operating conditions 32 to 104°F (0° to 40°C) 80%RH (non-condensing)
Storage conditions 14 to 122°F (-10° to 50°C) 80%RH (non-condensing)
Power source Six (6) 'AA' 1.5V batteries; Optional 9V AC adaptor
Maximum power consumption 1.0VA
Maximum continuous operation 7 hours approx.
Altitude 2000m max.
Dimensions 9.8 x 3.9 x 1.7" (250 x 100 x 45mm)
Weight 1.1 lbs. (500g) approx. (including batteries)
Accessories Test Leads and batteries
Optional equipment AC adaptor (9V output)
