Extech Video Borescope/Wireless Inspection Camera with 5.2mm Camera Head - BR250-5
Item #:
EXT-BR250-5
Brand:
Extech
Share this product:

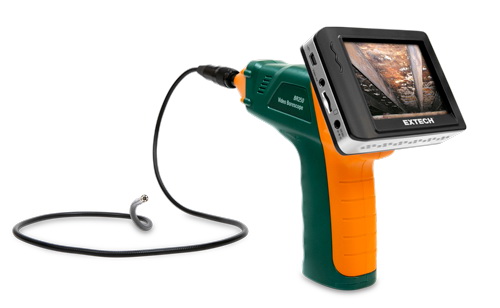

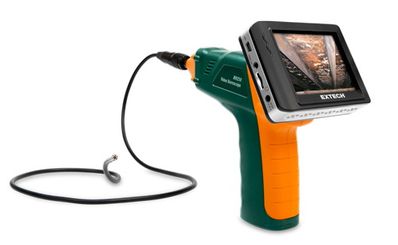

BR250-5 Video Borescope/Wireless Inspection Camera with 5.2mm Camera Head by Extech
Extech's Video Borescope with a 5.2 mm diameter camera probe makes it possible to inspect hard to access areas through a small opening. It provides a glare-free close-up field of view. A color wireless monitor is included and can be detached from the base and viewed from a remote location up to 32 ft (9.75 m) away. Capture images/videos with date/time stamp and play back on the monitor or viewed on a PC.
Features
- Detachable wireless 3.5" (89 mm) TFT LCD color monitor can be viewed from a remote location up to 32 ft (10 m) from the borescope
- 16 GB microSD memory card (with included SD adaptor) for storing images (JPEG) and videos (AVI) with date/time stamp that can be played back on the wireless monitor or transferred to a PC
- Mini waterproof (IP67) 5.2 mm diameter camera probe with 39" (1 m) goose-neck cable retains configured shape
- Built-in six bright LED lamps with dimmer function to illuminate viewed object
- Glare-free close-up field of view
- Magnetic mount conveniently holds the monitor in a remote area for viewing
- Easy-to-navigate menu in 10 languages
- Video output for connecting additional monitor Specifications and Ordering information next page
- Complete with 5.2 mm camera probe (BR-5CAM-A), probe tools (mirror, hook, magnet, and fixture), 4 AA batteries, rechargeable display battery, microSD memory card with SD adaptor, USB cable, video cable, Universal adaptor with multi-plugs (US, EU, UK, AUS), magnetic base stand, and hard case
Applications
- HVAC (inspect inside ducts, behind motors/compressors
- Home inspection (mold, electrical wires, or pipes in walls)
- Automotive (view inside or around engines and transmissions)
Camera Probe and Handle | |
Pixels | 640 x 480 (NTSC) |
Transmission Frequency | 2.4GHz |
Transmission Range | 32ft (10m) unobstructed view |
Viewing direction | Viewing Angle 48° |
Focus distance from object | ~1.2" to 3.1" (3 to 8 cm) |
Shaft diameter | 5.2 mm |
Camera probe cable length | 39" (1m) |
Minimum bend radius | 2.36"(60 mm) |
Handle dimensions | 7.3 x 5.7 x 1.6" (186 x 145 x 41 mm) |
Weight | 13.4 oz (381 g) |
Monitor | |
LCD Screen Type | 3.5" TFT |
Pixels | 320 x 240 |
Video Output Level | 0.9 to 1.3 V @ 75Ω |
Frame Rate | 5, 10, 15, 20, 25, 30FPS |
Video Resolution | 640 x 480 (avi format) |
Image Resolution | 640x 480 (jpeg format) |
Languages | English, Chinese, German, French, Spanish, Portuguese, Italian, Japanese, Dutch, and Russian |
Monitor Dimensions | 4 x 2.8 x 1"(101.5 x 70.5 x 25 mm) |
Operating/Charge Time | 1.5 hours/3 hours |
Weight | 4.6 oz (130 g) |
