Extech AN25 Heat Index Anemometer

Item #:
EXT-AN25
Brand:
Extech
Extech AN25 Heat Index Anemometer
$129.99
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Extech AN25 Heat Index Anemometer

Extech AN25 Heat Index Anemometer

$129.99

Discontinued

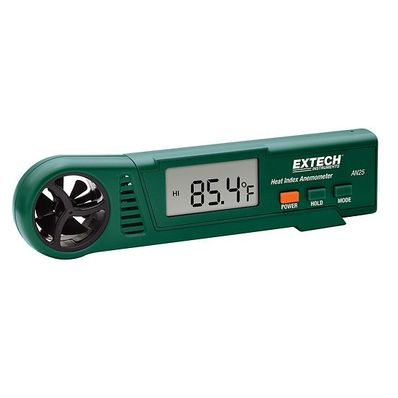

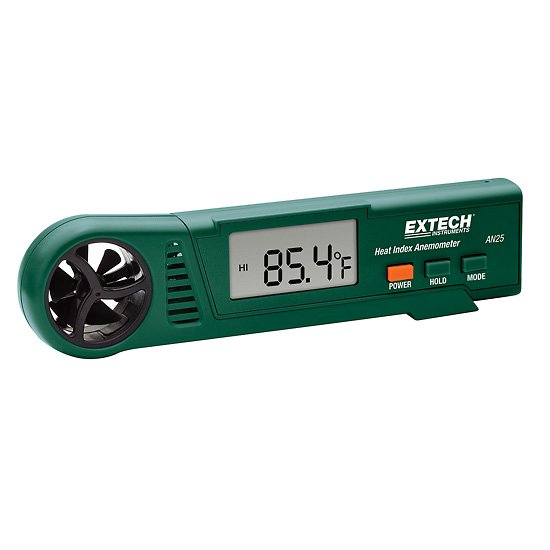

AN25 Heat Index Anemometer by Extech

Extech's pocket-sized Heat Index Anemometer Pen not only measures Air Velocity, but also monitors Heat Index during hot humid days to prevent heat stroke during outdoor activities, sporting events or, indoor workplace. Its pen-sized design makes it convenient to fit into your pocket and carry it wherever you go!

Features

  • Heat Index measures how hot it feels when Humidity is combined with temperature, air movement, and radiant heat; Wet Bulb Globe Temperature (WBGT) considers the effects of temperature, humidity, and direct or radiant sunlight
  • Built-in multiparameter sensors measure Air Velocity, Heat Index, WGBT, Humidity, Ambient Temperature, Dew Point, Wet Bulb, Temperature, and Windchill
  • MIn/Max/Average (5sec/10sec/13sec)
  • Data Hold
  • Auto power off with disable
  • Mini impeller (vane) is replaceable
  • Complete with CR2032 battery
General Specifications
Display 28 x 14mm (1.1 x 0.5") LCD with low battery & multifunction indicators
Max/Avg/Hold Modes Max shows highest reading; AVG averages readings; Data Hold freezes the display
Operating conditions 0 to 50oC (32 to 122oF) / < 80% RH
Power supply Lithium battery (CR‐2032 or equivalent)
Dimensions/weight 152 x 40 x 18mm (6.0 x 1.6 x 0.7"); 60g (2.1 oz.)

Range Specifications
Air Velocity
ft/min Range: 80 to 4920ft/min
Resolution: 0.1ft/min, 1ft/min (>1000ft/min)
Basic Accuracy: ±3% FS
m/s Range: 0.4 to 25m/s
Resolution: 0.1m/s
Basic Accuracy: ±3% FS
km/h Range: 1.4 to 90.0km/h
Resolution: 0.1km/h
Basic Accuracy: ±3% FS
mph Range: 0.9 to 55.9mph
Resolution: 0.1mph
Basic Accuracy: ±3% FS
knots Range: 0.8 to 48.6 knots
Resolution: 0.1 knots
Basic Accuracy: ±3% FS
Temperature/Windchill Range: 5 to 122°F (-15 to 50°C)
Resolution: 0.1°F/C
Basic Accuracy: ±2°F/1°C
Relative Humidity Range: 5.0 to 95.0%RH
Resolution: 0.1%RH
Basic Accuracy: ±3%
Wet Bulb Range: 5 to 122°F (-15 to 50°C)
Resolution: 0.1°F/°C
Dew Point Range: -103 to 122°F (-75 to 50°C)
Resolution: 0.1°F/°C
Heat Index Range: -31 to 401°F (-35 to 205°C)
Resolution: 0.1°F/°C
WBGT Range: -20.2 to 130°F (-29 to 54.5°C)
Resolution: 0.1°F/°C
