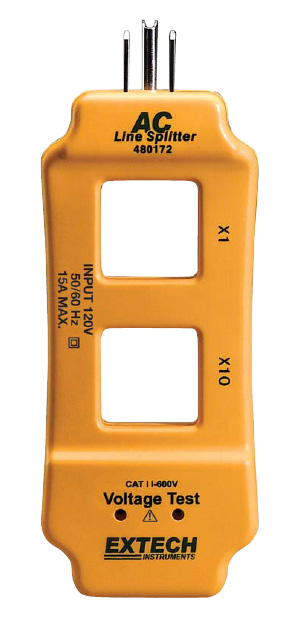

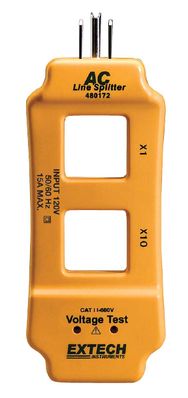

Extech AC Line Splitter - 480172

Extech AC Line Splitter - 480172

$17.59

Discontinued


480172 AC Line Splitter by Extech

Features

  • Provides easy and safe measurement of current without the need to cut off the plug and separate the conductors
  • Plugging the power connector into the Line Splitter separates the hot/live conductor from the neutral (and ground)
  • Voltage check function
  • Two clamp positions: x1 for direct readings; x10 for actual reading multiplied by 10
  • Dimensions: 5.25x2x1(133x51x25mm)
  • Weight: 5.8 oz (164.4g)
Voltage 120V ±10%
Current 15Amps max
Temperature Operating: 41ºF to 104ºF (5ºC to 40ºC)
Storage: -4ºF to 140ºF (-20ºC to 60ºC)
Humidity Operating: Max 80% up to 87ºF (31ºC) decreasing linearly to 50% at 104ºF (40ºC)
Storage: <80%
Altitude Operating; 7000ft. (2000) meters maximum.
Dimensions 5.25 x 2 x 1" (133 x 51 x 25mm)
Weight 0.753lb (342g) (includes holster).
Safety For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (1995): EN61010-1 (1995) Overvoltage Category II, Pollution Degree 2.
