Extech 461950 Panel Mount Tachometer
Item #:
EXT-461950
Brand:
Extech
Share this product:

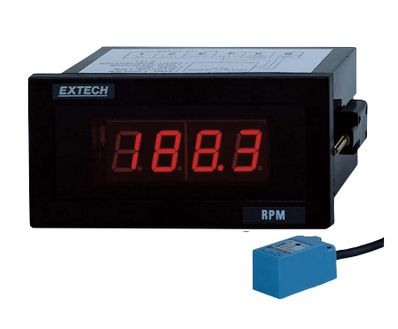

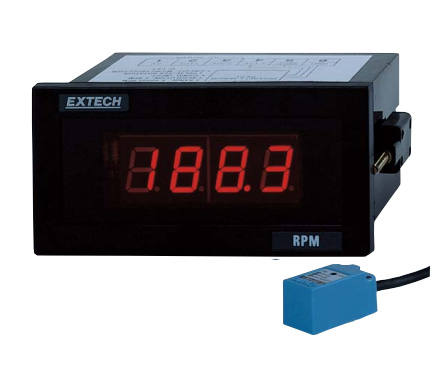

461950 Panel Mount Tachometer by Extech
Features
- Measure RPMs from 5 to 99,990rpm with microprocessor quartz crystal accuracy of 0.05% + 1digit
- Resolution from 0.1rpm (5 to 1000rpm) to 1rpm (1000 to 9999rpm) to 10rpm (10,000rpm to 99,990rpm)
- Large 4 digit LED display updates once per second (rpm greater than 60)
- Unique design permits RPM measurements of a one hole gear or disk eliminating the need for special gears
- A pulse is measured when a ferrous object (stud) passes by sensor
- Powered by: 115/230 VAC 50/60Hz; Dimensions: Bezel: 3.78 x 1.89 x 2.36" (96 x 48 x 60mm); Meter: 3.61 x 3.54 x1.66" (92 x 90 x 42mm); Weight: 13.9oz (397g); Panel cutout: 3.62 x 1.77" (92 x 45mm)
- Choice of two sensor pickup types: Proximity sensor designed for target distance of 0.1" (3mm), covers range to 36,000rpm (600Hz); Photoelectric sensor with target distance of 0.4" (10mm) and range to 15,000rpm (250Hz); Both encapsulated sensors include 6 ft. (1.8m) cable
Range | 5 to 99,990 RPM |
Resolution | 0.1 (5 to 999.9); 1 (1000 to 9999); 10 (10.000 to 99,990) |
Accuracy | 0.05% + digit (of reading) |
Display | 0.5" (13mm) 4-digit (9999 count) LED display |
Display update rate | Once per second |
Power | 110/220VAC; 50/60Hz ±15% |
Panel cutout dimensions | 3.62 x 1.77" (92 x 45mm) |
Bezel dimensions | 3.78 x 1.89 x 2.36" (96 x 48 x 60mm) |
Meter dimensions/Weight | 3.61 x 1.66 x 3.54" (92 x 42 x 90mm); 13.9 oz. (397 g) |
