Extech 45160 3-in-1 Humidity, Temperature and Airflow Meter
Item #:
EXT-45160
Brand:
Extech
Share this product:

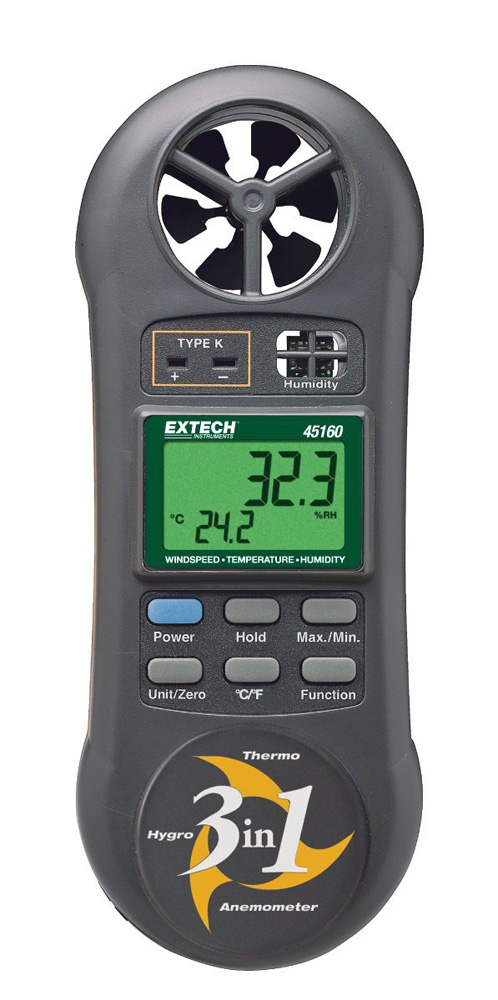

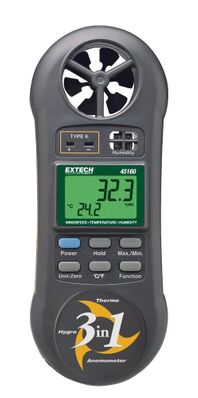

45160 3-in-1 Humidity, Temperature and Airflow Meter by Extech
Features
- Ergonomic pocket size housing with large dual LCD simultaneous display of Temperature and Air Velocity or Relative Humidity
- Data Hold to freeze the displayed value
- Records Min/Max readings
- Built-in low friction vane wheel improves accuracy of air velocity in ft/min, MPH, m/s, km/h, and Knots
- Built-in precision thin-film capacitance humidity sensor for fast response
- Built in thermistor for ambient temperature measurements
- High temperature measurements using Type K thermocouple
- Defaults to last function when powered off
- Auto power off 10 minutes after last key is pressed with disable feature
- Low Battery and overrange indication
- Complete with built-in Humidity sensor and Vane wheel, wrist strap, and 9V battery. (Optional Type K thermocouple probe)
Display | 4 digit (9999 count) Dual Display LCD |
Sensors | Thin film capacitance humidity sensor |
Min/Max | Min/Max recalls the highest/lowest reading |
Data Hold | Data Hold freezes the display |
Operating conditions | 32 to 122°F (0 to 50°C) / < 80% RH |
Power supply | 9 Volt Battery |
Dimensions / Weight | Instrument: 6.14 x 2.36 x 1.29" (156 x 60 x 33mm) Vane: 1" ( 24mm ) diameter / 3 oz. ( 95 g ) |
Measurement |
Range |
Resolution |
Accuracy |
MPH (Miles per
hour) |
0.9 to 67.0MPH |
0.1MPH |
≤ 3937 ft/min: ±3% F.S. > 3937 ft/min: ±4% F.S |
km/hr (kilometers
per hour) |
1.4 to 108.0 km/h |
0.1km/h |
|
Knots (nautical
miles per hour) |
0.8 to 58.3 knots |
0.1knots |
|
m/sec (meters
per second) |
0.40 to 30.00 m/s |
0.1 m/s |
|
ft/min (feet per
minute) |
80 to 5910 ft/min |
1ft/min |
|
Temperature/Thermistor |
32 to 122°F (-0 to 50°C) |
0.1°F/C |
± 2.5°F (± 1.2°C) |
Temperature /Thermocouple |
-148 to 2372°F; -100 to 1300°C |
0.1°F; 0.1°C |
± (1% + 2°F); ± (1% + 1°C) |
Relative Humidity |
10.0 to 95.0% |
0.1% |
±4% RH (from 10% to 70%RH); ±5.2% RH (> 70% RH) |
