Extech Real Time Octave Band Analyzer - 407790A
Item #:
EXT-407790A
Brand:
Extech
Share this product:

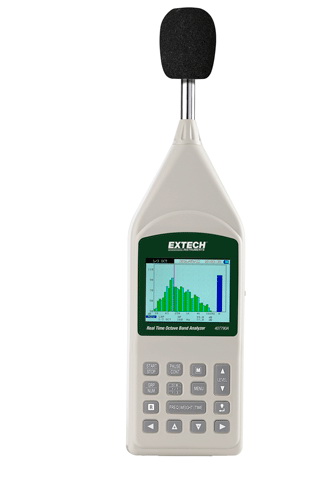

407790A Real Time Octave Band Analyzer by Extech
Extech's Type 2 Integrating Sound Level Meter with Octave and 1/3 Octave Band Real Time is displayed on a large 3.5" 320x240 TFT color backlit LCD.
Features
- Wide measurement in 5 ranges: 20 to 90dB, 20 to 100dB, 20 to 110dB, and 30 to 120dB, 40 to 130dB
- 3.5" (320x240) TFT color LCD with backlight feature displays Leq, LE, Lmax, Lmin, Lp, L05, L10, L50, L90, L95
- Stores readings on microSD card
- Transferred data to a PC to be analyzed using software and cable provided
- A, C and Z weighting with Fast or Slow response
- 25Hz to 10kHz frequency response
- Meets ANSI and IEC Type 2 standards
- Internal self test when powered ON
- Detachable 0.52" (13.2mm) diameter condenser microphone and Tripod mount provided on rear
- Analog AC/DC recorder output
- Real time clock with Year, Month, Day, Hour, Minute and Second display
- Optional microphone extension cable for measurements in enclosures and other remote locations (407764-EXT)
- Complete with Windows® compatible software, USB cable, 4 x C batteries, microphone wind screen, mini screwdriver, 120V AC adaptor, and case
Applications
- Real time analysis of noise from any source such as machinery or vehicles
- Monitor office or plant noise and store data for later reference and analysis
- Maintain noise level statistics for internal and external audits
- Perform machinery noise monitoring or use for noise reduction programs
| Applicable standards | ANSI S1.4 Type 2, EN IEC 60651, EN IEC 60804, and EN IEC 1260-1995 |
| Accuracy | ±1.5dB (ref 94dB @ 1kHz) |
| Measurement functions | Lp, Leq, LE, Lmax, Lmin, L05, L10, L50, L90, L95 |
| Frequency range | 25Hz ~ 10kHz |
| Frequency Weighting | A, C, and Z |
| Time Weighting | Fast, Slow, 10ms (t), I |
| Display | 3.5" (89mm) 320x240 TFT color backlit LCD; Displays 1/1, 1/3, and 1/1 & 1/3 |
| 1/1- 1/3 Analyzer level range | 5 ranges in 10db steps: 20 to 90dB, 20 to 100dB, 20 to 110dB, 30 to 120dB, 40 to 130dB |
| 1/1 Octave and 1/3 Octave | 1/1 Octave band center frequencies: (9 bands) 1/3 Octave band center frequencies: (27 bands) |
| Signal output | AC output: 1 Vrms (at full scale); DC output: 3.0V, 25mV/dB |
| Memory | microSD card (included) |
| Measurement Time | 1s to 23h 59m 59s |
| Power | Four type C size 1.5V batteries, External DC power: 6V, 1A |
| Dimensions/Weight | 13.6 x 3.9 x 2.4" (345 x 100 x 60mm)/ 33.5oz (950g) |
