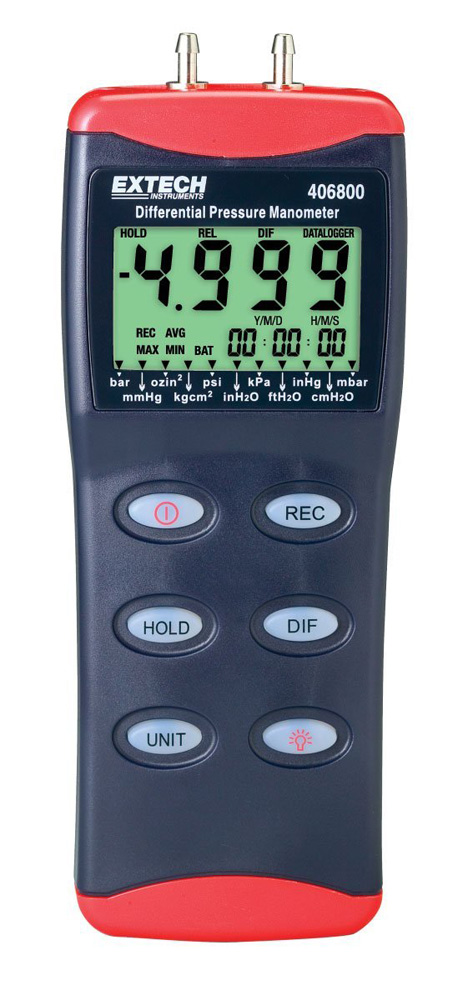

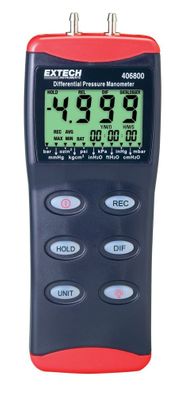

Extech 406800 Differential Pressure Manometer (5psi)
Item #:
EXT-406800
Brand:
Extech
Share this product:
406800 Differential Pressure Manometer (5psi) by Extech
Features
- 11 selectable units with Max/Min recording and Relative time stamp
- Compensated temperature range 32 to 122°F (0-50°C)
- Data Hold, Auto power off, and Min/Max functions
- Large LCD display with backlighting
- Zero function for offset correction or measurement
- Built-in RS-232 interface (optional software and cable)
- Includes 9V battery, connection tubing and hard carrying case
Applications
- HVAC
- Fume Hoods
- Pneumatic controls
- Hydraulics
- Medical equipment
- Clean rooms
| Display | Dual LCD |
| Accuracy | ±0.3%FS |
| Repeatability | ±0.2% to 0.5% FS |
| Linearity/Hysteresis | ±0.3%FS |
| Combined Accuracy | ±1.1%FS (+5 to -4psi) (-4 to -5psi unspecified) |
| Connectors | Two metal 4.8mm ports for flexible tubing |
| Maximum Pressure | 20psi |
| Response Time | 0.5 seconds typical |
| Compatibility | Air or Non-Corrosive Gases |
| Low Battery Indicator | Yes |
| Overrange Indicator | Err.1 |
| Underrange Indicator | Err.2 |
| Compensated Temperature Range | 32 to 122ºF (0 to 50ºC) |
| Operating Conditions | 32 to 122ºF (0 to 50ºC); < 80% RH non-condensing |
| Storage Conditions | -4 to 140ºF (-20 to 60ºC); <80% RH non-condensing |
| Power Supply | 1 x 9V battery |
| Dimensions / Weight | 7.1 x 2.8 x 1.1" (182 x 72 x 30mm); 7.7 oz. (220g) |
Function |
Range |
Resolution |
inH2O |
±138.3inH2O |
0.1inH2O |
psi |
±5.000psi |
0.001psi |
bar |
±0.344bar |
0.001bar |
mbar |
±344.7mbar |
0.1mbar |
kPa |
±34.47kPa |
0.01kPa |
inHg |
±10.18inHg |
0.01inHg |
mmHg |
±258.5mmHg |
0.1mmHg |
ozin2 |
±80.00oz/in2 |
0.01oz/in2 |
ftH2O |
±11.53ftH2O |
0.01ftH2O |
cmH2O |
±350.1cmH2O |
0.1cmH2O |
kgcm2 |
±0.351kg/cm2 |
0.001kg/cm2 |
