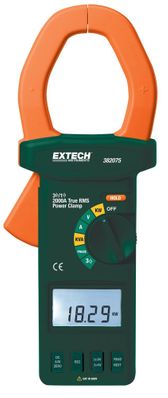

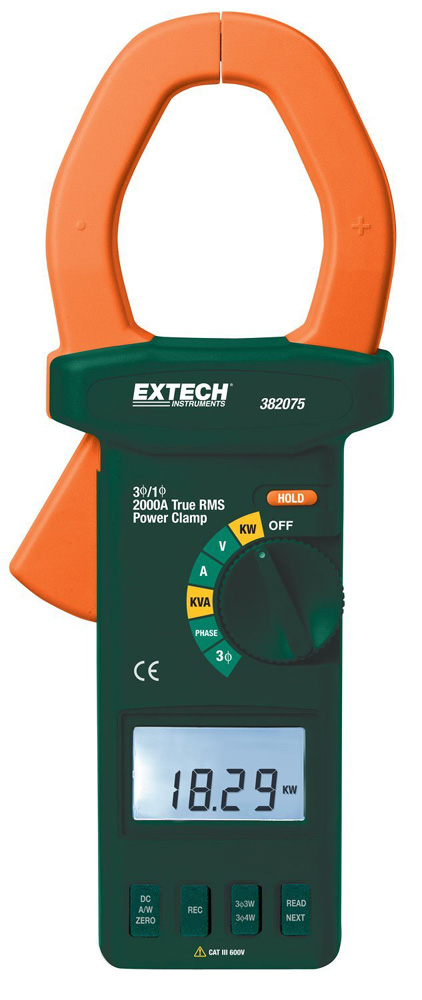

Extech 382075 2000A True RMS AC/DC 3-Phase Clamp-on Power Analyzer
Item #:
EXT-382075
Brand:
Extech
Share this product:
382075 2000A True RMS AC/DC 3-Phase Clamp-on Power Analyzer by Extech
Features
- 4-Digit 9999 count dual display LCD
- Clamp jaws open to 2.2" (55mm) for 1000MCM conductors
- Measures True Power (AC, DC)
- Measures Reactive(KVAR), and Apparent(KVA) Power to 1200KW
- Display Lead/Lag Current/Voltage phase shift in degrees
- Store and recall last four measurements
- Basic Measurements: Watts, Volts, Amps, and Frequency
- Advanced: KVA, KVAR, power factor, and phase angle
- Wide ranges to 1200kW, 600VAC, 800VDC, and 2000A
- Display Lead/Lag Current/Voltage phase shift in degrees
- Store/recall last 4 readings
- DC Current Auto-Zero
- Dual displays: kW+PF, kVA+kVAR, phase angle + Hz, Volts + Hz, or Amps + Hz
- Advanced Relative and Min/Max functions
- Data Hold
- Complete with test leads, carrying case, and 9V battery
| True Power (W) | Range: 1200kW Resolution: 0.01/0.1kW Accuracy (%rdg + digits): ±2%+ 5d |
| Reactve (KVAR) Power | Range: 1200KVAR Resolution: 0.01/0.1KVAR Accuracy (%rdg + digits): ±2%+ 5d (PF<0.91) |
| Apparent (KVA) Power | Range:1200KVA Resolution: 0.01/0.1KVA Accuracy (%rdg + digits): ±2%+ 5d |
| Power Factor (PF) | Range: 0.2 to 1 Resolution: 0.01 Accuracy (%rdg + digits): PF=W/(VxA) |
| Phase Angle (f) | Range: -90° to +90° Resolution: 0.1° Accuracy (%rdg + digits): ±0.5° |
| AC/DC Current | Range: 2000A Resolution: 0.1/1A Accuracy (%rdg + digits): ±2%+ 5d |
| AC/DC Voltage | Range: 600VAC/800VDC Resolution: 0.1/1V Accuracy (%rdg + digits): ±2%+ 5d |
| Frequency | Range: 40 to 400Hz Resolution: 0.1Hz Accuracy (%rdg + digits): ±1%+ 2d |
| Conductor Size | Cable Φ55mm. (approx.) Bus Bar 65mm (D) x 24mm (W) |
| Display | Dual 4-digit 9999 count LCD |
| Sampling time | 0.5 seconds for Voltage and Current; 1.6 seconds for Watts |
| Overload Indication | 'OL' displayed on LCD |
| Power | 9V Battery (Heavy Duty Type) |
| Power consumption | Approx. 28mA |
| Operating conditions | 4°C to 50°C <85% RH |
| Dimensions | 10.7" (L) x 4.4" (W) x 1.8" (H)271mm (L) x 112mm (W) x 46mm (H) |
| Weight | 22.8 oz. / 647g (with battery) |
| Safety | For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (2001): EN61010-1 (2001) Overvoltage Category III 600V and Category II 1000V, Pollution Degree 2. |
