Extech 380820 Universal AC Power Source & AC Power Analyzer
Item #:
EXT-380820
Brand:
Extech
Share this product:

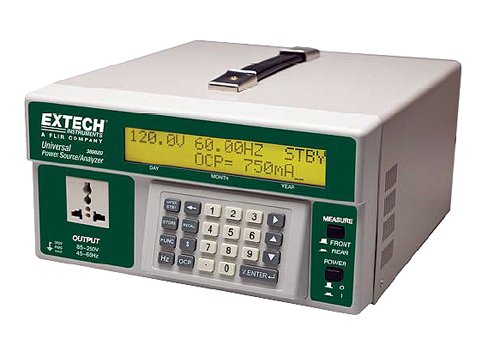

380820 Universal AC Power Source & AC Power Analyzer by Extech
Features
- Low Power, high resolution front panel output with variable voltage and frequency
- HighPower rear panel output supplies line frequency and voltage
- Low Power Measurement (10mW to 100W) for testing power consumption of small devices or standby power at different voltages and frequencies
- High Power Measurement with Harmonics measurements 100mW to 1000W @ 110V or 100mW to 2000W @ 220V
- Power Quality Measurement (Watts, Power Factor, Voltage, Current, Harmonics)
- Cost Function calculates cost per day, month, and year
- 99 memory locations for preset voltage and frequency output settings
- Standby and Operation button
- User-programmable Over Current Protection (current limiting)
- Programmable through the built-in RS-232 interface
- Data acquisition mode captures readings to your PC with a user-programmable sampling rate of 2 to 65,535 seconds
- Complete with AC power cord, RS-232 to USB cable and software
Input Power Source | 110V (90V - 130V) / 220V (200V - 240V), 45Hz – 65Hz, Max. 10A |
Power Fuse | 250V 10A |
Operation Humidity | ±85% RH |
Operation Temperature | 4C to 60C (40°F to 140°F) |
Accessories | Power cord, Software CD-ROM, RS232C to USB cable |
Dimensions | 260mm x 151mm x 305 mm (10.2" x 5.9" x 12.0") |
Weight | 9.9 kg s (21.8 lb) |
Range |
Resolution |
Accuracy |
|
Front Panel | |||
Output Voltage | 85 to 250V (adjustable) |
0.1V |
±1% |
Output Frequency | 45 to 65Hz (adjustable) |
0.01Hz |
±0.1Hz |
Power | 10mW to 100W |
0.1mW |
±(1% + 0.05W) |
AC Current | 5mA to 1.5A |
0.1mA |
±1% |
Power Factor | 0 to 1 |
0.001 |
±0.04 |
Rear Panel | |||
Output Voltage | line voltage |
0.1V |
±1% |
Output Frequency | line frequency |
0.01Hz |
±0.1Hz |
Power | 100mW to 2000W |
0.1mW |
±(1% + 0.5W) |
AC Current | 5mA to 10A |
0.1mA |
±1% |
Power Factor | 0 to 1 0.001 |
±0.04 |
|
Harmonics (in amps) | 1 to 50th order |
0.1mA |
±1.4% (1-10th) |
THD | 0.0 to 999.9% |
0.1% |
