Extech 380803 True RMS Power Analyzer Datalogger
Item #:
EXT-380803
Brand:
Extech
Share this product:

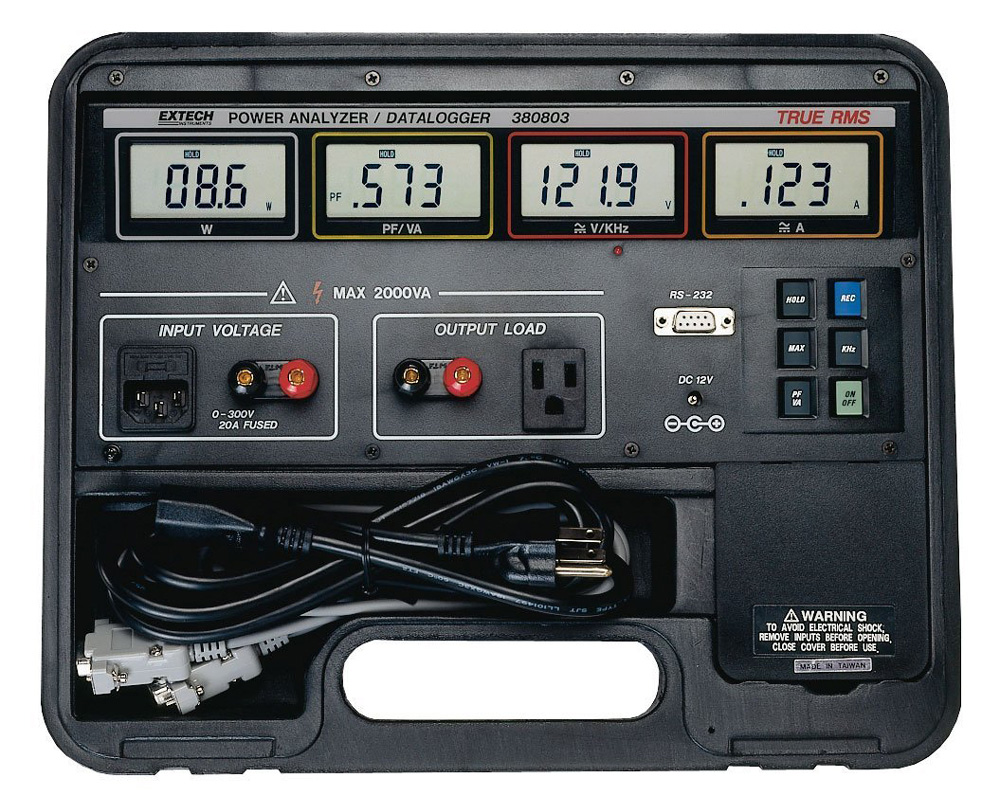

380803 True RMS Power Analyzer Datalogger by Extech
Features
- Four simultaneous displays of Watts, Power Factor or VA, Voltage or Hz, Amps
- True RMS Voltage & Current measurements of sine, square, triangular and distorted wave forms with a crest factor < 5
- Max, Data Hold and Overload Protection
- Battery or AC adaptor provides line isolation
- Plug device to be tested directly into the Power Analyzer
- Sampling (update) rate is 2.5 times/second
- Windows® 95/98/NT/2000/XP/ME software allows user to download stored data or save data directly, and to create an ASCII file. Computations include phase angle, apparent and reactive power, consumption and cost, and power factor correction
- Complete with Windows compatible software, cable, 8 x AA batteries, power cord, 117 VAC adaptor and case
Applications
- Measure and Audit power consumption of single phase devices
- Evaluate load performance under varying line conditions
- Demonstrate effectiveness of power conservation efforts
- Characterize device AC power requirements
Watt | Range: 200W; 2000W Resolution: 0.1W; 1W Accuracy: ±(0.9% reading + 5digts) (50/60Hz); ±(5% reading + 9digts) (40 to 400Hz) Input: 0-300V, 0-20A, PF=0.5 to 1 |
Voltage | Range: 200V; 750V Resolution: 0.1V; 1V Accuracy: ±(0.5% reading + 5digts) (40 to 400Hz) Overload Protection: 1000VDC/750VAC |
Current | Range: 2; 20 Resolution: 0.001A; 0.01A Accuracy (40 to 400Hz): ±(0.5% reading + 5digts) Overload Protection: 20A, fused |
Frequency | Range: 40Hz to 20kHz Resolution: 1Hz-10Hz Accuracy: ±(0.5% of rdg ±2digts) |
Memory Size (380803) | 1012 x 4 readings (non-volatile) |
Memory Life (380803) | 100,000 memory writes |
Display | 2000 count LCD displays |
Over Range Indication | 'OL' displayed on LCD |
Sampling Rate | 2.5 times per second |
Power Source | Eight 1.5V ‘AA’ batteries or AC adaptor |
Power Consumption | 22 mA approx. |
Operating conditions | 32 to 122°F (0 to 40°C); Less than 80% |
Dimension | 13.9"(L) x 11.8"(W) x 3.9" (H) 352(L) x 300(W) x 100(H)mm |
Weight | 3.6 lbs (1.637 Kg) approx. |
