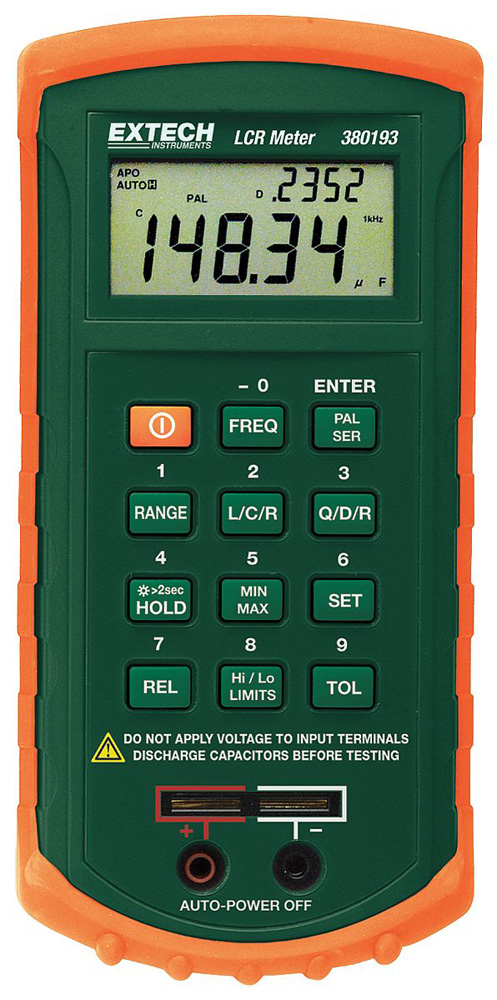

Extech 380193 Passive Component LCR Meter

Extech 380193 Passive Component LCR Meter

$229.99

Discontinued


380193 Passive Component LCR Meter by Extech

Features

  • Simultaneous 20,000/10,000 count backlit display of the primary parameter (L, C or R) with the secondary parameter of Q (quality), D (dissipation) or R (resistance)
  • Set Hi/Lo limits using absolute values or percentage limits
  • Parallel or Series equivalent circuit
  • Max/Min/Avg; Auto power off with disable
  • Automatic blown fuse indication
  • Built-in test fixture or use external test leads
  • Open and Short Zero removes unwanted stray impedances from the measurement
  • Relative mode, zero, or supplied reference
  • Complete with test leads, 9V battery, software, cable, and protective holster
Inductance Ranges: 2000.0μH, 20.000mH, 200.00mH, 2000.0mH, 20.000H, 200.00H, 2000.0H, 10000H
Basic Accuracy: ±(0.7%rdg + Lx/10000 + 5 digit) (DF<0.5)
Capacitance Ranges: 2000.0pF, 20.000nF, 200.00nF, 2000.0nF, 20.000μF, 200.00μF, 2000.0μF, 10.000mF
Basic Accuracy: ±(0.7%rdg + 5 digit) (DF<0.1)
Resistance Ranges: 20.000Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 10.000MΩ
Basic Accuracy: ±(0.5%rdg + 8 digit)
DF (with C) Ranges: 0 to 0.9999
Basic Accuracy: ±(0.7%rdg + 100/Cx + 5 digit)
Q Ranges: 0 to 9999
Basic Accuracy: ±(1.2%rdg + 100/Lx + 5 digit)
Test Frequency (accuracy) 122.88Hz (±4Hz) and 1kHz (±4Hz)
Display Dual 4 ½ digit backlit LCD
Overload indication "OL"
Low battery indication Battery symbol is dispalyed
Measurement rate One time per second
Auto-power off After 10 minutes of inactivity
Operating environment 0o C to 50o C (32o F to 122o F), < 80% RH
Storage environment -20o C to 60o C (14o F to 140o F), < 80% RH, battery removed
Power 9V battery or optional external 12V-15V @ 50mA (approx.)
Fuse 0.1A/250V fast blow
Dimensions 19.2x9.1x5.25cm (7.56x3.6x2.1")
Weight 365g (12.9oz)
