Kanomax 0 to 4 in. H20 Fundamental Pressure Monitor with Alarm - EKM1000

Kanomax 0 to 4 in. H20 Fundamental Pressure Monitor with Alarm - EKM1000

Add to cart to see price

Discontinued

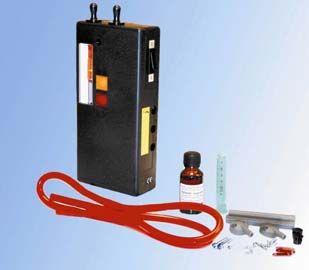

EKM1000 0 to 4 in. H20 Fundamental Pressure Monitor with Alarm by Kanomax

Features:

  • High accuracy of a U-tube manometer
  • Integral audible and visual alarm combined with 0 to 4 in. H20 for continuous monitoring
  • 2 contact switches for 0 volt and 110VAC (except S-version)
  • Adjustable set point for the static velocity or differential pressure at which the EKM1000 is required to switch
  • Selectable manual or automatic alarm reset
  • Complete installation kit and connection tubes
  • CENELEC and VDE approved

Applications:

  • May be used in any air-moving system where it is important to know and indicate changes in Positive, Negative, Differential Pressures: Over or under pressure,static pressure, velocity pressure etc.
  • Filter monitoring
  • Flowhoods and fume exhausts
  • Ventilation systems
  • Fan-operation signaling
Model EKM1000, EKM1000S
Range 0 to 4 in. H20 (0 to 6 in. optional)
Resolution .01 in. wg
Power Supply 110 VAC
Contact Rating 10 amp max and 0.5 amp peak current
Dimension 8.25 x 4 x 1.25 in.
