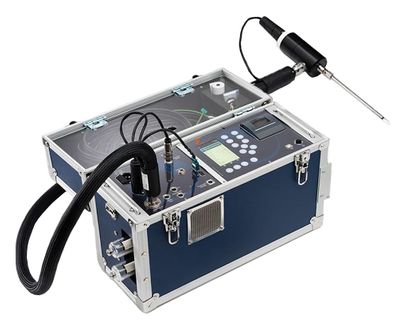

E9000-OCN-0-12 E9000 Transportable Emissions Analyzer by E Instruments

The E9000 is an advanced transportable emissions analyzer that is a complete, portable tool for EPA compliance–level emissions monitoring of boilers, engines, and other combustion equipment.

Accurate / Reliable / Robust / Fast

  • Up to NINE (9) Gas Sensors
  • NDIR Sensors Available
  • True NOx & Low NOx Measurements
  • Built-In Thermoelectric Chiller
  • Automatic Condensate Drain
  • Full Color Graphic Display
  • Upgraded Memory (16,000 Tests)

  • O2, CO, CO2, NO, NO2,SO2,CxHy (HC), H2S
  • Built-In Printer Non-Fading Paper
  • US EPA CTM-30 & CTM-034 Compliant
  • Heated Probe & Sample Head
  • PC Software with Bluetooth®
  • iOS and Android Mobile Applications

E9000 Plus Kit Include:

  • O2 (0-25%), CO (0-8000ppm), & NO/NOx (0-5000ppm) Gas Sensors
  • CO Dilution Auto-Range up to 10%
  • Stack Gas & Ambient Air Temperature Measurements
  • Draft & Differential Pressure Measurements
  • Efficiency, Loss, Excess Air, & CO2 Calculations
  • 12" (300mm) Probe, 1470F (800C) max, with 10' (3m) Dual Hose
  • Built-In Thermoelectic Chiller with Automatic Condensate Removal
  • Rechargeable Battery Pack with AC Charger
  • Large Full Color Graphic Display Screen
  • Built-In Printer (Non-Fading Paper)
  • Internal Memory for Data Storage (16,000 Tests)
  • PC Software Package with BlueTooth Adapter & USB Cable
  • Wireless BlueTooth Communications
  • Transportable Heavy Duty Aluminum Carrying Case
  • Ability to Upgrade to 9 Total Gas Sensors
  • Instruction Manual
  • Calibration Certificate
Parameter Sensor Range Resolution Accuracy
O2 Electrochemical 0 - 25% 0.1% ±0.2 % vol
CO (H2 compensated w/ built-in NOx filter) Electrochemical 0 - 8000 ppm 1 ppm ±8 ppm <200 ppm
±5 % rdg up to 2000 ppm
±10 % rdg for >2000 ppm
CO diluted Electrochemical 0.8 - 10.00 % 0.1 % ±10 % rdg
CO NDIR 0 - 15.00% 0.1 % ±3 % rdg
CO2 Calculated 0 - 99.9 % 0.1 %
CO2 NDIR 0 - 50.0 % 0.1 % ±3 % rdg <8 %
±5 % rdg <50 %
NO Electrochemical 0 - 5000 ppm 1 ppm ±5 ppm <100 ppm
±5 % rdg for >100 ppm
NO2 Electrochemical 0 - 1000 ppm 1 ppm ±5 ppm <100 ppm
±5 % rdg for >100 ppm
Low NO and/or Low NO2 Electrochemical 0 - 100.0 ppm 0.1 ppm ±1.5 ppm <40 ppm
±5 % rdg for <100ppm
NOx Calculated 0 - 5000 ppm 1 ppm
SO2 Electrochemical 0 - 5000 ppm 1 ppm ±5 ppm <100 ppm
±5 % rdg for >100 ppm
Low SO2 Electrochemical 0 - 100.0 ppm 0.1 ppm ±1.5 ppm <40 ppm
±5 % rdg for <100ppm
CxHy (HC) NDIR 0 - 50,000 ppm 1 ppm ±50 ppm <2,500 ppm
±2 % >2,500 ppm
H2S Electrochemical 0 - 500.0 ppm 0.1 ppm ±5 ppm <125 ppm
±4 % rdg for <500ppm
Tair Pt100 -4 to 248 °F
-20 to 120 °C		 0.1 °F
0.1 °C		 ±1 °F
±1 °C
Tgas Tc K -4 to 2280 °F
-20 to 1250 °C		 0.1 °F
0.1 °C		 ±2 °F
±2 °C
Differential temperature Calculated 4 to 2280 °F
-20 to 1250 °C		 0.1 °F
0.1 °C		 -
