E Instruments E500 Residential Combustion Efficiency Analyzer with O2, CO, CO2, NO, NOx, Heat Losses, Draft, Pressure, Excess Air, Temperature, Calculations for High Efficiency & Condensing Systems - Included Wireless Bluetooth Printer - E500-3P
Item #:
E500-3P
Brand:
E Instruments
Share this product:

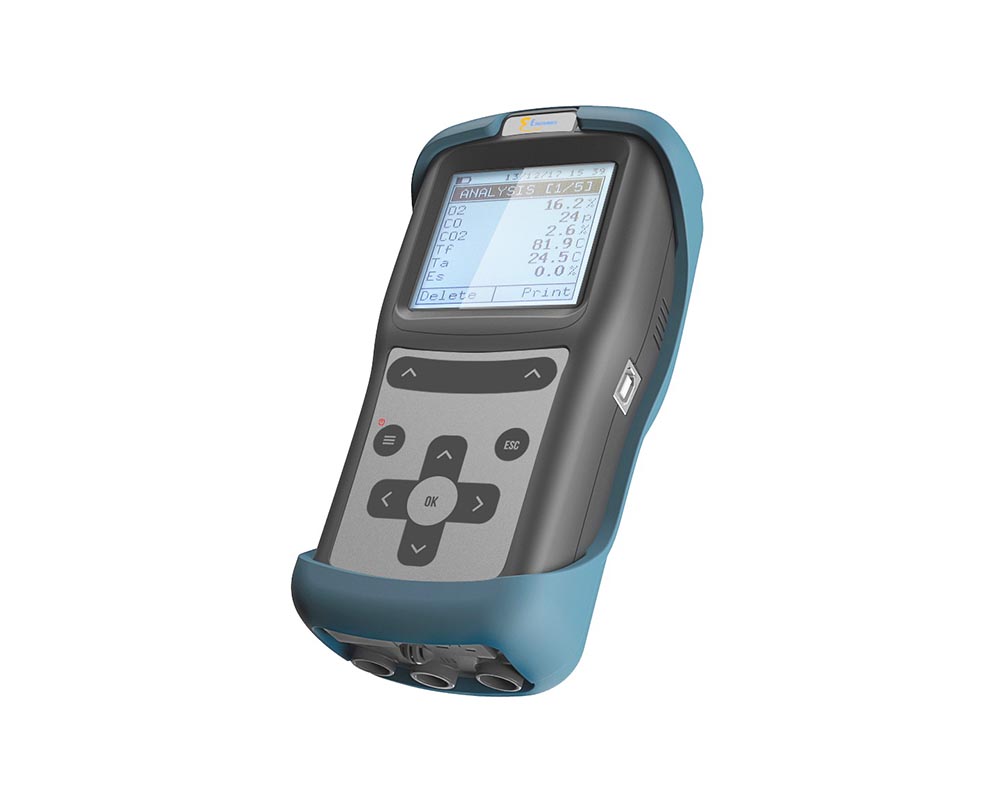

E500-3P E500 Residential Combustion Efficiency Analyzer with O2, CO, CO2, NO, NOx, Heat Losses, Draft, Pressure, Excess Air, Temperature, Calculations for High Efficiency & Condensing Systems - Included Wireless Bluetooth Printer by E Instruments
Accurate / Reliable / Economical / Easy
- 6 Tools-In-One
- CO Sensor with NOx Filter
- Flue and Ambient Temp
- Ambient CO Monitor
- Built-In Manometer
- Combustion Efficiency
- Draft & Pressure
- Smartphone Apps
- O2, CO, CO2, NO, NOx
- Economical & Easy to Use
- Long Lasting Rechargeable Battery & AC Charger
- iOS and Android Mobile Applications
- True High-Efficiency Calculations for All Condensing Systems
- Optional Wireless Bluetooth® Printer
Standard Probe Details:
- 12" (300mm) probe
- 1470 °F (800 °C) max
- 5' (1.5m) Dual Hose
All E500 Kits Include:
- O2, CO, CO2
- Upgradeable to NO/NOx
- Combustion Efficiency, Losses, Excess Air
- CO Air Free
- Draft Measurement
- Pressure Measurment
- Temperature Measurements
- Long Lasting Rechargeable Battery & AC Charger
- Gas Sampling Probe & Hose
- Water Trap with Filter Cartridge
- Magnetic Rubber Holster
- Operating Manual
- Calibration Certificate
- IR Interface
- ABS Carrying Case
- Outdoor Air Calculations for Condensing Systems
| Parameter | Sensor | Range | Resolution | Accuracy |
| O2 | Electrochemical | 0 - 25 % | 0.1 % | ±0.2 % vol |
| CO H2 compensated w/ built-in NOx filter | Electrochemical | 0 - 4000 ppm | 1 ppm | ±10 ppm <400 ppm ±5 % rdg up to 2000 ppm ±10 % rdg for >2000 ppm |
| CO2 | Calculated | 0 - 99.9 % | 0.1 % | - |
| NO | Electrochemical | 0 - 2000 ppm | 1 ppm | ±5 ppm <100 ppm ±5 % rdg up to 1000 ppm ±10 % rdg for >5000 ppm |
| NOx | Calculated | 0 - 2000 ppm | 1 ppm | - |
| Tair | Tc K | -4 to 248 °F -20 to 120 °C |
0.1 °F 0.1 °C |
±1 °F ±1 °C |
| Tgas | Tc K | -4 to 1472 °F -20 to 800 °C |
0.1 °F 0.1 °C |
±2 °F ±2 °C |
| Differential temperature | Calculated | -4 to 1472 °F -20 to 800 °C |
0.1 °F 0.1 °C |
- |
| Pressure/Draft | Semiconductor | -4 to 40 inH2 O -10 to 100 mbar |
0.001 inH2 O 0.01 mbar | ±1 % rdg. |
| Excess air | Calculated | 0 - 850 % | 1 % | - |
| Efficiency | Calculated | 0 - 100 % | 0.1 % | - |
| Warranty | 2 years: analyzer + sensors | |||
