  5. E Instruments E4500 Hand-Held Industrial Combustion Gas & Emissions Analyzer, O2 (0-25%), CO (0-8000ppm), LOW NO/NOx (0-100.0 ppm) LOW NO2 (0-100.0 ppm) - E4500-N-LOW

E Instruments E4500 Hand-Held Industrial Combustion Gas & Emissions Analyzer, O2 (0-25%), CO (0-8000ppm), LOW NO/NOx (0-100.0 ppm) LOW NO2 (0-100.0 ppm) - E4500-N-LOW

Item #:
E4500-N-LOW
Brand:
E Instruments
E Instruments E4500 Hand-Held Industrial Combustion Gas & Emissions Analyzer, O2 (0-25%), CO (0-8000ppm), LOW NO/NOx (0-100.0 ppm) LOW NO2 (0-100.0 ppm) - E4500-N-LOW
$4,465.00
Qty

Discontinued

Ask a Question
Send This Page to a Friend
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
E Instruments E4500 Hand-Held Industrial Combustion Gas & Emissions Analyzer, O2 (0-25%), CO (0-8000ppm), LOW NO/NOx (0-100.0 ppm) LOW NO2 (0-100.0 ppm) - E4500-N-LOW

E Instruments E4500 Hand-Held Industrial Combustion Gas & Emissions Analyzer, O2 (0-25%), CO (0-8000ppm), LOW NO/NOx (0-100.0 ppm) LOW NO2 (0-100.0...

$4,465.00

Discontinued

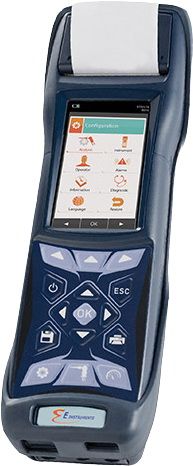

E4500-N-LOW E4500 Hand-Held Industrial Combustion Gas & Emissions Analyzer, O2 (0-25%), CO (0-8000ppm), LOW NO/NOx (0-100.0 ppm) LOW NO2 (0-100.0 ppm) by E Instruments

The E4500 is a hand-held industrial combustion gas and emissions analyzer that is a valuable tool designed for emissions monitoring and maintenance and tuning of combustion processes including boilers, burners, gas and diesel engines, turbines, furnaces, kilns, heaters, and laboratory analysis.

Accurate / Reliable / Robust / Fast

  • Up to FOUR (4) Gas Sensors
  • Automatic Data Logging
  • Total NOx Capable
  • Draft & Differential Pressure
  • Dilution Pump for CO Auto-Range Measurements up to 10%
  • Combustion Efficiency
  • PC Software with Bluetooth®

  • O2, CO, NO, NO2, SO2, CxHy (HC)
  • Built-In Printer Non-Fading Paper
  • Full Color Graphic Display
  • Field Replaceable Sensors
  • PC Software with Bluetooth®
  • iOS and Android Mobile Applications

Standard Probe & Hose:

  • 12" (300mm) Probe
  • 1470 °F (800 °C) max
  • 10' (3m) Dual Hose

Long Probe & Hose:

  • 30" (750mm) Probe
  • 1470 °F (800 °C) max
  • 10' (3m) Dual Hose

Long & High Temp Probe & Hose:

  • 40" (1m) Probe or 60'' (1.5m) Probe
  • 2190 °F (1200 °C) max
  • 10' (3m) Hose

Hose Extentions:

  • 10' (3m) Length Available

All E4500 Kits Include:

  • Built-In Printer
  • New iOS & Android App (Remote Display & QR Scanning)
  • CO2 % Calculation
  • Combustion Efficiency, Losses, & Excess Air Calculations
  • Draft & Differential Pressure
  • Temperature Measurements
  • Large Color Display
  • 2000 Test Internal Memory
  • Bluetooth Connectivity
  • Long Lasting Rechargeable Battery & AC Charger
  • Gas Sampling Probe & Hose
  • Water Trap with Filter Cartridge
  • Magnetic Rubber Holster
  • PC Software & USB Cable
  • Operating Manual
  • Calibration Certificate
  • ABS Hard Carrying Case
Parameter Sensor Range Resolution Accuracy
O2 Electrochemical 0 - 25 % 0.1 % ±0.2 % vol
CO H2 compensated w/ built-in NOx filter Electrochemical 0 - 8000 ppm 1 ppm ±8 ppm <200 ppm
±5 % rdg up to 2000 ppm
±10 % rdg for >2000 ppm
CO diluted Electrochemical 0.8 - 10.00 % 0.1 % ±10 % rdg
CO2 Calculated 0 - 99.9 % 0.1 %
NO Electrochemical 0 - 5000 ppm 1 ppm ±5 ppm <100 ppm
±5 % rdg for >100 ppm
NO2 Electrochemical 0 - 1000 ppm 1 ppm ±5 ppm <100 ppm
±5 % rdg for >100 ppm
Low NO and/or Low NO2 Electrochemical 0 - 100.0 ppm 0.1 ppm ±1.5 ppm <40 ppm
±5 % rdg for <100ppm
NOx Calculated 0 - 5000 ppm 1 ppm
SO2 Electrochemical 0 - 5000 ppm 1 ppm ±5 ppm <100 ppm
±5 % rdg for >100 ppm
Low SO2 Electrochemical 0 - 100.0 ppm 0.1 ppm ±1.5 ppm <40 ppm
±5 % rdg for <100ppm
CxHy (HC) Pellistor 0 - 5 % 0.01 % ±5 % full scale
Tair Pt100 -4 to 248 °F
-20 to 120 °C		 0.1 °F
0.1 °C		 ±1 °F
±1 °C
Tgas Tc K -4 to 2280 °F
-20 to 1250 °C		 0.1 °F
0.1 °C		 ±2 °F
±2 °C
Differential temperature Calculated -4 to 2280 °F
-20 to 1250 °C		 0.1 °F
0.1 °C		 -
Pressure/Draft Semiconductor -4 to 80 inH2O
-10 to 200 mbar		 0.001 inH2O
0.01 mbar		 ±1 % rdg.
Excess air Calculated 0 - 850 % 1 % -
Efficiency Calculated 0 - 100 % 0.1 % -
