Digi-Sense 1kV Handheld Insulation Tester - WD-20250-60
Item #:
DS-WD-20250-60
Brand:
Digi-Sense
Share this product:

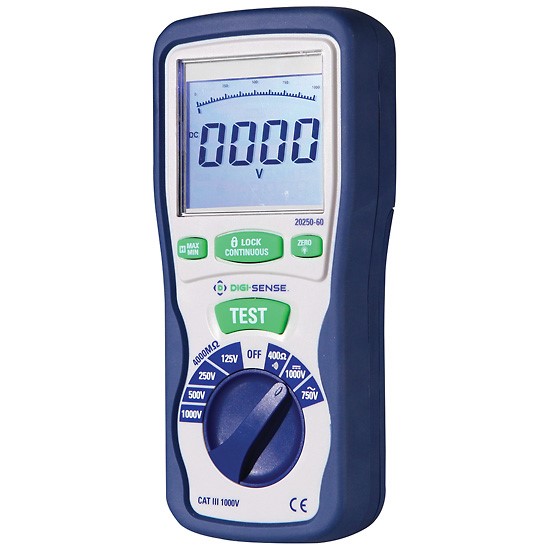

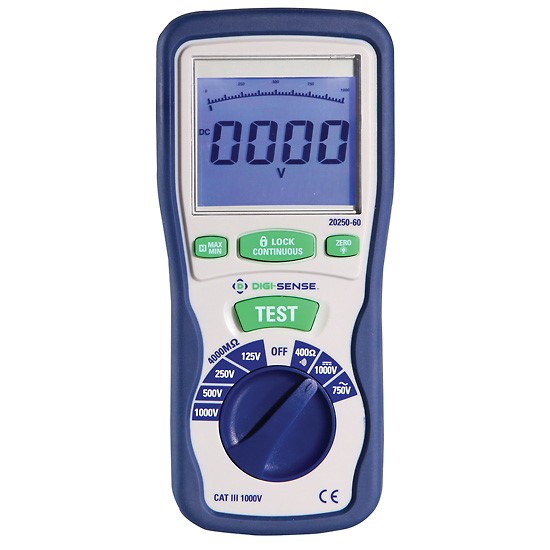

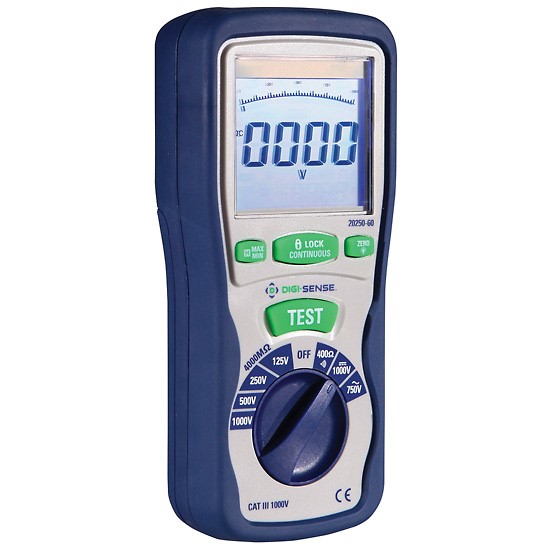

WD-20250-60 1kV Handheld Insulation Tester by Digi-Sense
Feel secure with multiple safety features
- Safely measures insulation resistance of electrical devices such as cables or motor coils, as well as providing a means of measuring AC/DC voltages and circuit continuity
- View measurements clearly on large dual-line backlit LCD, plus check trends on analog bar graph
- Autorange feature automatically selects optimal measuring range
- Live circuit detection prevents testing if voltage is present
- Data Hold, test lock function, and flip stand allow hands-free operation
- Automatic discharge of stored voltage for added protection
- Sturdy, double-molded housing with CAT III-1000 V safety rating

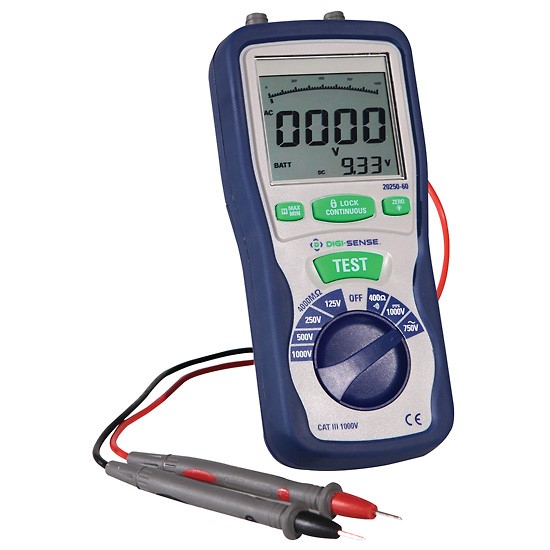

Includes
Test leads, plastic carrying case, and six AA batteries.
Insulation resistance | Range | 4, 40, 400, 4000 MΩ |
Resolution | 1 KΩ to 1 MΩ | |
Accuracy | ±2.0% ± 6 | |
AC voltage | Range | 750 V |
Max resolution | 1 V | |
Accuracy | ±1.2% ± 10 | |
DC voltage | Range | 1000 V |
Resolution | 1 V | |
Accuracy | ±0.8% ±3 | |
Resistance | Range | 40 to 400 Ω |
Resolution | 0.01 to 0.1 Ω | |
Accuracy | ±1.5% ±6 | |
Test voltage and current | 125 V, 250 V, 500 V, 1000 V, and 1 mA nominal | |
Continuity test | Active sound level: ≤40 Ω, Test current: ≤200 mA | |
Display | 4000-count dual-line LCD, with analog bar graph and backlight | |
Dimensions (L x W x H) | 7 7/8" x 3 5/8" x 2" (20 x 9.2 x 5 cm) | |
Power | Six AA batteries (included) |
