Digi-Sense Precalibrated Clamp Meter; 400 A AC/DC - WD-20250-56
Item #:
DS-WD-20250-56
Brand:
Digi-Sense
Share this product:

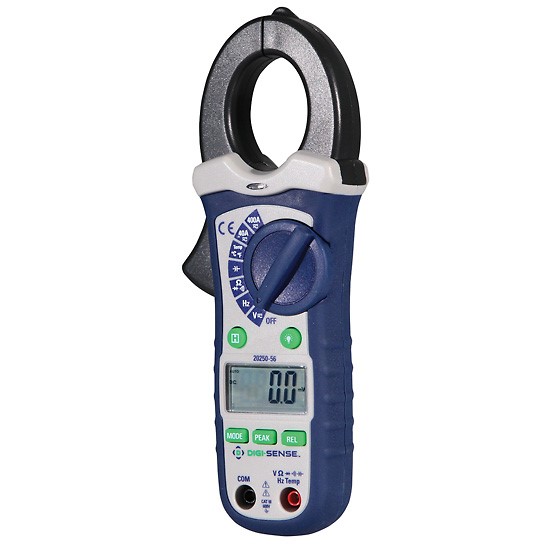

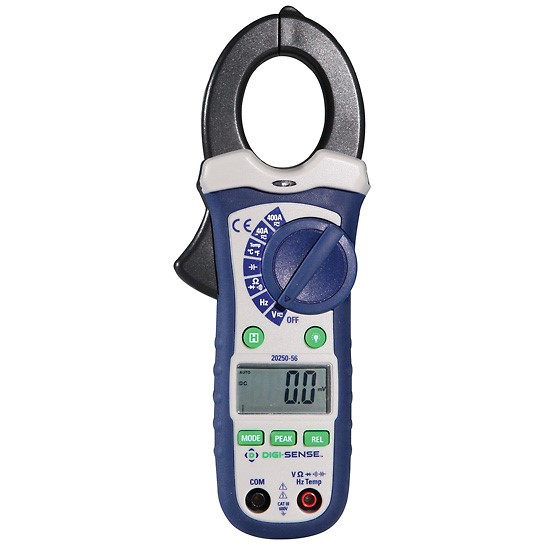

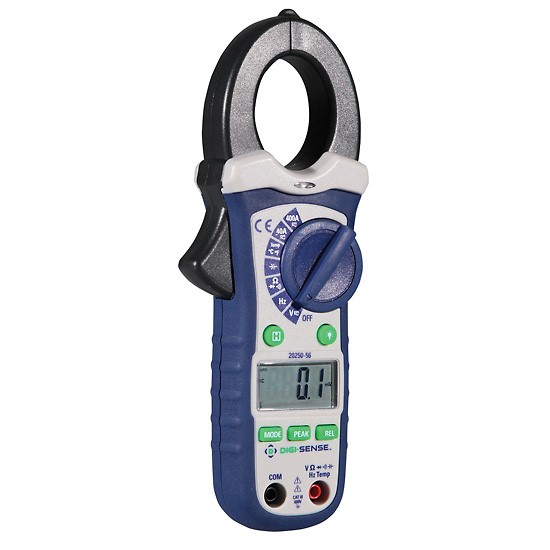

WD-20250-56 Precalibrated Clamp Meter; 400 A AC/DC by Digi-Sense
Reliably detect and measure the power quality running to your equipment to quickly find hidden issues. These meters feature durable, double-molded plastic housing and jaw.
Features
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards
- Large backlit display provides easy-to-read measurements
- Autorange feature automatically selects optimal measuring range
- Low-battery indicator alert for when it’s time for a fresh battery
400 A AC Clamp Meters (20250-55, -56)
- Diode testing, continuity check with a buzzer sound at 50 ?, and a measurement rate of 2 readings per second
- Built-in noncontact AC voltage detector
- CAT III-1000 V safety rating
- Improved measurement ease with data Hold function
- Model 20250-56 also measures DC current and capacitance, and features a peak Hold function that captures the peak AC current or voltage reading
1000 A AC Clamp Meters (20250-57, -58)
- Improve accuracy with True RMS check for load current and AC voltage, as well as continuity of contacts, fuses, circuits, and switches
- See power variations on analog bar graph display
- CAT III-600 V safety rating
- Model 20250-58 also features DC current measurement and True RMS for more accurate current readings
Applications
- Electrical
- Industrial
- Laboratory
- HVAC
- R & D
Includes

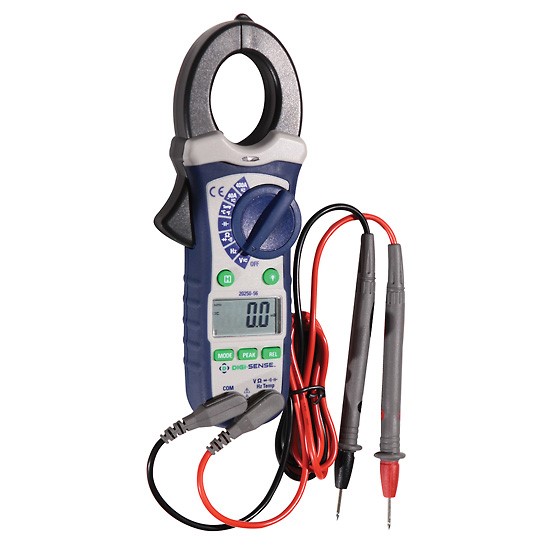

Test leads, temperature probe (models 20250-55, -56, and -58), carrying case, 9 V battery, and NIST-traceable calibration report supplied by InnoCal.
Description | 400 A AC clamp meter |
400 A AC/DC clamp meter |
1000 A AC clamp meter |
1000 A AC/DC clamp meter |
Catalog number | MW-20250-55 |
MW-20250-56 |
MW-20250-57 |
MW-20250-58 |
AC current | 400 A |
400 A (True RMS) |
1000 A |
1000 A (True RMS) |
DC current | - |
400 A |
- |
1000 A |
AC voltage (True RMS) | 600 V |
600 V |
750 V |
750 V |
DC voltage | 600 V |
600 V |
1000 V |
800 V |
Resistance | 40 MΩ |
40 MΩ |
60 MΩ |
60 MΩ |
Capacitance | - |
4 mF |
4000 μF |
100 μF |
Frequency | 10 kHz |
100 kHz |
10 MHz |
10 MHz |
Duty cycle | Yes |
- |
Yes |
Yes |
Continuity | Yes, audible |
Yes, audible |
Yes, audible |
Yes, audible |
Diode | Yes |
Yes |
Yes |
Yes |
Temperature (type K thermocouple) | -4 to 1400°F (-20 to 760°C) |
- |
-4 to 1832°F (-20 to 1000°C) |
|
Display | 4000-count LCD |
6000-count LCD, with backlight and analog bar graph |
||
Dimensions (W x H x D) | 7 3/4" x 2 3/4" x 1 9/16" (19.7 x 7 x 4 cm) |
8 7/8" x 3 3/16" x 1 11/16" (22.6 x 8 x 4.3 cm) |
||
Power | One 9 V battery (included) |
One 9 V battery (included) |
