Digi-Sense Three-in-One Digital Multimeter with NIST-Traceable Calibration - WD-20250-52
Item #:
DS-WD-20250-52
Brand:
Digi-Sense
Share this product:
WD-20250-52 Three-in-One Digital Multimeter with NIST-Traceable Calibration by Digi-Sense
Get quality instruments that deliver consistent, reliable measurements without depleting your budget. These durable, handheld multimeters are an economical alternative to higher-priced instruments on the market today.
Features
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards
- Autoranging on select models, automatically selects the optimal measuring range for maximum resolution
- Stay safe and prevent damage with overload protection
- Increased durability with double-molded plastic housing

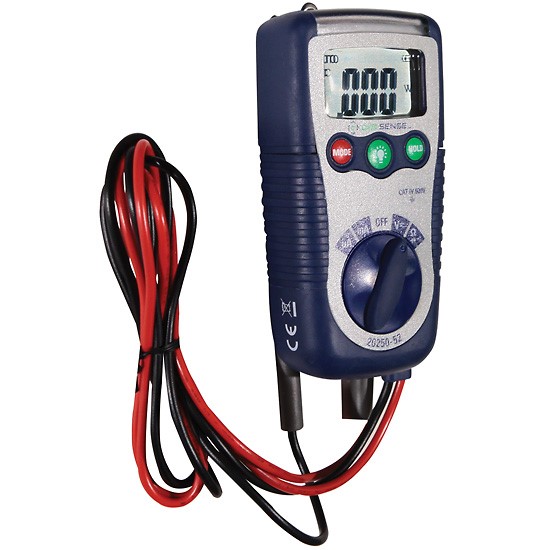

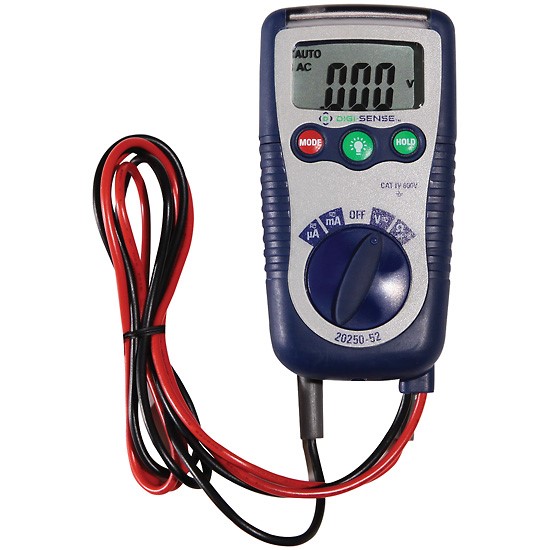

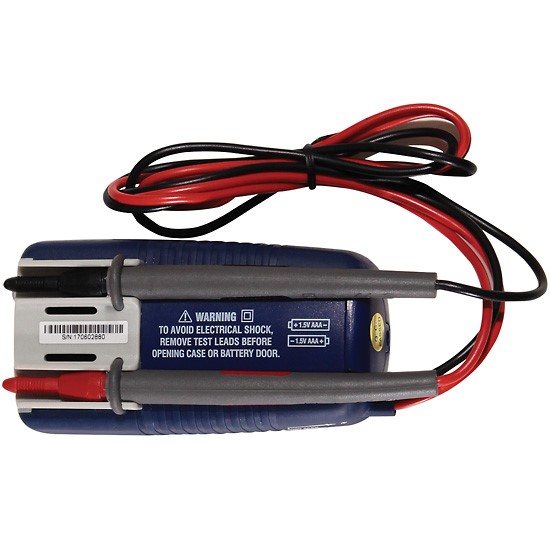

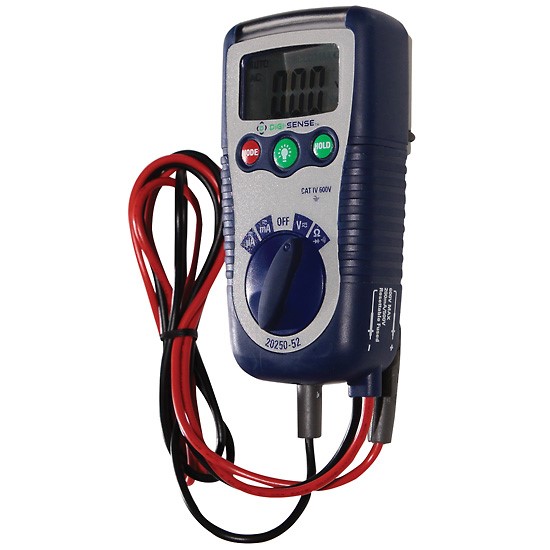

Three-in-One Digital Multimeter (20250-52)
- Three practical instruments in one: multimeter, noncontact voltage detector, and flashlight
- Permanently attached test leads so they don't get lost
- Diode check and continuity test included to check accuracy
Compact Digital Multimeters (20250-50, -51)
- CAT III-600 V designation for safety
- Available in manual ranging version
- Bright backlight display has 1.1" tall digits
- Model 20250-50 offers dedicated battery test function to check the quality of your 9 V and 1.5 V batteries
Industrial Digital Multimeters (20250-53, -54)
- CAT III-600 V and CAT III-1000 V ratings for safety
- IP67 rating for dustproof and waterproof protection
- Flashing red LED alerts you to presence of live voltage
- Model 20250-54 has True RMS for improved reading accuracy and an analog bar graph for viewing trends
Applications
- Electrical
- Industrial
- Laboratory
- HVAC
- R & D
Includes
Test leads (models 20250-50, -51, -52), carrying case (models 20250-50, -51) batteries, and NIST-traceable calibration report with data supplied by InnoCal.
Description | 3-in-1 DMM |
Manual ranging DMM |
Auto ranging DMM |
Industrial DMM |
True RMS industrial DMM |
Catalog number | MW-20250-52 |
MW-20250-50 |
MW-20250-51 |
MW-20250-53 |
MW-20250-54 |
DC voltage | 600 V |
600 V |
600 V |
1000 V |
1000 V |
AC voltage | 600 V |
600 V |
600 V |
1000 V |
1000 V |
DC current | 200 mA |
10 A |
10 A |
10 A |
10 A |
AC current | 200.0 mA |
- |
10 A |
10 A |
10 A |
Resistance | 20.00 MΩ |
2.000 MΩ |
40.00 MΩ |
40.00 MΩ |
40.00 MΩ |
Continuity | Yes, audible |
Yes, audible |
Yes, audible |
Yes, audible |
Yes, audible |
Temperature (type K thermocouple | - |
- |
-4 to 1400°F (-20 to 760°C) |
- |
-4 to 1400°F (-20 to 760°C) |
Capacitance | - |
- |
200.0 μF |
40.00 mF |
40.00 mF |
Frequency | - |
- |
9.999 MHz |
10.00 MHz |
10.00 MHz |
Duty cycle | - |
- |
0.1 to 99.9% |
0.1 to 99.9% |
- |
Diode test | Yes |
Yes |
Yes |
Yes |
Yes |
Display | 2000-count LCD |
2000-count LCD |
4000-count LCD |
4000-count LCD |
4000-count LCD with analog bar graph |
Power | Two AAA batteries (included) |
One 9 V battery (included) |
One 9 V battery (included) |
||
Dimensions (L x W x H) | 4" x 23/16" x 15/16" (10.4 x 5.5 x 3.3 cm) |
57/8" x 23/4" x 17/8" (15 x 7 x 4.8 cm) |
73/16" x 31/4" x 23/16" (18.2 x 8.2 x 5.5 cm) |
