Digi-Sense Temperature/RH Touch Screen Recorder with NIST-Traceable Calibration - WD-20250-40
Item #:
DS-WD-20250-40
Brand:
Digi-Sense
Share this product:
WD-20250-40 Temperature/RH Touch Screen Recorder with NIST-Traceable Calibration by Digi-Sense

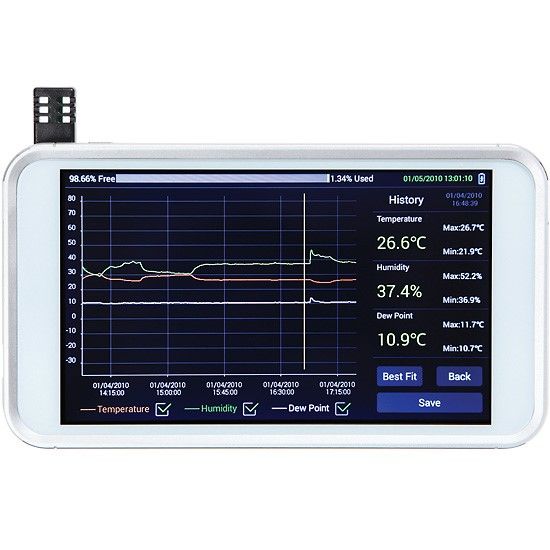

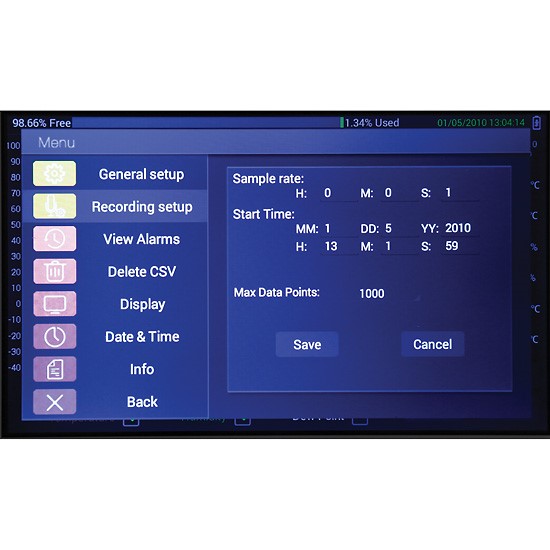

Accurately measure and log temperature, relative humidity, and dew point conditions with this tabletbased instrument. An intuitive touch-screen display makes this recorder easy to use and view. Measured values are simultaneously displayed both graphically and digitally on a high-resolution, color display. Simply touch to program sample frequency, sample size, alarm settings, start mode, and units of measure. Use this invaluable tool in real-time mode or set it to start logging at a future time.
- Get accurate, reliable measurements with included NIST-traceable calibration
- Operation is simple right out of the box
- Resident operating software self-boots by pushing the on/off buttons—no installation necessary
- Quickly download data in .csv format to your computer via included USB cable

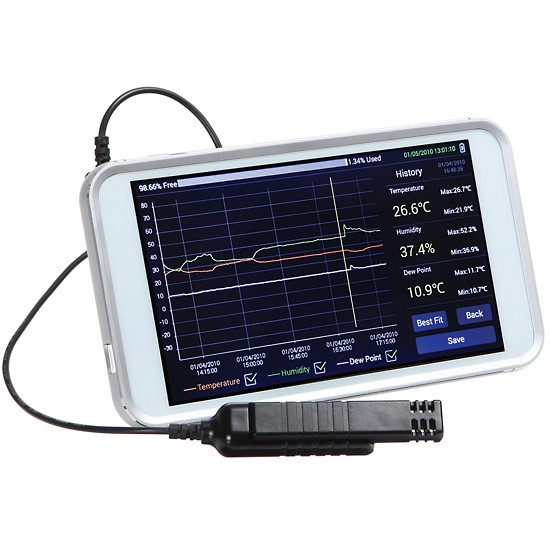

- Sensor plugs directly into the back of the tablet for local use, or position sensor remotely using the included 6-ft extension cable
- Link additional extension cables, sold separately, to extend the sensor up to 18 feet from the instrument

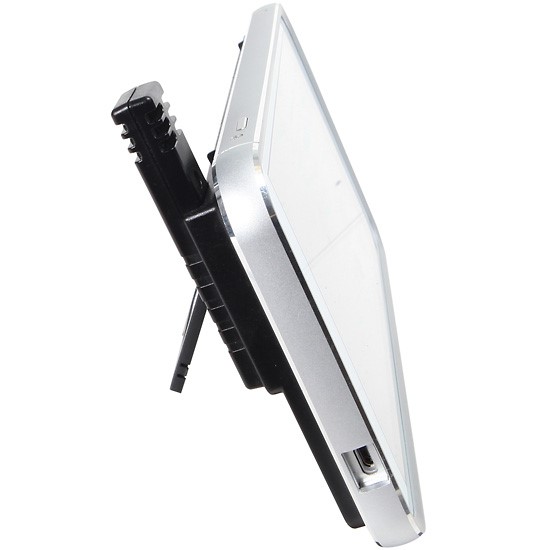

- Convenient wall-mount or desktop operation
Applications
- Food, pharmaceutical, and chemical processing and storage
- Controlled environments
- Refrigerators and freezers
- Laboratories
- Warehouses and storage facilities
- Museums
- Libraries
- Cleanrooms
- Greenhouses
Includes

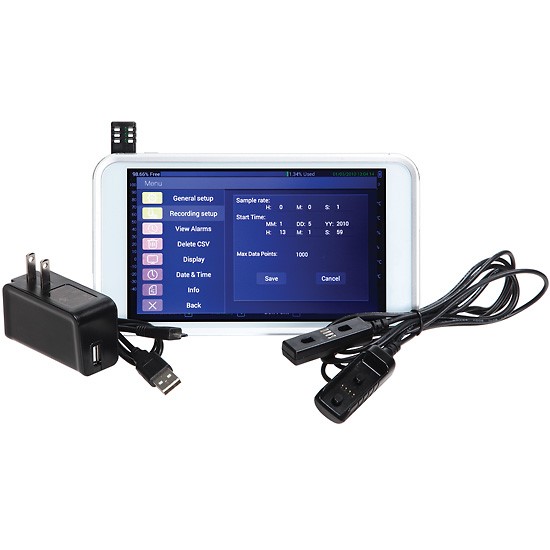

Tablet with built-in stand, temperature/RH sensor, 6-ft (1.8-m) sensor extension cable, USB cable, wall-mounting bracket, power supply, and NIST-traceable calibration with data supplied by InnoCal.
Parameters | Range |
Resolution |
Accuracy |
Temperature | 14 to 176°F (-10 to 80°C) |
0.1°F (0.1°C) |
±0.9°F (0.5°C) |
Humidity | 0 to 100% RH, noncondensing |
0.1% |
±2.0% at 25°C, 20% to 80% RH; ±2.5% for remaining |
Memory | 8GB |
||
Sampling rate | 1 second to 24 hours |
||
Display | 6" x 31/2" (15.2 x 8.9 cm) color LCD, with 1024 x 600 resolution |
||
Dimensions (W x H x D) | 75/8" x 41/4" x 5/8" (19.3 x 10.8 x 1.6 cm) |
||
Power | 110 VAC; 2500 mAH rechargeable battery backup |
